All stock codes associated to this product
B760M-A WIFI, B760MAWIFI, MBMB760MAWIFI, MBM-B760M-AWIFI, PROB760MAWIFIDDR5, PRO B760M-A WIFI DDR5, 5737101, 4711377059572
Performance |
---|
Component for | PC |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B760 |
Motherboard form factor | micro ATX |
Audio output channels | 7.1 channels |
Supported processor sockets | LGA 1700 |
RAID levels | 0, 1, 5, 10 |
Windows operating systems supported | Windows 10, Windows 11 |
Processor |
---|
Processor manufacturer | Intel |
Compatible processor series | Intel ® Celeron ®, Intel ® Pentium ® Gold |
Processor socket | LGA 1700 |
Supported processor sockets | LGA 1700 |
Memory |
---|
Number of memory slots | 4 |
Supported memory types | DDR5-SDRAM |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Non-ECC | Yes |
Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
Maximum internal memory | 192 GB |
Supported memory clock speed (max) | 6800 MHz |
Storage controllers |
---|
Supported storage drive interfaces | M.2, SATA |
RAID levels | 0, 1, 5, 10 |
RAID support | Yes |
Internal I/O |
---|
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Front panel connector | Yes |
Supported storage drive interfaces | M.2, SATA |
USB 2.0 connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
TPM connector | Yes |
Number of SATA III connectors | 4 |
Front panel audio connector | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
RGB LED pin header | Yes |

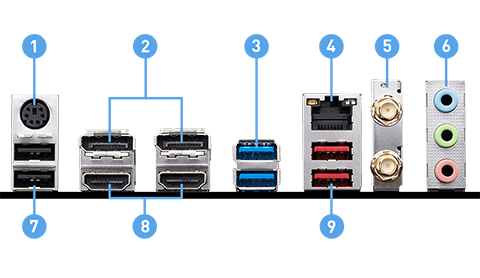

Rear panel I/O ports |
---|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 2 |
DisplayPorts quantity | 2 |
Network |
---|
Ethernet LAN | Yes |
Wi-Fi | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
LAN controller | Realtek RTL8125-BG |
Ethernet interface type | 2.5 Gigabit Ethernet |
Bluetooth | Yes |
Bluetooth version | 5.3 |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Features |
---|
Power source type | ATX |
Component for | PC |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B760 |
Motherboard form factor | micro ATX |
Audio output channels | 7.1 channels |
Supported processor sockets | LGA 1700 |
Windows operating systems supported | Windows 10, Windows 11 |
Audio chip | Realtek ALC897 |
Expansion slots |
---|
PCI Express x1 (Gen 3.x) slots | 2 |
Power |
---|
Power source type | ATX |
Weight & dimensions |
---|
Width | 243.8 mm |
Depth | 243.8 mm |
PRO B790M-A WIFI PRO B760M-A WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
PRO SERIES BUSINESS ELEGANCE The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
HARDWARE COOLING COOLING OVERVIEW Extended Heatsink Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
Heavy Plated VRM Heatsink The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
FULLY FAN CONTROL CONTROL IN ONE CLICK MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
FROZR AI COOLING Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
AUTO DETECT YOUR FAN MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
WATER COOLING OPTIMIZED FOR WATER COOLING Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
POWER SOLUTION STRUCTURE 12+1+1 POWER DESIGN Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI PRO Series motherboards are ready to sustain heavy daily work.
DIGITALL POWER DESIGN A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.
DOUBLE POWER CONNECTORS The 8-pin and 4-pin connectors deliver adequate power even for an overclocked multi-core CPU.
CORE BOOST Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.
PCB DESIGN OPTIMIZED PCB SOLUTION The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
DIY FRIENDLY DRIVER UTILITY INSTALLER Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.
MORE FOR DIY FRIENDLY WINDOWS 11 CERTIFIED With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.
XL CLIP The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
EZ DEBUG LED Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
KEEP OUT ZONE MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
DOUBLE ESD PROTECTION Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
PERFORMANCE EXPANSION LIGHTNING GEN 4 PCI-E LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED, HEAVY SOLDERED CONNECTIONS Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
STORAGE FAST AND FUTURE-READY STORAGE MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
USB USB FRONT TYPE-C MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
MEMORY DDR5 LATEST DDR5 MEMORY WITH SMT SLOT A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance. The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
BIOS & SOFTWARE CLICK BIOS 5 Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records! - XMP Choose from a preset XMP profile and automatically overclock compatible DDR memory. - VMD (VOLUME MANAGEMENT DEVICE) Enable direct control and management of NVMe SSDs from the PCIe bus without additional hardware adaptors. - M-FLASH Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility. - HARDWARE MONITOR Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage. - MEMORY TRY IT Get extreme speed out of your system memory and get more performance. - SEARCH & FAVORITES A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.
MSI CENTER MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities. Mystic Light Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks! True Color Optimized monitor’s brightness and color in several modes for different situation, you can also customize by yourself. User Scenario One click for setting your computer, even customize own profile as your preference. Hardware Monitoring Get immediate access to your critical hardware information in real-time. Profile Setting Tune select motherboard settings in the OC Setting menu, where options to boost core performance and optimize system cooling are presented in an intuitive interface. Fan Center Assume complete control of your fans with Fan Center. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically. System Diagnosis Restore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.
AIDA64 EXCLUSIVE UI OF AIDA64 EXTREME MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
SYSTEM SAFETY All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use. SECURE BOOT Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.
RESIZABLE BAR Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.
CONNECTIVITY AUDIO AUDIO BOOST - HIGH DEFINITION AUDIO PROCESSOR - HIGH QUALITY AUDIO CAPACITORS - HIGH QUALITY AUDIO JACKS - ISOLATED AUDIO SIGNAL - DE-POP PROTECTION
MYSTIC LIGHT SYNCHRONIZE EXTEND YOUR RGB EXPERIENCE WITH EASE Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller. A-RAINBOW V2 Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices. RGB Supports 12V RGB devices. AMBIENT LINK Synchronize lighting theme with compatible lighting devices.
NETWORKING 2.5G LAN & WI-FI 6E HIGH-BANDWIDTH AND LOW-LATENCY NETWORK MSI's premium network solution provides incredible data transfer speed for demanding users. - Wi-Fi 6E - Bluetooth 5.3 - 2.5G LAN
