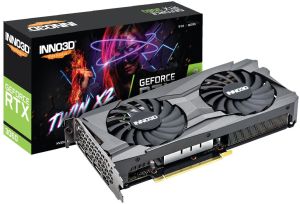

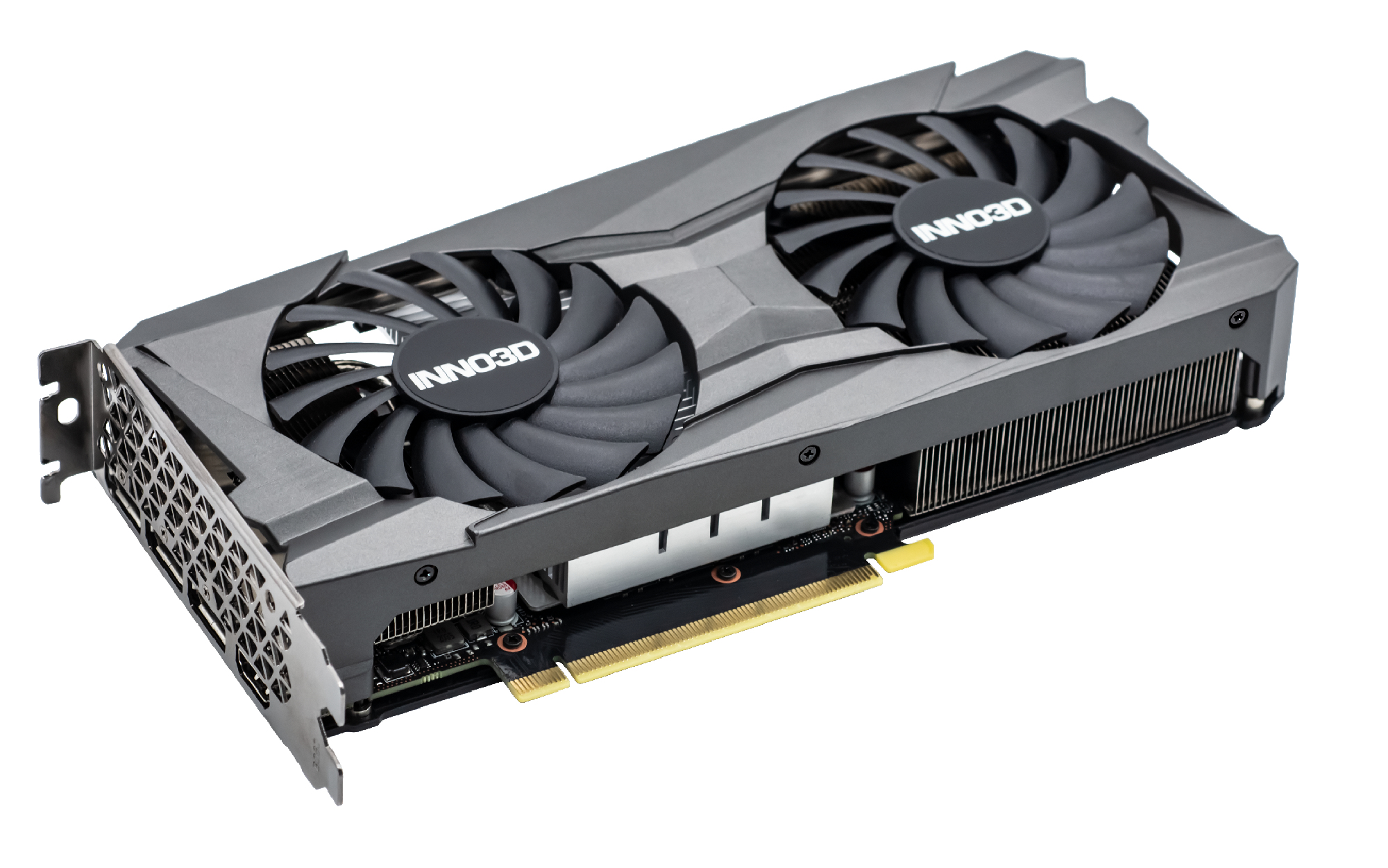

Inno3D GeForce RTX 3060 Twin X2 NVIDIA 8 GB GDDR6, 8 GB, GDDR6, 128-bit, 1777 MHz boost clock, PCI-E 4.0 x16, HDMI, 3x DisplayPort, 1x 8-pin

IMG 1 of 1
Our Price:
$480.70
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
533021
(?) Brand:
Inno3D
Manuf No:
N30602-08D6-11902130
N3060208D611902130
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
24/7/2023
Details Files Images & Video
All stock codes associated to this product
N30602-08D6-11902130, VCI-RTX3060-8TWINX2N, VCIRTX30608TWINX2N, N3060208D611902130, 0835168003019, 835168003019

Inno3D GeForce RTX 3060 Twin X2 NVIDIA 8 GB GDDR6

Manufacturer: Inno3D
Category: Computer Components
Sub-Category: Graphics Cards
SKU: N30602-08D6-11902130
EAN: 0835168003019 4895223102992

Description

N30602-08D6-11902130

Technical Spec.

GPU Engine Specs:
CUDA Cores 3584
Boost Clock (MHz) 1777
Base Clock(MHz) 1320
Thermal and Power Spec:
Minimum System Power Requirement (W) 550
Supplementary Power Connectors 8-pin
Memory Specs:
Memory Clock 15Gbps
Standard Memory Config 8GB
Memory Interface GDDR6
Memory Interface Width 128-bit
Memory Bandwidth (GB/sec) 240
Feature Support:
Real-Time Ray Tracing Yes
Ray Tracing Cores 2nd Generation
Tensor Cores 3rd Generation
NVIDIA Architecture Ampere
Microsoft DirectX 12 Ultimate
NVIDIA DLSS Yes
PCI Express Gen 4 Yes
NVIDIA GeForce Experience Yes
NVIDIA Ansel Yes
NVIDIA FreeStyle Yes
Bus Support PCI-E 4.0 X16
NVIDIA ShadowPlay Yes
NVIDIA Highlights Yes
OS Certification Windows 10, Linux, FreeBSDx86
NVIDIA G-SYNCâ„¢-Ready Yes
Lighting module -
Game Ready Drivers Yes
NVIDIA Studio Drivers Yes
NVIDIA GPU Boostâ„¢ Yes
Vulkan API Yes
OpenGL 4.6
HDMI 2.1 Yes
DisplayPort 1.4a Yes
NVIDIA Encoder 7th Generation
NVIDIA Decoder 5th Generation
Accessories:
Installation Guide Yes
Power Guide Yes
Graphics Card Dimensions:
Length 240mm
Height 120mm
Width 2-slot
Display Support:
Multi Monitor Yes
Maxmium Digital Resolution 7680x4320
HDCP 2.3
Standard Display Connectors HDMI 2.1, 3x DisplayPort 1.4a

Specifications

Processor
Graphics processorGeForce RTX 3060
Maximum resolution7680 x 4320 pixels
Graphics processor familyNVIDIA
CUDAYes
Processor frequency1320 MHz
Processor boost clock speed1777 MHz
Parallel processing technology supportNot supported
CUDA cores3584
Memory
Discrete graphics card memory8 GB
Graphics card memory typeGDDR6
Memory bus128 bit
Data transfer rate15 Gbit/s
Memory bandwidth (max)240 GB/s
Ports & interfaces
Interface typePCI Express x16 4.0
HDMI ports quantity1
DisplayPorts quantity3
HDMI version2.1
DisplayPort version1.4a
Performance
NVIDIA G-SYNCYes
NVIDIA AnselYes
TV tuner integratedNo
DirectX version12 Ultimate
OpenGL version4.6
HDCPYes
Dual Link DVINo
HDCP version2.3
Design
Number of fans2 fan(s)
Cooling typeActive
Number of slots2
Product colourBlack
Power
Minimum system power supply550 W
Supplementary power connectors1x 8-pin
System requirements
Windows operating systems supportedWindows 10
Linux operating systems supportedYes
Other operating systems supportedFreeBSD
Packaging content
Quick installation guideYes
Weight & dimensions
Height120 mm
Depth240 mm
Packaging data
Package typeBox

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
