IMG 1 of 1
Our Price:
$170.75
RRP:
$254.00
You Save:
$83.25
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days

Part Number:
534060
(?) Brand:
Manuf No:
CP-9020262-AU
CP9020262AU
Shipping Weight:
2.78 KG (Includes product packaging)
Estimate Shipping
Date Added:
All stock codes associated to this product
CP-9020262-AU, CP9020262AU, PSCPRM750E23, PSCP-RM750E-23, 0840006699293, II357108, 840006699293

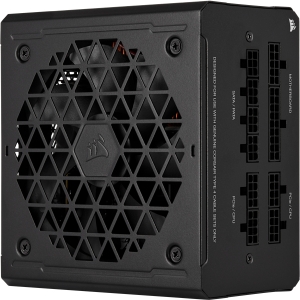

Corsair RM750e power supply unit 750 W 24-pin ATX Black

Manufacturer: Corsair
Category: Batteries & Power Supplies
Sub-Category: Power Supply Units
SKU: CP-9020262-AU
EAN: 0840006699293

Description

FULLY MODULAR CABLING Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs. ATX 3.0 CERTIFIED The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.0 compliance. PCIe 5.0 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA GeForce RTX 40 Series. LOW NOISE OPERATION IN A COMPACT SIZE Shorter than the traditional power supply, the RMe offers more cable space behind your PSU. Includes Zero RPM Fan Mode for near-silent operation at lower loads. TECHNOLOGY AND RELIABILITY For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors. With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency. 80 PLUS GOLD-CERTIFIED Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures. WORLD-CLASS SUPPORT Our award-winning service means you can enjoy your gear worry-free.

Specifications

Design
80 PLUS certification80 PLUS Gold
Product colourBlack
Power
Total power750 W
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
Input current5 A
Maximum input current (@110V)10 A
Combined power (+3.3V)110 W
Combined power (+12V)750 W
Combined power (+5V)110 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)62.5 A
Max output current (+5V)20 A
Max output current (+5Vsb)3 A
Ports & interfaces
SATA power cable length115,455 mm
PCI Express power cable length75 cm
Motherboard power connector24-pin ATX
Number of SATA power connectors7
Number of PATA power connectors4
EPS power connector (8-pin)Yes
PCI Express power connectors (6+2 pin)2
PCI Express power connectors (8-pin)1
ATX Power connector (24-pin)Yes
PCI Express connectorYes
Cabling typeModular
Performance
80 PLUS certification80 PLUS Gold
PurposePC
ATX version3.0
Mean time between failures (MTBF)100000 h
Weight & dimensions
Width140 mm
Depth150 mm
Weight1.48 kg
Technical details
Warranty period7 year(s)
Certificates
80 PLUS certification80 PLUS Gold

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Corsair) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
