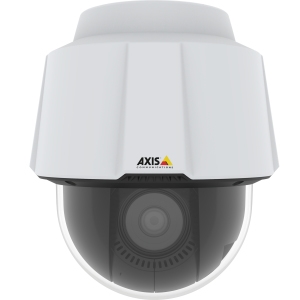

AXIS P5655-E HD Network Camera - Colour - Dome - White - MJPEG, H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC)

IMG 1 of 1
Our Price:
$3,826.05
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
535528
(?) Brand:
AXIS
Manuf No:
01681-001
01681001
Shipping Weight:
3.25 KG (Includes product packaging)
Estimate Shipping
Date Added:
27/10/2023
Details Files Finance Images & Video
All stock codes associated to this product
01681001, 01681-001, 4507953, 7331021066410

Axis 01681-001 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Manufacturer: Axis
Category: Home
Sub-Category: Security Cameras
SKU: 01681-001
EAN: 7331021066410

Description

AXIS P5655-E PTZ Network Camera is a cost-effective, high performance PTZ with HDTV 1080p and 32x optical zoom. It features Forensic WDR for clarity even when there’s both dark and light areas in the scene. And, Lightfinder 2.0 to capture low-light images with more saturated colors and sharper images of moving objects. It offers electronic image stabilization and enhanced security features including signed firmware and secure boot. With IP66, NEMA 4X and IK10 ratings it’s resistant to both harsh weather conditions and impacts. Plus, you get two-way audio, I/O ports and extended capabilities for advanced analytics.

Specifications

Performance
Preset pointsYes
Infrared (IR) cut-off filterYes
Fog proofYes
TypeIP security camera
Connectivity technologyWired
PTZ controlYes
Placement supportedIndoor & outdoor
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationNEMA 4X, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 ClassIEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-30, EC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, NIST SP500-267
Design
WeatherproofYes
IK codeIK10
Fog proofYes
Form factorDome
Product colourBlack, White
Mounting typeCeiling/wall
Protection featuresShock resistant
International Protection (IP) codeIP66
Housing materialAluminium
Camera
Minimum illumination0.02 lx
Tilt angle range0 - 180°
Tilt speed350 °/sec
Pan range0 - 360°
Pan speed350 °/sec
Camera shutter speed1/66500 - 2 s
Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, horizontal58.7°
Lens viewing angle, vertical35.7°
Progressive scanYes
Image sensor
Sensor typeCMOS
Progressive scanYes
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Number of sensors1
Lens system
Number of lenses1
Maximum aperture number4
Auto focusYes
Minimum aperture number1.4
Zoom capabilityYes
Optical zoom32x
Digital zoom12x
Focal length range4.3 - 137.6 mm
Video
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Text caption overlayYes
Privacy maskingYes
Image stabilizerYes
Bit rate controlVariable Bit Rate (VBR)
Maximum resolution1920 x 1080 pixels
Video formats supportedAVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions320 x 180, 1920 x 1080 (HD 1080)
Supported video modes1080p
Frame rate60 fps
Video streamingYes
Audio
Sample rate48 kHz
Audio system2-way
Audio formats supportedADPCM, LC-AAC, LPCM, PCM
Audio detectionYes
Network
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3at
Streaming methodMulticast
Ethernet LANYes
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP, CDP
Storage
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC
Internal memory1024 MB
Flash memory512 MB
Ports & interfaces
Microphone inYes
Ethernet LAN (RJ-45) ports1
DC-in jackYes
Connectivity technologyWired
Security
Video motion detectionYes
IP address filteringYes
HTTPS encryptionYes
Password protectionYes
Power
Power source typeDC, PoE
Power consumption (typical)10.5 W
Power consumption (max)19 W
DC-in jackYes
Certificates
CertificationNEMA 4X, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 ClassIEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-30, EC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, NIST SP500-267
Operational conditions
Operating temperature (T-T)-30 - 55 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 100%
Weight & dimensions
Width188 mm
Depth188 mm
Height217 mm
Weight2.5 kg
Packaging content
Number of cameras1
Mounting kitYes
ManualYes
Logistics data
Harmonized System (HS) code85258900
