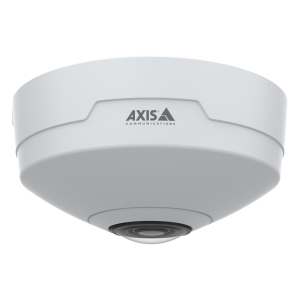

02637-001 | AXIS M4328-P Dome IP security camera Indoor 2992 x 2992

Great video performance

AXIS M4328-P offers a complete overview with outstanding sharpness, great detail, and no blind spots. This 12 MP camera delivers 360 or 180 panoramic overviews. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. With its stereoscopic lens and digital PTZ, you can choose what to see in the view areas and at what zoom level in up to four areas simultaneously. Furthermore, built on ARTPEC-8, the latest Axis system-on-chip (SoC), this panoramic camera enables improved image processing and great image quality.

Deep learning on the edge

This indoor fisheye camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before on the edge. Additionally, it delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, its possible to detect and classify moving objects in a scene all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.

Great look and ease of installation

This discreet, ultra-compact, affordable camera is quick and easy to install. With accessory casings available, it can also be repainted to blend in with any surroundings. Its delivered factory-focused. And, thanks to digital roll functionality, you can remotely adjust the rotation of the camera overview no need to do it manually on the camera. Furthermore, Axis Zipstream, with support for H.264 and H.265, significantly reduces bandwidth and storage requirements without compromising image quality.

Specifications

Performance
Infrared (IR) cut-off filter	Yes
Number of languages	20
Languages support	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
PTZ modes	Digital PTZ, Preset point
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Indoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	CSA, UL/cUL, BIS, UKCA, CE, KC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267
Design
Form factor	Dome
Product colour	Black, White
Mounting type	Ceiling/wall
LED indicators	Yes
Housing material	Plastic
Camera
Minimum illumination	0.04 lx
Camera shutter speed	1/8100 - 1/2 s
Lens viewing angle, horizontal	182
Lens viewing angle, vertical	182
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 2.3 mm (1 / 2.3")
Number of sensors	1
Lens system
Number of lenses	1
Fixed focus	Yes
Fixed focal length	2.2 mm
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Text caption overlay	Yes
Bit rate control	Variable Bit Rate (VBR)
Noise reduction technology	2D noise reduction, 3D noise reduction
Maximum resolution	2992 x 2992 pixels
Video formats supported	AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions	256 x 144, 384 x 288, 2048 x 1536 (QXGA), 2560 x 1920, 2880 x 2880, 3840 x 2160
Frame rate	30 fps
Video streaming	Yes
Total megapixels	12 MP
Audio
Audio system	2-way
Network
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af, IEEE 802.3at
Quality of Service (QoS) support	Yes
Streaming method	Multicast
Ethernet LAN	Yes
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Storage
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Internal memory	2048 MB
Flash memory	8192 MB
Ports &interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Security
Privacy protection	Yes
Alert notification type	E-mail
Video motion detection	Yes
Security algorithms	256-bit AES-XTS, EAP-TLS, TLS
IP address filtering	Yes
HTTPS encryption	Yes
Active tampering alarm	Yes
Password protection	Yes
Pixel counter	Yes
Human and vehicle targets classification	Yes
Digest authentication	Yes
Management features
Behavior analysis	Line crossing detection
Power
Power source type	PoE
Power consumption (typical)	3.5 W
Power consumption (max)	5.1 W
Certificates
Certification	CSA, UL/cUL, BIS, UKCA, CE, KC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267
Operational conditions
Operating temperature (T-T)	0 - 40 C
Storage temperature (T-T)	-40 - 65 C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 95%
Weight &dimensions
Width	101 mm
Depth	101 mm
Height	51 mm
Weight	300 g
Packaging content
Number of cameras	1
Manual	Yes
Technical details
Sustainability certificates	RoHS
Doesn't contain	PVC/BFR
