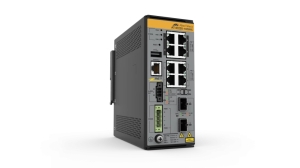

AT-IE220-10GHX-80 | Allied Telesis IE220-10GHX Managed L2 Gigabit Ethernet (10/100/1000)

Management features
Multicast support	Yes
Traffic shaping	Yes
Traffic classification	Yes
ARP inspection	Yes
Switch layer	L2
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Configuring Location Settings (CLI)	Yes
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3bt
Full duplex	Yes
Number of VLANs	4094
VLAN support	Yes
Link aggregation	Yes
Flow control support	Yes
10G support	No
Virtual LAN features
Number of VLANs	4094
VLAN support	Yes
Data transmission
Number of VLANs	4094
MAC address table	16000 entries
Switching capacity	56 Gbit/s
Throughput	41.7 Mpps
Jumbo frames support	Yes
Packet buffer memory	2 MB
Performance
Packet buffer memory	2 MB
Internal memory	512 MB
Flash memory	128 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Gigabit Ethernet (copper) ports quantity	10
USB 2.0 ports quantity	1
Security
BPDU filtering/protection	Yes
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client, DHCP snooping
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMPv1/v2c/v3
Design
DIN rail mounting	Yes
Wall mountable	Yes
International Protection (IP) code	IP30
Rack mounting	No
Product colour	Grey
Housing material	Aluminium, Metal
Power
Power consumption (max)	18.5 W
Input voltage	37 - 57 V
Power source	DC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet 4PPoE (PoE++) ports quantity	2
Weight & dimensions
Width	65 mm
Depth	137 mm
Height	155 mm
Other features
Input voltage	37 - 57 V

Industrial Ethernet Layer 2+ PoE++ Switches with 10G uplinks
Ruggedized switches built for enduring performance in harsh environments. Power over Ethernet (PoE++) connects and powers environmental, system control, and other key IIoT devices for a reliable and high-performing solution and 10G fiber uplinks ensure capacity for demanding edge applications. The IE220 Series enables safety, security, and smooth operation for building automation, intelligent transportation, and smart city networks.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.
