All stock codes associated to this product
ARMDUAL2, 4705131, 0065030884150
| Mounting |
|---|
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8.8 cm |
| Maximum weight capacity | 16 kg |
| Maximum screen size | 81.3 cm (32") |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp |
| Extension arm (max) | 39.9 cm |
| Ergonomics |
|---|
| Cable management | Yes |
| Height adjustment | Yes |
| Swivel angle range | -90 - 90 ° |
| Tilt angle range | -45 - 45 ° |
| Angle of rotation | 360 ° |
| Design |
|---|
| Product colour | Black |
| Certification | REACH, CE |
| Housing material | Steel |
| Technical details |
|---|
| Cable management | Yes |
| Sustainability certificates | RoHS |
| Weight & dimensions |
|---|
| Width | 965 mm |
| Depth | 500 mm |
| Height | 548 mm |
| Weight | 4.25 kg |
| Package width | 250 mm |
| Package depth | 450 mm |
| Package height | 135 mm |
| Package weight | 4.25 kg |
| Packaging content |
|---|
| Wrench type | Hexagonal wrench |
| Clamp included | Yes |
| Wrench included | Yes |
| Manual | Yes |
| Number of screws | 37 |
| Number of washers included | 8 |
| Number of spacers included | 16 |
| Grommet base plate included | Yes |
| Grommet plate included | Yes |
| Number of cable clips | 2 |
| Packaging data |
|---|
| Wrench type | Hexagonal wrench |
| Clamp included | Yes |
| Wrench included | Yes |
| Manual | Yes |
| Logistics data |
|---|
| Master (outer) case width | 250 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 135 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85299097 |
| Other features |
|---|
| Mounting type | Desk |
| Mounting | Clamp |

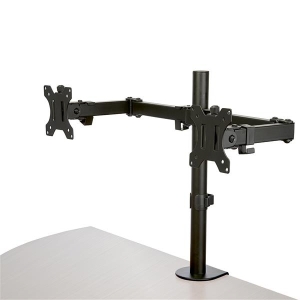

Monitor Mount | Desk/Grommet | Double Joint | Adjustable | For up to 32" Monitors
Work in comfort while saving space. This highly functional desk mount dual monitor arm brings you a cost-effective and versatile solution to an ergonomic workspace. Enjoy a wide range of motion with the double-jointed crossbar design plus tilt, swivel, rotation and height adjustment.
Make your Workspace Work for You
The multi monitor mount gives you the flexibility to set-up your desktop your way. Each of the articulating arms extends a full 15.7" (39.9 cm) to adjust to your needs.
The flexible double joints on the arms give you numerous options to position your monitors. You can place your monitors to face you, or even turn your monitors right around, 180-degrees, to share your screen with others. If you choose, you can also tighten the joints, making your setup as stationary as you like.
Crossbar Design Made of Steel
The cross-bar design provides a clean and simple look, while keeping monitors aligned. Use the micro-adjustment knob to align your monitors perfectly.
Made of steel, the rugged two display arm securely supports two VESA mount (75x75, 100x100) monitors up to 32", with a weight capacity of 17.6 lb. (8 kg) per monitor.
Find the Ideal Viewing Angle
The double monitor arm lets you smoothly and effortlessly adjust the position of your screens for optimum viewing. Tilt your monitors +45/-45 degrees. Swivel +90/-90 degrees to the left or right. Rotate your monitors to portrait or landscape position with the 360-degree rotary VESA plate.
Height Adjustable
Adjust your monitors to the desired height. The dual screen mount is height adjustable along the 17.4" (44.3 cm) pole.
Easy to Install
The multiple monitor mount is easy to install, using the C-clamp to attach the mount to the edge of your desk, table, or counter or mounting it through a grommet hole. The detachable VESA plate makes it easy to attach or remove your monitor. The built-in cable management keeps your cables neatly tucked away.
ARMDUAL2 is backed by a StarTech.com 5-year warranty and free, lifetime technical support.
The StarTech.com Advantage
- 32 INCH LARGE MONITOR SUPPORT: VESA 75x75mm / 100x100mm compatible multi monitor mount supports 2 large monitors up to 32" (17.6 lb / 8 kg) per arm w/ horizontal articulation & basic height adjustment
- WIDE RANGE OF MOTION: Double monitor mount increases ergonomic comfort and productivity with +45/-45 ° tilt, +90/-90 ° swivel, 360 ° rotating display, and adjustable height along the 15.7" (39.8 cm) pole
- ADJUSTABLE SET UP: Use the desk-clamp (C-clamp) or grommet mount to easily mount and tighten by hand to a desktop & cable management clips can hold incl. tools for quick height & angle adjustment
