All stock codes associated to this product
90YV0K21-M0NA00, DUAL-RX7600XT-O16G, DUALRX7600XTO16G, 90YV0K21M0NA00, 0197105459229
| Processor |
|---|
| Graphics processor | Radeon RX 7600 XT |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor family | AMD |
| Processor boost clock speed | 2781 MHz |
| Stream processors | 2048 |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed (OC mode) | 2801 MHz |
| Processor boost clock speed (Gaming mode) | 2513 MHz |
| Memory |
|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 18 Gbit/s |
| Ports & interfaces |
|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 2.1 |
| Performance |
|---|
| TV tuner integrated | No |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| HDCP version | 2.3 |
| Design |
|---|
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Number of slots | 2.5 |
| Product colour | Black |
| Cooling technology | ASUS Axial-tech |
| Power |
|---|
| Minimum system power supply | 600 W |
| Supplementary power connectors | 1x 8-pin |
| Weight & dimensions |
|---|
| Weight | 733 g |
| Width | 227.2 mm |
| Height | 49.6 mm |
| Depth | 123.2 mm |
| Packaging data |
|---|
| Package type | Box |
| Package width | 368 mm |
| Package depth | 220.5 mm |
| Package height | 68 mm |
| Package weight | 1.19 kg |
| Manual | Yes |
| Packaging content |
|---|
| Manual | Yes |

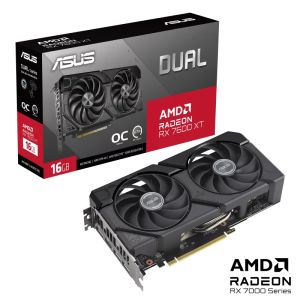

2x Fans. 2x Fun.ASUS Dual Radeon™ RX 7600 XT fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards – including two Axial-tech fans for maximizing airflow to the heatsink – are packed into the 22.7 cm long, 2.5-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Axial-tech Fan Design
Better, faster, strongerTwo tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
Auto-Extreme Technology
Precision automated manufacturingAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
GPU TWEAK III
Monitor, tweak, and tuneThe ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
Pair with a PSUUse our wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG Thor, ROG Loki or ROG Strix AURA power supply for ultimate performance.
