All stock codes associated to this product
PR1000ELCDRT1U, CP85203, 2428701, CPPR1000ELCDRT1U, 4712364141393

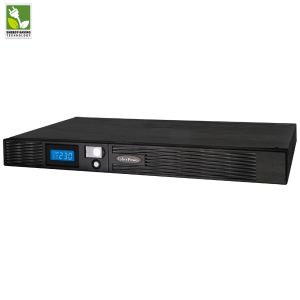

The professional Rack Mount LCD Series provides an advanced level of power protection to support mission-critical servers, telecom equipment, VOIP and internet working hardware. This series has both a Pure Sinewave waveform and Full Automatic Voltage Regulation(AVR) technology, which delivers a consistent and clean AC signal that protects connected equipment and prevents costly business interruptions. The multifunction LCD readout provides ready access to power/battery condition vitals, such as : Runtime, Load, Voltage, and much more. Bundled PowerPanel Business Edition Management Software monitors UPS status and can provide unattended shutdown of a server. The patented GreenPower UPS advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models. You will find 80% less heat dissipation as well. An optional SNMP/HTTP Remote Management adapter supports remote management and contol of the system through a standard web browser. The unit's unique space-saving design uses only 1U of rack space.
Features & Benefits
- 1U rack space
- GreenPower UPS Technology : Energy-Saving UPS
- Save upto 75% of electricity
- Pure Sine Wave output
- Automatic Voltage Regulator (AVR)
- PowerPanel Management software included
- Multiple outputs for multiple servers
- Multiple communication interfaces
- Programmable brownout and over voltage protection
- Microprocessor based full digital control
- EMI, RFI, Surge and lightning spike protection
- Scheduled shutdown
- Auto restart/Auto charge
- User-replaceable batteries
- SNMP/HTTP Adapter(optional)
- Critical load outlets
- Metal housing
- Multifunction LCD readout
- Audible alarms
- Resettable Circuit Breaker
Packaging Contents
- UPS unit
- User manual
- PowerPanel Business Edition software CD
- Rack mount Brackets
- Phone line
- USB A+B type cable
- Emergency Power-Off Cable (gray)
- Serial Interface Cable (DB-9)
- Power Cord x 4
Specifications
| |
| |
| Model |
PR1000ELCDRT1U |
| Capacity (VA/Watts) |
1000VA / 670W |
| Input |
| Voltage Range |
160Vac - 290Vac |
| Frequency Range |
50Hz / 60 Hz +/- 3Hz(auto sensing) |
| Output |
| On Battery Output Voltage |
Pure Sine Wave at 230Vac +/- 5% |
| On Battery Output Frequency |
50Hz / 60 Hz +/- 0.1Hz |
| Transfer Time (Typical) |
4ms |
| Overload Protection |
Internal Current Limiting/Circuit Breaker |
| AVR |
Double Boost & Single Buck |
| Surge Protection and Filtering |
| Lightning/Surge Protection |
Yes |
| Physical |
| Maximum Dimensions(mm) |
433 x 490 x 44 |
| Weight(kg) |
18 |
| Battery |
Sealed Maintenance Free Lead
Acid Battery |
6V 9AH x 4 |
| User Replaceable |
Yes |
| Typical Recharge Time |
6-8 Hours |
| Status Indication |
| Indicators |
Power On, Using Battery, AVR, Load Level, Battery Level |
| Audible Alarms |
On Battery, Low Battery, Overload |
| Communication |
| Power Management Software |
PowerPanel Business Edition |
| Management |
| Self-Test |
Yes |
| Auto-Charge/Auto-Restart |
Yes |
| COM Interface |
Yes |
| USB Interface |
Yes |
| SNMP/HTTP Capable |
Yes |
|
