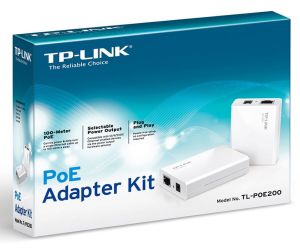

TL-POE200
Power over Ethernet Adapter Kit
Spotlight:
- Carriespower&dataoverasingleEthernetcableupto100metersaway
- 12/9/5VDC tripleoutputadaptstodifferentEthernet-enableddevices
- Hasslefreesetup,noconfigurationrequired
Description
The TL-POE200 is designed to deliver power and data over a single Ethernet cable to an Ethernet enabled device up to 100m away. The PoE kit uses two devices, one, the injector injects power and data into a single Ethernet cable while the other, the splitter placed at the receiving end splits the power and data back into two cables to be used by the connected Ethernet device. This convenience allows users to place Ethernet enabled devices such as access points, IP cameras, or VoIP phones anywhere that they are best suited, regardless of whether a power socket is available, to achieve the best performance for the connected devices.
*TP-LINKs TL-POE200 uses widely adoptedPoE technology in the industry and provides more cost-effective PoE solution. It is highly recommended not to pair thePoE products with other PoE adapters unless under professional guidance.
Features
- Delivers power and data through a single Ethernet cable for simple network extension
- Transmits power & data over an Ethernet cable up to 100m(328 feet) away
- Plug and play design provides a hassle free setup
- 12/9/5VDC triple output adapts to different Ethernet-enable devices
Specifications
|
Standards
|
IEEE 802.3, 802.3u, CSMA/CD, TCP/IP
|
|
Interface
|
TL-POE200A
1 10/100M RJ45 LAN port
1 10/100M RJ45 PoE port
1 48VDC Power Input Port
TL-POE200B
1 10/100M RJ45 LAN port
1 10/100M RJ45 PoE port
1 12/9/5VDC Power Output Port
|
|
Power Supply Unit of PoE Injector
|
Input: 100~240VAC
Output: 48V, 0.5A Switching PSU
|
|
Output Power for PoE Splitter
|
12/9/5VDC
|
|
LED
|
Power
|
|
Operating temperature
|
0C~40C (32~104)
|
|
Relative humidity
|
10% ~ 90%, Non-Condensing
|
|
Dimensions
|
3.2*2.0*0.9 in.(81*52*24 mm)
|
