Simple, Secure Connectivity for the Small Office/Home Office

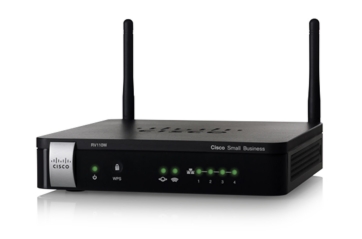

Figure 1. Cisco RV110W Wireless-N VPN Firewall
The Cisco RV110W Wireless-N VPN Firewall provides simple, affordable, highly secure, business-class connectivity to the Internet for small offices/home offices and remote workers.
The Cisco RV110W combines wired and wireless connectivity for small offices and remote workers with a high-speed, 802.11n wireless access point; a 4-port 10/100 Mbps Fast Ethernet switch; an intuitive, browser-based device manager; and support for the Cisco FindIT Network Discovery Utility, all at a very affordable price. Its combination of business-class features, support for virtual networks to enable highly secure guest access, simple installation, and top-quality user experience takes basic connectivity for small businesses with five or fewer employees to a new level.
Product Overview
The Cisco RV110W Wireless-N VPN Firewall features:
High-speed, standards-based 802.11n wireless connectivity improves throughput and coverage, allowing employees to stay productive while away from their desks
Integrated 4-port 10/100 switch, enabling you to connect to computers, printers, IP phones, cameras, and other devices
Proven firewall with access rules support and advanced wireless security helps keep business assets safe
Quality of service (QoS) support for enhanced voice, video, and data traffic
Support for separate "virtual" networks, enabling you to control access to sensitive information and to set up highly secure wireless guest access
IP Security (IPsec) and Point-to-Point Tunneling Protocol (PPTP) VPN support, providing highly secure remote access connectivity for Windows and Mac OS computers
Support for IPv6, the latest Internet Protocol technology, to help your network accommodate new technologies
Simplified configuration through an intuitive, browser-based device manager
Support for the Cisco FindIT Network Discovery Utility

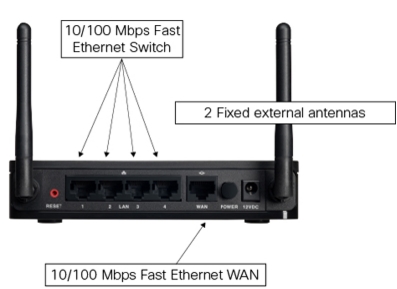

Figure 2. Back Panel of the Cisco RV110W Wireless-N VPN Firewall

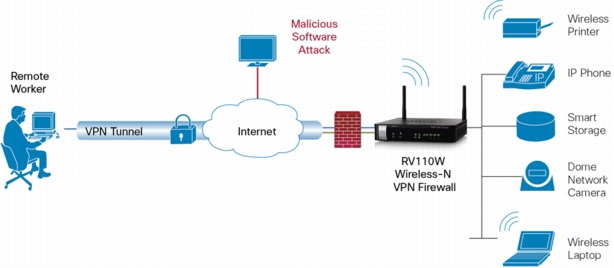

Figure 3. Typical Configuration for Cisco RV110W Wireless-N VPN Firewall
Product Specifications
Table 1 gives the product specifications for the Cisco RV110W.
Table 1. Product Specifications
|
Feature
|
Description
|
|
Routing
|
Static routing
Dynamic routingRouting Information Protocol (RIP) v1 and v2
Inter-VLAN routing
|
|
Layer 2
|
802.1Q -based VLANs
4 active VLANs (3 to 4094 range)
|
|
Network
|
Dynamic Host Configuration Protocol (DHCP) server
Point-to-Point Protocol over Ethernet (PPPoE)
Point-to-Point Tunneling Protocol (PPTP)
Layer 2 Tunneling Protocol (L2TP)
DNS proxy
DHCP relay agent
Internet Group Management Protocol (IGMP) proxy and multicast forwarding
Rapid Spanning Tree Protocol (RSTP)
Dynamic DNS (DDNS), TZO.com, DynDNS.com, 3322.org
Network Address Translation (NAT), Port Address Translation (PAT)
Port management
Port Mirroring
Software-configurable network edge (DMZ) to any LAN IP address
|
|
IPv6
|
Dual-stack IPv4 and IPv6
6to4 tunneling
Multicast Listener Discovery (MLD) for IPv6 (RFC 2710)
Stateless address auto-configuration
DHCP v6 Server for IPv6 Clients on LAN
DHCP v6 client for WAN connectivity
Internet Control Message Protocol (ICMP) v6
Static IPv6 Routing
Dynamic IPv6 Routing with RIPng
|
|
Security
|
Stateful packet inspection (SPI) firewall
Port forwarding and triggering
Firewall Access Control Lists and Content Filtering
Denial-of-service (DoS) prevention
MAC-based wireless access control
Static URL blocking or keyword blocking
Schedule-based Internet access policy
HTTPS web access to the device manager
username/password complexity enforcement
Self-signed SSL certificate
Import and export certificate using Privacy-Enhanced Mail (PEM) format
|
|
VPN
|
5 IPsec tunnels using Cisco QuickVPN client
5 PPTP tunnels for remote client access
Triple Data Encryption Standard (3DES) VPN pass-through of PPTP, L2TP, and IPsec
|
|
Quality of service (QoS)
|
802.1p port-based priority on LAN port, application-based priority on WAN port
4 queues
Differentiated Services Code Pointsupport (DSCP)
Class of Service (CoS)
Bandwidth Management for service prioritization
|
|
Management
|
Simple Network Management Protocol (SNMP) v3
Event logging: local, syslog, email alerts
Firmware upgradable through web browser
Imported/exported configuration in text format
Simple browser-based configuration (HTTP/HTTPS)
Bonjour and Universal Plug and Play (UPnP)
Network diagnostics: Ping, Traceroute, and DNS Lookup
|
|
Performance
|
NAT throughput: 90 Mbps
5000 concurrent sessions
VPN throughput: 5Mbps
|
Wireless LAN Specifications
Table 2 gives the wireless specifications for the Cisco RV110W.
Table 2. Wireless LAN Specifications
|
Features
|
Description
|
|
WLAN hardware
|
IEEE 802.11n standard-based access point with 802.11b/g compatibility
Radio and modulation type:
802.11b: direct sequence spread spectrum (DSSS)
802.11g/n: orthogonal frequency division multiplexing (OFDM)
2 omnidirectional 1.8 dBi gain fixed external antennas
Operating channels:
11 in North America
13 in most of Europe
Automatic channel selection
Transmit power:
802.11b: 17 dBm +/- 1.5 dBm
802.11g: 15 dBm +/- 1.5 dBm
802.11n: 12.5 dBm +/- 1.5 dBm
Receiver sensitivity:
-87 dBm at 11 Mbps
-71 dBm at 54 Mbps
-68 dBm at msc15, HT20 / -66dBm at mcs15, HT40
|
|
Wireless Domain Services (WDS)
|
Allows wireless signals to be repeated by up to 3 compatible devices
|
|
Wi-Fi Multimedia (WMM)
|
WMM with QoS (802.11e), WMM power save (WMM-PS)
|
|
Active WLAN clients
|
Up to 32 clients
|
|
Service Set Identifiers (SSIDs)
|
Up to 4 separate wireless networks
|
|
Wireless isolation
|
Wireless isolation between clients
|
|
WLAN security
|
Wireless isolation between clients
WPS ( Wi-Fi Protected Setup), Wired Equivalent Privacy (WEP), Wi-Fi Protected Access (WPA) personal and enterprise, WPA2 personal and enterprise
|
System Specifications
Table 3 gives the system specifications for the Cisco RV110W.
Table 3. System Specifications
|
Features
|
Description
|
|
WAN
|
One 10/100 Mbps Fast Ethernet WAN port
|
|
LAN
|
Four 10/100 Mbps Fast Ethernet LAN ports
|
|
WLAN
|
Built-in 802.11n wireless access point
|
|
LEDs
|
Power, WPS, WAN, Wireless, LAN (ports 1-4)
|
|
Switch
|
Power button (on/off)
|
|
Physical dimensions and weight
|
W x D x H = 5.91 in. x 5.91 in. x 1.18 in. (150 mm x 150 mm x 30 mm)
Weight: 0.61 lb (0.3 kg)
|
|
Power
|
12V 1A
|
|
Certifications
|
FCC Class B
CE
IC
cUL
Wi-Fi
|
|
Environmental operating range
|
Operating temperature: 0 to 40C (32 to 104F)
Storage temperature: -20 to 70C (-4 to 158F)
Operating humidity: 10% to 85% noncondensing
Storage humidity: 5% to 90% noncondensing
|
Configuration Requirements
Table 4 lists the configuration requirements for the Cisco RV110W.
Table 4. Configuration Requirements
|
Features
|
Description
|
|
Network adapter
|
PC with network adapter and Ethernet cable
|
|
Web-based configuration
|
Web browser
|
Networking
