Edimax EW-7722UTn Wireless Network Card - 802.11b/g/n, Up to 300Mbps, Mini Adapter - USB2.0

IMG 1 of 1
No Longer Available
Part Number:
173892
(?) Brand:
Edimax
Manuf No:
EW-7722UTN
EW7722UTN
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
8/7/2011
Details Files Images & Video
All stock codes associated to this product
EW7722UTN, EW-7722UTN, NWEEW7722UTN, NWE-EW-7722UTN, 4710700927236
EW-7722UTn
300Mbps Wireless 802.11b/g/n Mini-size USB Adapter

  • Complies with wireless 802.11b/g/n standards with a data rate of up to 300Mbps
  • Increases wireless coverage to 5 times further
  • Includes multi-language EZmax setup wizard.
  • Supports 64/128-bit WEP, WPA , WPA2, WPS and IEEE802.1x for security
  • Supports QoS-WMM, WMM-Power Save Mod

Overview

Enjoying high-speed wireless network access is as simple as plugging the Edimax EW-7722UTn into your computer's USB port. This mini wireless USB adapter is a quick and easy way to add or upgrade the wireless connectivity of your desktop, laptop, or notebook computer. You can enjoy data rates of up to 300Mbps when the Edimax EW-7722UTn is connected to 300Mbps wireless 802.11n standard devices.

Wireless 802.11n Standard (data rates up to 300Mbps)
The Edimax EW-7722UTn means increased wireless coverage and higher data transmission rates. The latest wireless technology is built into this device to broaden its wireless coverage by 5 times and to reduce dead spots within the wireless range. The EW-7722UTn complies with wireless IEEE 802.11b/g/n standards and can reach data transmission rates of up to 300Mbps when connected to wireless 802.11n devices. It also extends its wireless signal distance, and provides more reliable wireless connections than standard IEEE 802.11b/g wireless networks.

Features a Hardware WPS (Wi-Fi Protected Setup) Button
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of wireless networks. If the wireless device you wish to connect supports WPS, the Edimax EW-7722UTn will automatically set up the wireless connection with a robust WPA data encryption and authentication. The Edimax EW-7722UTn wireless USB adapter supports both hardware (push-button) WPS and software WPS configurations.

Features Multi-Language EZmax Setup Wizard*
The Edimax EW-7722UTn includes an EZmax setup wizardan application available in 16 languages that helps you to quickly connect the adapter to your wireless network.

Portable and Compact Design
The Edimax EW-7722UTn is currently the smallest 300Mbps wireless adapter. Its lightweight and compact design makes it ultra-convenient for any mobile user to carry around.

Hardwire USB Cable for Improved Wireless Performance
EW-7722UTn comes with a free hardwire USB cable for improved wireless performance. When using EW-7722UTn with the hardwire USB cable, it provides better wireless performance at no extra cost.


Specifications
HARDWARE INTERFACE
STANDARD
FREQUENCY BAND
  • 1 x USB 1.0/2.0 Type A
  • Hardware WPS button
  • 2 x Internal Antenna
  • IEEE802.11b, 802.11g, 802.11n
  • 2.4000~2.4835GHz (Industrial Scientific Medical Band)


DATA RATES
INSTALLATION
LED
  • 11b: 1/2/5.5/11Mbps
  • 11g:6/9/12/24/36/48/54Mbps
  • 11n (20MHz): MCS0-15 (up to 144Mbps)
  • 11n (40MHz): MCS0-15 (up to 300Mbps)
  • Multi-language EZmax Setup Wizard
  • Link/Activity
WIRELESS SECURITY
DIMENSIONS
HUMIDITY & TEMPERATURE
  • WEP 64/128, WPA, WPA2, 802.1x
  • Cisco CCX Support
  • Hardware and Software WPS configuration
  • 9.1(H) x 17.8 (W) x 35.8 (D) mm
  • Max. 95% (Non Condensing)
  • 32~104F (0~40C)
SYSTEM REQUIREMENTS
OUTPUT POWER
CERTIFICATIONS
  • Windows 2000/XP/Vista/7
  • 11n: 12dBm1dBm
  • 11g: 17dBm1dBm
  • 11b: 17dBm1dBm
  • CE, FCC

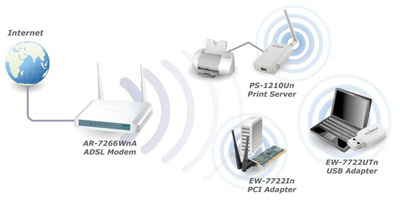

NETWORK SETUP DIAGRAM AND RELATED PRODUCTS

An example of how the EW-7722UTn can be setup:

How the EW-7722UTn can be setup:

  • Connect the mini wireless adapter to your computer
  • Setup the wireless connection by running EZmax wizard
  • Connect to 802.11b/g/n a wireless access point or a broadband router




No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 months*

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
