All stock codes associated to this product
DWR116, DWR-116, DWR-116 , 790069393556

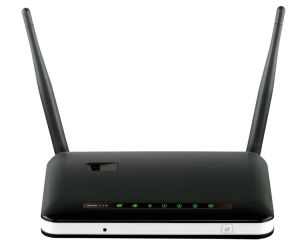

DWR-116 Wireless N300 Multi-WAN Router
Overview
Create a reliable mobile, high-speed wireless network wherever you go with 3G/4G backup as auto WAN failover to maintain your Internet connection.
Description
The DWR-116 Wireless N300 Multi-WAN Router allows you to connect a 4G LTE or 3G USB adapter for mobile broadband connectivity. The incoming connection is then shared via a Wireless N 300 network, allowing you to set up a wireless network almost anywhere that you have a 4G or 3G broadband signal.
Maximum Portability
The D-Link Wireless N300 Multi-WAN Router allows users to access and share mobile broadband worldwide. Simply insert a compatible 4G LTE / HSPA+ / HSUPA / HSDPA / UMTS USB adapter and share your Internet connection through a secure, high-speed wireless network. Enjoy increased speed and range over traditional 802.11b/g standards with the latest Wireless N 300 technology.
Reliable, Uninterrupted Internet Connection
A 10/100 Ethernet WAN port allows you to attach a DSL/Cable modem as the primary or backup link, while auto-failover ensures an uninterrupted connection by automatically connecting to your 4G LTE/3G network whenever the WAN link is lost. The built-in QoS management feature also prioritizes traffic to ensure that the most important data receives optimum bandwidth.
Incredible Wireless Speeds
The DWR-116 supports the latest, high-speed 4G LTE mobile broadband technology, allowing you to achieve blazing fast mobile broadband speeds. In addition to this, the Wireless N300 Multi-WAN Router's N300 technology means that you can connect wireless clients to the router at up to 300 Mbps, with the enhanced range and reliability of the 802.11n wireless standard.
Advanced Network Security
The DWR-116 ensures a secure Wi-Fi network through the use of WPA/WPA2 wireless encryption. Simply press the WPS button to quickly establish a secure connection to new devices. The DWR-116 also utilizes dual-active firewalls (SPI and NAT) to prevent potential attacks and intrusions from across the Internet.
Simple to Install and Use
The Wireless N300 Multi-WAN Router can be installed quickly and easily almost anywhere. The intuitive setup wizard will get you set up and connected in no time. This router is great for situations where an impromptu wireless network is required, or where conventional wired network access is unavailable. The DWR-116 can even be installed on buses, trains, or boats, allowing passengers to access the internet while commuting.
Features:
- Wireless N300 (b/g compatible) and Ethernet Connectivity
- WiFi Protected Setup (WPS)
- Enhanced Security with WPA2 & Advanced Encryption Standard (AES)
- 4 10/100 LAN Ports & 1 WAN Port
- Universal Plug and Play (UPnP)
- Supports Telstra 4G (320U & MF821) and Optus 4G (E3276) USB dongles
Technical Specifications
General
Device Interfaces
4 x 10/100 Ethernet LAN Ports
1 x 10/100 Ethernet WAN Port
1 x USB 2.0 Port
LED Status Indicators
Status
WLAN
WAN
LAN
Antenna
2 x External 5 dBi WiFi Antennas
Compatible Mobile Networks
EV-DO/CDMA
4G LTE/HSPA+/HSUPA/HSDPA/UMTS
Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.3
IEEE 802.3u
300N (2x2)
Wireless Security
64/128-bit WEP (Wired Equivalent Privacy)
WPA & WPA2 (Wi-Fi Protected Access)
WPS
Firewall
Network Address Translation (NAT )
Stateful Packet Inspection (SPI)
MAC Address Filtering
Website Filtering
VPN
L2TP/PPTP/IPSEC VPN Pass-through
PPTP/L2TP Connection
Advanced Features
3G/4G LTE Modem Backup
QoS Management
Auto WAN Failover
Load Sharing
Physical
Dimensions
148.5 x 113.5 x 25 mm (5.85 x 4.47 x .98 inches)
Weight
300 grams (0.66 lbs)
Power
Input: DC 5 V/2 A +/- 5%
Temperature
Operating: 0 to 40 C (32 to 104 F)
Storage: -20 to 65 C (-4 to 149 F)
Humidity
Operating: 10% to 95% non-condensing
Storage: 5% to 95% non-condensing
Certifications
CE
FCC
C-Tick
Wi-Fi Certified
RoHS Certified
