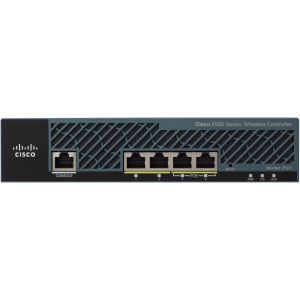

AIR-CT2504-15-K9 | Cisco 2504 Series Wireless Controller - Supports up to 15



The Cisco 2500 Series Wireless Controller enables systemwide wireless functions in small to medium-sized enterprises and branch offices. Designed for 802.11n performance, Cisco 2500 Series Wireless Controllers are entry-level controllers that provide real-time communication between Cisco Aironet access points to simplify the deployment and operation of wireless networks As a component of the Cisco Unified Wireless Network, this controller delivers centralized security policies, wireless intrusion prevention system (wIPS) capabilities, award-winning RF management and quality of service (QoS) for voice and video. Delivering 802.11n performance and scalability the 2500 Series provides low total cost of ownership and flexibility to scale as network requirements grow.



As a component of the Cisco Unified Wireless Network, this controller delivers centralized security policies, wireless intrusion prevention system (wIPS) capabilities, award-winning RF management, and quality of service (QoS) for voice and video. Delivering 802.11n performance and scalability, the Cisco 2500 Series provides low total cost of ownership and flexibility to scale as network requirements grow.



The Cisco 2504 Wireless Controller supports Cisco Application Visibility and Control (AVC), the technology that includes Cisco's Network-Based Application Recognition 2 (NBAR-2) engine. N-BAR-2 does deep packet inspection (DPI) to classify applications and tie into quality of service (QoS) to either drop or mark the traffic, thereby prioritizing business-critical applications in the network. Cisco AVC uses NetFlow Version 9 to export the flows to Cisco Prime Infrastructure or a third-party NetFlow Collector. The Cisco 2504 Wireless Controller also supports Bonjour Services Directory, which enables Bonjour (Apple) Services to be advertised and utilized in a separate Layer 3 network. Wireless Policy engine is a wireless profiler and policy featureon the Cisco 2500 Series Wireless Controllerthat enables profiling of wireless devices and enforcement of policies such as VLAN assignment, QoS, ACL, and time-of-day-based access.



Cisco 2500 Series Wireless Controller-based access point licensing offers flexibility with 5, 15, 25, or 50 access points. Additional access point support can be added in increments of 1, 5, or 25.



Table 1 lists the features and benefits of the Cisco 2500 Series Wireless Controllers.



General Information
Brand Name:	Cisco
Manufacturer Part Number:	AIR-CT2504-15-K9
Manufacturer Website Address:	https://www.cisco.com
Manufacturer:	Cisco Systems, Inc
Marketing Information:	The Cisco 2500 Series Wireless Controller enables systemwide wireless functions in small to medium-sized enterprises and branch offices. Designed for 802.11n performance, Cisco 2500 Series Wireless Controllers are entry-level controllers that provide real-time communication between Cisco Aironet access points to simplify the deployment and operation of wireless networks As a component of the Cisco Unified Wireless Network, this controller delivers centralized security policies, wireless intrusion prevention system (wIPS) capabilities, award-winning RF management and quality of service (QoS) for voice and video. Delivering 802.11n performance and scalability the 2500 Series provides low total cost of ownership and flexibility to scale as network requirements grow.
Product Line:	Aironet
Product Model:	2504
Product Name:	Aironet 2504 Wireless LAN Controller
Product Series:	2500
Product Type:	Wireless LAN Controller

Interfaces/Ports
10Gigabit Ethernet Port:	No
Ethernet Port:	Yes
Fast Ethernet Port:	Yes
Gigabit Ethernet Port:	Yes
Management Port:	Yes
Number of Network (RJ-45) Ports:	4
PoE (RJ-45) Port:	No
Powerline:	No
Serial Port:	No
USB:	No
VGA:	No

Management & Protocols
Management:	DHCP SNMP v1, v2c, v3 TACACS Web-based HTTP/HTTPS Telnet MIB/MIB II Syslog Command-line interface

Miscellaneous
Certifications & Standards:	IEEE Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.1x Safety: UL 60950-1, 2nd Edition EN 60950:2005 EMI and susceptibility (Class B): U.S.: FCC Part 15.107 and 15.109 Canada: ICES-003 Japan: VCCI Europe: EN 55022, EN 55024

Physical Characteristics
Depth:	171.5 mm
Form Factor:	Rack-mountable
Height:	43.9 mm
Weight (Approximate):	1.59 kg
Width:	203.2 mm

Power Description
Input Voltage:	110 V AC
Input Voltage:	220 V AC
Power Source:	Power Supply

Technical Information
Features:	Quality of Service (QoS)
Wireless Security:	IEEE 802.1x AES EAP-TLS DES 3DES MD5 SHA-1 IPsec AAA

Warranty
Limited Warranty:	90 Day
