Overview

Todays growing businesses demand and rely more on their network to carry out mission-critical business activities. Companies are putting more network traffic and applications on their Ethernet infrastructure. For example, the increasing deployments of VoIP phones and IP cameras require more than simple plug-and-play connectivity. It needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. NETGEARs new ProSafe Plus Switches meet this growing need by providing fundamental network features that will help optimize the performance of business networks. ProSafe Plus Switches also offer traffic monitoring for users to observe traffic behavior. If there are connectivity issues, these switches can identify and even locate connection problems via cable diagnostic test. To optimize traffic through the switches, ProSafe Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, ProSafe Plus Switches offer port and 802.1Q-based VLAN as a means of improving security and network performance. ProSafe Plus Switches are an upgrade from the plug-and-play Unmanaged Switch, delivering great value for empowering your network, delivering great value to the end user.
Features
ProSafe Plus Switch delivers network monitoring, traffic prioritization and VLAN
16 ports deliver up to 2000 Mbps of dedicated, non-blocking bandwidth per port
Simple, yet useful network set-up on top of plug-and-play connectivity
Gigabit speed with QoS, VLAN and network monitoring
VLAN support for traffic segmentation
Quality of Service (QoS) for traffic prioritization
Auto denial-of-service (DoS) prevention
Troubleshoot connection issues via cable test
Loop prevention and broadcast storm controls
IGMP snooping v1, v2 and v3 support for multicast optimization
Rate limiting for better bandwidth allocation
Port mirroring for network monitoring
Jumbo frame support

Netgear Green Logo 101pixels X 89 pixels
NETGEAR Green
Up to 60% lower power consumption than the non-Green version
Auto power-down and cable-length detection for energy savings
Packaging manufactured with at least 80% recycled materials

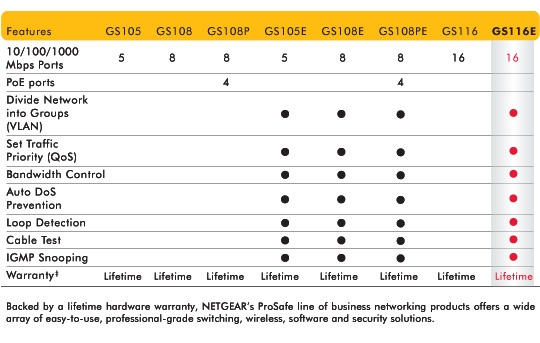

GS116E Product Comparison Table

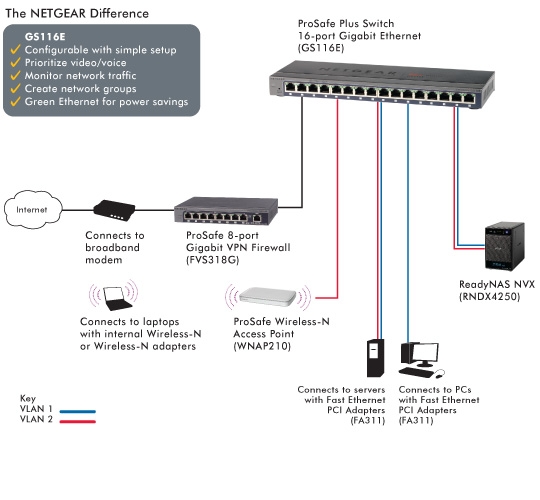

GS116E Connection Diagram

Specifications:
System Requirements
  • Ethernet Category 5 cable
  • Network card for each PC
  • Microsoft  Windows  7, Vista , or XP for running Configuration Utility
Standards Compliance
  • IEEE  802.3i 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3z 1000BASE-T Gigabit Ethernet
  • IEEE 802.3x flow control
  • Compatible with all major network software
Network Ports
  • Sixteen (16) 10/100/1000 Mbps Ethernet RJ-45 ports
AC Power
  • 12V, 1.5A power adapter, localized to country of sale
Physical Specifications
  • Dimensions (h x w x d): 27 x 287 x 103 mm (1.1 x 11.3 x 4.1 in)
  • Weight: 0.81 kg (1.79 lb)
Switch Environmental Specifications
  • Operating temperature: 32 to 122 F (0 to 50 C)
  • Operating humidity: 90% maximum relative humidity, non-condensing
Electromagnetic Compliance
  • CE mark (commercial), EN 55022 (CISPR 22) Class A, FCC Part 15 Class A, VCCI Class A, C-Tick
Safety Agency Approvals
  • CE/LVD, EN 60950, CB, CCC
Package Contents
  • ProSafe  Plus Switch, 16-port Gigabit Ethernet (GS116E)
  • Wall-mount kit
  • AC Power Adapter
  • Quick Install Guide
  • Installation CD with Configuration Utility software
Warranty
  • NETGEAR Lifetime Warranty
