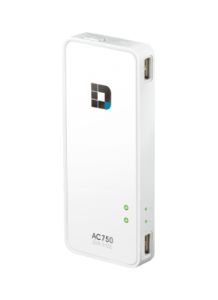

Wi Fi AC750 Portable Router and Charger

• Device Connectivity - Easy sharing of wireless hotspot or your 3G/4G LTE Internet connection
• Next Generation 11AC Wi-Fi - wireless speeds of up to 300 + 433Mbps
• Simultaneous Dual Band - Uninterrupted performance no matter what you are doing
• File Sharing - Stream your media no matter where you are with the mydlink SharePort
• Mobile Power Station - Charge your mobile devices on the go with the built-in portable charger

• mydlink

• Wireless standard
  • Wireless AC
• Wireless speed
  • 433 Mbps 5 GHz
  • 300 Mbps 2.4 GHz
• Dual-band

• WAN type
  • 3G/4G LTE via optional USB dongle
  • Fast Ethernet
• USB SharePort

• Antennas
• Internal

• 802.11 a/b/g/n/ac Wireless LAN, up to 750 Mbps²
• WAN 10/100 Ethernet port
• WPS button
• Power switch
• Reset button
• USB 2.0 Type A port (1 A) for compatible 3G/4G adapters, USB drive, or charging other devices
• USB 2.0 Type A port (0.5 A) for USB drive
• Power port (MicroUSB)

• Power/Status
• Battery status

• IEEE 802.11ac (draft)
• IEEE 802.11n
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11a
• IEEE 802.3
• IEEE 802.3x
• IEEE 802.3u
• USB 2.0

• Broadband Router Mode
• Mobile Router Mode
• Wi-Fi Hotspot Mode

• On/Off/Charger⁸

• IEEE 802.11a: 5.15 GHz to 5.85 GHz
• IEEE 802.11b: 2.4 GHz to 2.497 GHz
• IEEE 802.11g/n: 2.4 GHz to 2.483.5 GHz
• IEEE 802.11ac: 5.15 GHz to 5.85 GHz

• Internal antennas

• mydlink SharePort app
• App supports iPhone, iPad, iPod Touch, and Android devices
• Remote Access Mode: Access files through the Internet⁷
• Local Access Mode: Access files from any device connected to the DIR-510L
SharePort Web Access support (Web browser)
Access files from any device connected to the DIR-510L
SharePort Mobile app support for Windows 8/RT devices



• Wi-Fi Protected Access (WPA/WPA2)
• WEP 64/128-bit encryption⁵
• WPS 2.0 (PBC)

• Guest Zone support
• IPv6
• Wi-Fi WMM Quality of Service (QoS)
• UPnP support
• DLNA Media Server⁴

• Network Address Translation (NAT)
• MAC address filtering

• User-friendly web UI with desktop and mobile interfaces

• 140.0 x 59.0 x 16.0 mm (5.5 x 2.3 x 0.63 inches)

• 154 g (5.43 ounces)

• Built-in 4000 mAh Li-ion rechargeable battery
• Input Power:

  • 5V DC/1.8A maximum (with included adapter)
• Output Power:
• USB Type A port: 5V / 1A
• USB Type A port: 5V / 0.5A

• Operating: 0 to 40 C (32 to 104 F)
• Storage: -10 to 45 C (14 to 113 F)

• Operating: 10% to 75% non-condensing
• Storage: 5% to 75% non-condensing

• FCC
• CE
• IC
• C-Tick
• NCC
• cUL
• LVD
• BSMI
