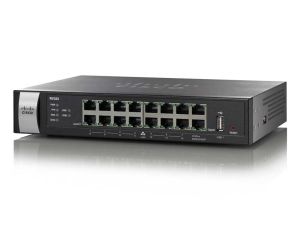

Cisco RV325 Dual Gigabit WAN VPN Router


Performance, Flexibility, Security in One Device

The Cisco RV325 Dual Gigabit WAN VPN Router is a perfect choice for companies that need a combination of performance, security, reliability, and flexibility. You can connect its dual Gigabit Ethernet WAN ports to one service provider, for high-performance networking with load balancing.

Features and Capabilities

The Cisco RV325 Dual Gigabit WAN VPN Router offers:

  • Dual Gigabit Ethernet WAN ports for load balancing and business continuity
  • Built-in 14-port Gigabit Ethernet switch
  • Strong security with proven stateful packet inspection (SPI) firewall and hardware encryption
  • High-capacity, high-performance SSL and IP Security (IPsec) VPN capabilities
  • Intuitive, browser-based device manager and setup wizards

Benefits of the Cisco RV325

  • High performance: Easily manages large files and concurrent users to keep employees productive
  • Simple, highly secure access: Connects multiple locations and remote workers using VPN
  • Easy to use: Deploys directly out of the box; setup wizards reduce configuration time to minutes
  • Flexible: USB ports use 3G and 4G modems for broadband failover

Product Specifications

Table 1 lists the product specifications for the Cisco RV320 and RV325.

Table 1. Product Specifications


Description

Specification

Dual WAN

Dual Gigabit Ethernet Ports
Failover
Load balancing

Standards

802.3, 802.3u
IPv4 (RFC 791)
IPv6 (RFC 2460)

WAN connectivity

Dynamic Host Configuration Protocol (DHCP) server, DHCP client, DHCP relay agent
Static IP
Point-to-Point Protocol over Ethernet (PPPoE)
Point-to-Point Tunneling Protocol (PPTP)
Transparent bridge
DNS relay, Dynamic DNS (DynDNS, 3322)
IPv6

Routing protocols

Static
Routing Information Protocol (RIP) v1, v2, and RIP for IPv6 (RIPng)

Network Address Translation (NAT)

Port Address Translation (PAT)
One-to-one NAT
NAT traversal

Protocol binding

Protocols can be bound to a specific WAN port for load balancing

Network edge (DMZ)

DMZ port

DMZ host

Dual USB ports

3G/4G modem support

Security

Firewall

SPI firewall
Denial of service (DoS), ping of death, SYN flood, land attack, IP spoofing, email alert for hackerattack

Access rules

Schedule-based access rules
Up to 50 entries

Port forwarding

Up to 30 entries

Port triggering

Up to 30 entries

Blocking

Java, cookies, ActiveX, HTTP proxy

Content filtering

Static URL blocking or keyword blocking

Secure management

HTTPS web access to device manager
Username/password complexity enforcement

VLAN

802.1Q VLAN

RV320: 7 VLANs supported

RV325: 17 VLANs supported

VPN

IP Security (IPsec)

25 IPsec site-to-site tunnels for branch office connectivity
25 IPsec VPN tunnels via Cisco VPN client and third-party clients such as "TheGreenBow" for remote access VPN connectivity

SSL VPN

10 SSL VPN tunnels for remote client access

PPTP

10 PPTP tunnels for remote access

Encryption

Data Encryption Standard (DES)
Triple Data Encryption Standard (3DES)
Advanced Encryption Standard (AES) encryption: AES-128, AES-192, AES-256

Authentication

MD5/SHA1 authentication

IPsec NAT traversal

Supported for gateway-to-gateway and client-to-gateway tunnels

VPN pass-through

PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec

Advanced VPN

Dead peer detection (DPD)
Split DNS
VPN backup
Internet Key Exchange (IKE) with certificate

Quality of Service (QoS)

Prioritization types

Application-based priority on WAN port

Service-based QoS

Supports rate control or priority

Rate control

Upstream/downstream bandwidth can be configured per service

Priority

Each service can be mapped to one of 3 priority levels

Performance

NAT throughput

900 Mbps

IPsec VPN throughput

100 Mbps

SSL VPN throughput

20 Mbps

Concurrent connections

RV320: 20,000

RV325: 40,000

Configuration

Web user interface

Simple browser-based device manager (HTTP/HTTPS)

Management

Management protocols

Web browser (HTTP/HTTPS)
Simple Network Management Protocol (SNMP) v1, v2c, and v3
Bonjour

Event logging

Local log
Syslog
Email alert
Short Message Service (SMS)

Upgradability

Firmware upgradable through web browser
Imported/exported configuration file



System Specifications

Table 2 lists the system specifications for the Cisco RV320 and RV325.

Table 2. System Specifications





Description

Specification

Product dimensions
(W x H x D)

RV320: 206 x 132 x 44 mm (8.1 x 5.2 x 1.7 in)

RV325: 243 x 177 x 45 mm (9.6 x 7 x 1.8 in)

Ports

RV320: Four 10/100/1000 RJ-45 ports, one 10/100/1000 RJ-45 Internet port, one 10/100/1000 RJ-45 DMZ/Internet port

RV325: Fourteen 10/100/1000 RJ-45 ports, one 10/100/1000 RJ-45 Internet port, one 10/100/1000 RJ-45 DMZ/Internet port

Power supply

RV320: 12V 1.5A

RV325: 12V 2A

Certification

FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel, GOST

Operating temperature

0 to 40C (32 to 104F)

Storage temperature

0 to 70C (32 to 158F)

Operating humidity

10% to 85% noncondensing

Storage humidity

5% to 90% noncondensing



Warranty Information

This Cisco Small Business product comes with a limited lifetime hardware warranty. Product warranty terms and other information applicable to Cisco products are available at www.cisco.com/go/warranty.

Cisco Small Business Support Service

The Small Business Support Service is a device-level service agreement that expands and enhances the technical support exclusively for Cisco Small Business Products. Buying the service extends phone support to three years; adds next-business-day, advance product replacement; and expands Cisco phone support from eight hours, five days a week to 24-hours, seven days a week.

Ordering Information

To place an order, visit the Cisco Ordering Home Page.

Table 3. Ordering Information





Product Name

Part Number

Country - Power Plug

Service Plan

Service Part Number

RV320 Dual WAN VPN Router

RV320-K9-NA

North America

Cisco Small Business SupportService, 3YR,
24x7 phone support,
next-business-day advance product replacement

CON-SBS-SVC2

RV320-K9-G5

EU, Singapore, India, Thailand, Taiwan

RV320-K9-AU

Australia

RV320-K9-CN

China

RV320-K9-AR

Argentina

RV325 Dual WAN VPN Router

RV325-K9-NA

North America

RV325-K9-G5

EU, Singapore, India, Thailand, Taiwan

RV325-K9-AU

Australia

RV325-K9-CN

China

RV325-K9-AR

Argentina
