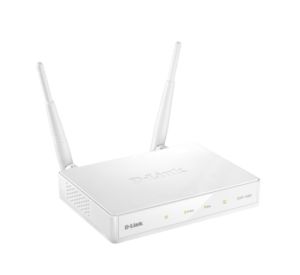

Wireless AC1200 Dual Band Access Point


DAP-1665

Overview

The DAP-1665 Wireless AC1200 Dual Band Access Point is a fast and versatile solution for bringing wireless AC to an existing wired network, or extending the capabilities of an existing wireless network. The latest 802.11ac technology delivers combined speeds of up to 1200 Mbps1, creating a high-speed wireless link between networks for optimized performance and reliable coverage delivering high-quality HD video streaming, gaming and file transfers.

High-Speed Wireless and Wired LAN

The DAP-1665 features the latest 802.11ac wireless technology, capable of delivering combined speeds of up to 1200 Mbps over two bands. Use the 2.4 GHz bands 300 Mbps for web surfing, email and chat, while simultaneously using the lower-interference 5 GHz band's 867 Mbpsfor network bridging, downloading, video streaming and file transfers. For wired connections, the Gigabit LAN port enables wired data speeds of up to 1000 Mbps, meaning that Gigabit-compatible wired devices can also benefit from the high speeds of wireless AC.

Versatile Operation Modes

The DAP-1665 can be configured to operate in several modes. Access Point mode allows the device to act as a central hub for wireless users, giving them access to an existing wired network. Bridge-mode creates a high-speed wireless link between two wired networks (LANs), alleviating the need to install additional network cabling. Repeater mode extends wireless coverage of an existing wireless network to cover dead spots and reach farther into a business environment. Bridge mode with AP adds the functionality of a wireless access point to a bridged network, so wireless clients can access resources on both networks. Wireless Client mode is available to enable the DAP-1665 to connect to another access point and provide network and Internet access to a remote wired device such as a gaming console or media center.

Full Wireless Security

The DAP-1665 provides WPA/WPA2 security to protect the network and wireless data. This device also supports Wi-Fi Protected Setup (WPS) to quickly and securely set up a secure wireless network. In addition, the access point features MAC address filtering and a disable SSID broadcast function to limit outsiders access to the wireless network. The DAP-1665 also features a Kensington security slot so you can protect it against theft.

Features

Type

Standalone access point

Wireless standards

5 GHz 802.11a/n/ac
2.4 GHz 802.11b/g/n
Simultaneous

MIMO

Antenna type

2 detachable omni-directional antennas

Wired interface

1 x Gigabit Ethernet

Indoor/outdoor

Indoor

Type of housing

Plastic

Wireless modes

Access Point (AP)
WDS bridge
WDS with AP
Wireless client

WEP 64/128 bit

WPA/WPA2-Personal/Enterprise

Technical Specifications

General

Networking Standards

Draft IEEE 802.11ac
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
802.3/802.3u
Interface

IEEE 802.11ac wireless LAN
IEEE 802.11n/g/b/a wireless LAN
10/100/1000BASE-TX wired LAN

Operating Modes

Access Point (AP)
Bridge
Bridge with AP
Wireless Client
Repeater

Operating Frequency

5 GHz Band:
5.15 GHz to 5.35 GHz
5.47 GHz to 5.85 GHz
2.4 GHz Band:
2.4 - 2.4835 GHz

Antenna

Two 2 dBi external antennas

LEDs

Power
2.4 GHz wireless
5 GHz wireless
LAN

Advanced Features

Security

64/128-bit WEP
WPA-PSK/WPA2-PSK
Wi-Fi Protected Setup (WPS)
MAC address filtering
Kensington security slot
SSID broadcast disable

Device Management

Web-based interface minimum requirements:
Internet Explorer 7, Firefox 12.0, Chrome 20.0, or Safari 4.0

Physical

Dimensions

5.79 x 4.25 x 1.1 inches (147 x 108 x 27.8 mm)

Weight

0.489 lbs (222 grams)

Power

Input: 12 V/1 A
Consumption: Maximum 5.18 W

Temperature

Operating: 32 to 104 F (0 to 40 C)
Storage: -4 to 149 F (-20 to 65 C)

Humidity

Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing

Certifications

CE
FCC
TELEC
IC
Wi-Fi Certified
VCCI

Ordering Information

Part Number / Description

DAP-1665 Wireless AC1200 Dual Band Access Point Description

Warranty

1 year
