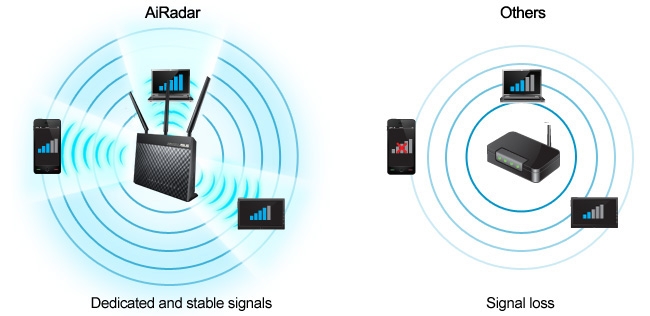

AiRadar delivers 150% Wi-Fi coverage
ASUS AiRadar intelligently strengthens wireless device connectivity using precise directional signal amplification for extended coverage, increased data throughput speed and enhanced stability. Because connection strength varies based on your environment, DSL-AC68U uses three external high-gain antennas and universal beamforming to detect wireless device locations and shape transmissions so theyre optimized for the fastest, most stable connection strength. Most importantly, the universal beamforming not only works on 802.11ac clients, but also 802.11a/b/g/n clients.

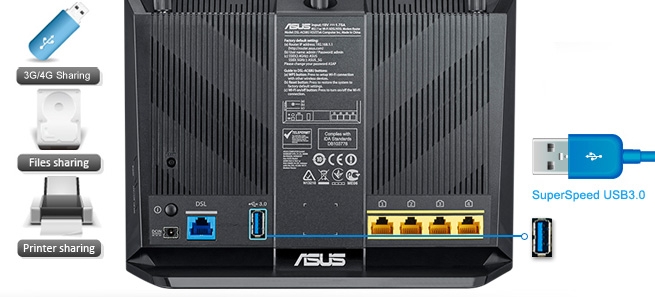

Highest USB speeds
The ASUS DSL-AC68U wireless modem router arrives loaded with USB 3.0 port. USB 3.0 offers up to ten times faster transfers than USB 2.0. FTP, HTTP, and UPnP server functions all achieved with instant ease and speed, alongside 3G/4G connection sharing and ASUS AiDisk remote file access and content streaming from a wide range of compatible devices. Best of all, downloading can occur 24/7 even with the PC off, and printers can be shared too.

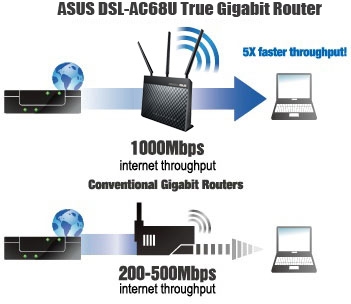

Gigabit Internet browsing with hardware NAT
Equipped with powerful hardware NAT acceleration and built-in Gigabit Ethernet, the DSL-AC68U wireless modem router gives you full Gigabit LAN-to-WAN performance of more than 900 Mbps, which is over 4.5 times that of traditional software-based NAT Gigabit routers. This reduces the possibility of bottlenecks on fast internet connections. You can also let two modes work simultaneously and manage them with ASUSWRT dual WAN function.

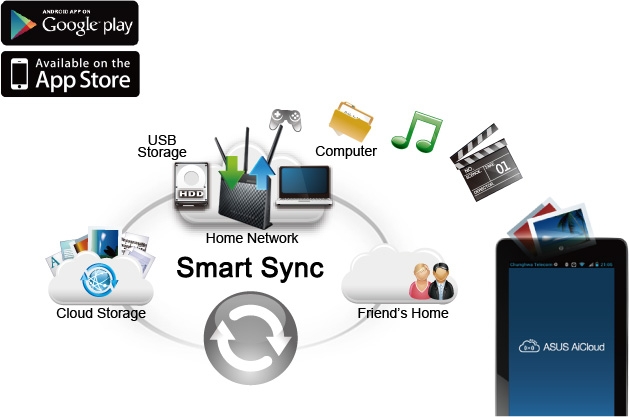

Sync. Share. Stream. Your world on demand
ASUS AiCloud keeps you connected to your data wherever and whenever you have an internet connection. It links your home network and online Web storage service* and lets you access it through the AiCloud mobile app on your iOS or Android smartphone or through a personalized URL in a Web browser. Even better, the new Router-to-Router Sync function allows you to synchronize your stuff with storage devices connected to other compatible ASUS routers its as simple as choosing a sync folder. Sharing with friends and family is now easier than ever!

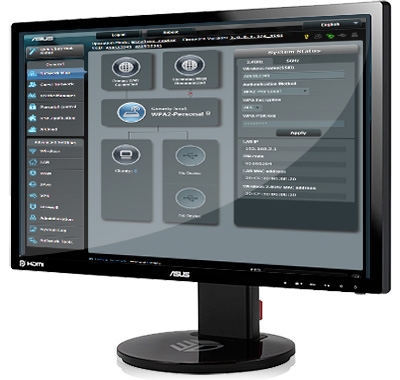

Robust control and optimization with ASUSWRT
With the ASUSWRT dashboard UI, setup, monitor, and control network applications all in one intuitive area. On top of 30-second setup, multi-device detection, and flexible settings that make the most of your network performance, its been upgraded with quick scanning of USB storage connected to routers to verify data integrity and drive health. Dual WAN enables having two connections/ISPs on one router, with load balance and failover mode for added stability and redundancy to ensure uninterrupted internet access.
Do you game a lot, or spend most of your time streaming videos? Whatever your planned use is, the DSL-AC68U has Quality of Service (QoS) standards that let you select how much bandwidth is prioritized for virtually any task. Plus, the traffic monitor allows you to check your Web usage in a clear graphical interface. Try our ASUSWRT
3-step easy setup through your pad, smartphone, or PC
Use your smartphone, tablet, or PC to effortlessly set up your ASUS router in less than 30 seconds* and in only 3 easy steps. Simply connect the cables to the router, open a Web browser, and follow the setup wizard to get you to the internet in no time.
ASUS-tested and verified setup time. Actual duration may vary by ISP, specific connection type, location, and other factors.
Step1: Open web browser.
Step2: Enter ID/Password.
Step3: Done!

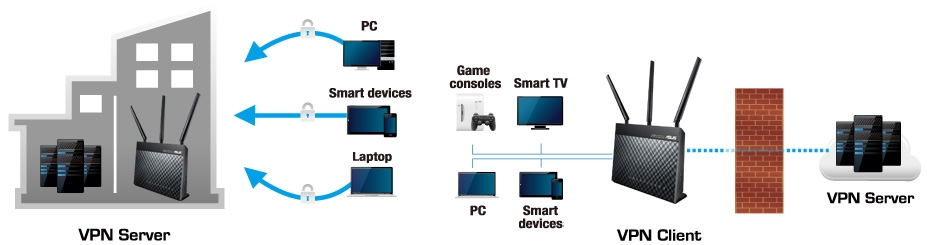

VPN server and VPN client support for total security and privacy
DSL-AC68U offers a simple VPN server and VPN client setup, which allows you to access a home network or the internet privately and securely. On DSL-AC68U you can easily set up a VPN server with PPTP and OpenVPN protocol support, with no need for paid VPN services or a dedicated VPN server. DSL-AC68U can also turn your network-connected devices into VPN-enabled clients via PPTP and L2TP protocols with no need to install VPN software on each of them.

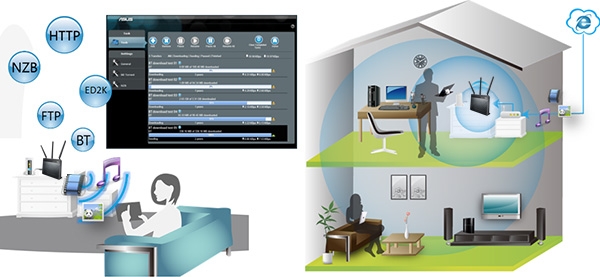

Download and stream anywhere
Download Master and enhanced media server let you download and play multimedia files stored on router-attached USB storage on a wide range of compatible devices such as PC, pad, PS4, Xbox, and smart TV. Download Master can also download files while your PC is turned off, and allows you to manage and monitor download status remotely.

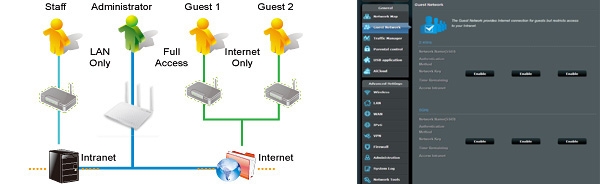

Discrete and secure Wi-Fi networks via guest access
The DSL-AC68U supports up to four wireless networks over the 2.4 GHz band and four over the 5 GHz band, so you can set up usage times and limit access with advanced controls, including parental settings.
Specifications:
- Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv6
- Product Segment
AC1900 ultimate AC performance: 600+1300Mbps
- Wi-Fi Data Rate
802.11a : 6,9,12,18,24,36,48,54Mbps
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 450Mbps
802.11n TurboQAMup to600Mbps
802.11ac: up to 1300Mbps
- xDSL Data Rate
VDSL2/ADSL2+/ADSL2/ADSL multimode
Up to 100Mbps/100Mbps upstream/downstream
Support Annex A/B/I/J/L/M
Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
VDSL2 interface compliance with ITU-T993.2
G.992.1 (G.dmt), Annex A, and B Compliant
G.992.2 (G.lite), Annex A, and B Compliant
ANSI T1.413 Compliant
G.992.3 (ADSL2) Compliant, Annex A, B, L, and M
G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and M
G.993.2 Compliant, Annex A, B, up to profile 30a with external AFE.
G.993.5 (Vectoring)
ATM and PTM (dual-priority)
- Antenna
External dBi antenna x 3
- LED Indicator
Power, Internet, LAN x 4, xDSL, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi
- Button
WPS Button, Reset Button, Power Button, Wireless on/off Button
- Ports
4 x RJ45 10/100/1000/Gigabits BaseT for LAN
1 x RJ11 for xDSL
- USB Ports
USB 3.0 x 1
- USB Applications
Printer Server
FTP Server
Download Master
3G/4G sharing
- Router Special Features
3G/4G data sharing, AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control
- Operating Frequency
2.4GHz
5GHz
- Operation Channel
13 Europe (ETSI)
- Memory
128MB Flash/256MB DDR3 RAM for WiFi/Router
8MB Flash/64MB DDR2 RAM for xDSL/Modem
- Security
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support
- Management
Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
UPnP IGD 1.0
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log &Trace function
- Utilities
Download master
- support BT, NZB, HTTP, ED2K
- support encryption, DHT, PEX and magnet link
- upload and download bandwidth control
- download scheduling
Media server
File server: Samba and FTP server with account management
PPTP VPN server
Network map
Traffic monitor
- VPN Support
IPSec Pass-Throuth
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
- Power Adapter
AC Input : 100 ~240 V(50~60HZ)
DC Output : 19 V/1.75 A
- Certificates
CE
- Dimensions
220 x 83.3 x 160 mm (WxDxH)
- Weight
640 g (Device Only)
- OS Support
Windows 8 , 32bit/64bit
Windows 7 , 32bit/64bit
Windows Vista , 32bit/64bit
Windows XP , 32bit/64bit
Mac OS X
Linux
- Package Content
DSL-AC68U Dual-band Wireless-AC1900 VDSL/ADSL Modem Router
RJ-45 cable
RJ-11 cable
Support CD(User manual and utility)
Power adapter
Warranty card
Quick start guide
Splitter (varies with regions)
