| Model: |

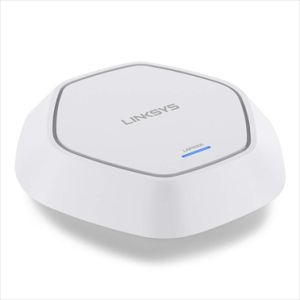

LAPN300 |
| Standards: |
IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.3af, and 802.3at |
| Frequency: |
2.4 GHz |
| MIMO: |
2 x 2 |
| Antenna: |
Internal Antenna |
| RF Output Power: |
High Power PA |
| Installation Options: |
Ceiling Mount, Wall Mount or Desktop |
| Ethernet Port: |
1, Gigabit Ethernet Port |
| Security Lock: |
Kensington lock slot |
| LED: |
One system LED |
| AC Power Adapter: |
12V/1A |
| Hardware Reset Button: |
Yes |
| Frequency Band and Operating Channels: |
2.412 to 2.462 GHz; 11 channels |
| Antenna Gain in dBi: |
1.8 dBi |
| Transmitted Power: |
802.11b @ 11 Mbps: 21 dBm
802.11g @ 54 Mbps: 20 dBm
802.11n @ HT20HT40, MCS7/15: 19 dBm |
| Receiver Sensitivity: |
802.11b @ 11 Mbps: -85 dBm
802.11g @ 54 Mbps: -70 dBm
802.11n @ HT20 MCS7/15: -65 dBm
802.11n @ HT40 MCS7/15: -62 dBm |
| Physical Dimension (L x W x H): |
243.08 x 236.98 x 43.69 mm
(9.57 x 9.33 x 1.72 in |
| Weight: |
489.88 g (1.08 lb) |
| Maximum Power Consumption: |
12.5W |
| Compliance: |
Class B, Wireless |
| Operating Temperature |
0 to 40 C (32 to 104F) |
| Storage Temperature: |
-20 to 70C (-4 to 158F) |
| Operating Humidity: |
10% to 85% (non-condensing) |
| Storage Humidity: |
10% to 90% (non-condensing) |
| Regulatory Certification: |
FCC, CE, IC |
| Warranty Period: |
Limited Lifetime |
| VLAN Support: |
Yes, 802.1q-based VLAN |
| Number of VLANS: |
9, 1 management VLAN plus 8 VLANs for SSID |
| SSID to VLAN Mapping: |
Yes |
| Workgroup Bridge: |
Yes |
| IPv6 |
Path MTU discovery (RFC1981)
Internet Protocol v6 -IPv6 (RFC2460)
IPv6 Neighbor Discovery (ND) (RFC2461)
IPv6 Stateless Address auto-configuration (RFC2462)
Dynamic Host Configuration Protocol for IPv6 (DHCPv6) (RFC 3315)
ICMPv6: Internet Control Message Protocol v6 ICMPv6 RFC2643
IPv6 Address architecture RFC3513
Default address selection RFC3484
Transmission of IPv6 Packets over Ethernet Networks (RFC 2464)
IPv6 Node - RFC4294
Dual IPv4/IPv6 stack |
| WEP, WPA, WPA2: |
Yes, Enterprise authentication is included |
| Access Control: |
Yes, MAC based ACL with local or remote RADIUS server authentication |
| Rogue AP Detection: |
Yes |
| 802.1X Supplicant: |
Yes |
| Channel Isolation: |
Yes |
| WMM: |
Yes |
| Rate Limit: |
Yes, Bandwidth Management per SSID |
| Scheduler: |
Yes, Time-based profiles per SSID |
| Management Interface: |
Web Browser, SNMP |
| Event Notification: |
Local Log, Remote Syslog, and Email Alert |
| Network Diagnostics: |
Log, Ping, Packet Capture |
| Warranty and Support: |
Lifetime limited warranty |
| Package Contents: |
Linksys LAPN300 |
Networking
