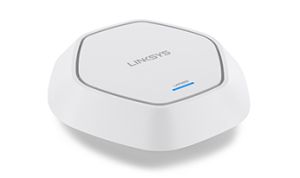

LINKSYS LAPN600

Wireless-N600 Dual Band Access Point with PoE

OVERVIEW

  • Integrated Power over Ethernet
  • Dual Band (2.4 GHz + 5 GHz) capability and speeds up to 600 Mbps
  • Industrial-strength Wi-Fi Protected Access (WPA, WPA2) security and data encryption
  • IPv6 Support

Features


FAST TRANSFER RATE

Provides high-speed connectivity at transfer rates of up to 600 Mbps for notebooks, smartphones, tablets, and other Wi-Fi enabled devices. With a Gigabit Ethernet port, wireless clients can enjoy the fastest speeds possible by maximizing wireless-to-wired performance.


OPTIMAL WIRELESS COVERAGE

The Linksys Wireless-N Access Point offers high power for better, wider wireless coverage for you and your business, strengthening your network connection in hard-to-reach areas.


FLEXIBLE DEPLOYMENT

Supports deployment as a traditional access point or set up as a workgroup bridge to extend your wireless range coverage.


EASY TO USE

Integrated with 802.3af/at PoE capability to eliminate external adapters and facilitate optimal placement.


ADVANCED SECURITY

Protect your network with advanced security features including Rogue AP detection, SSID to VLAN mapping, and 802.1X Supplicant.

Specifications

Model: LAPN600
Standards: IEEE 802.11n, 802.11g, 802.11b, 802.11a, 802.3, 802.3u, and 802.3at
Frequency: Concurrent Dual-Band 2.4 GHz and 5 GHz
MIMO: 2 x 2
Antenna: Internal Antenna
RF Output Power: High Power PA High Power PA
PoE: 802.3at
Installation Options: Ceiling Mount, Wall Mount or Desktop
Ethernet Port: 1, Gigabit Ethernet Port
Security Lock: Kensington lock slot
LED: One system LED
AC Power Adapter: 12V/1.5A
Hardware Reset Button: Yes
Frequency Band and Operating Channels: 2.412 to 2.462 GHz; 11 channels
5.180 to 5.240 GHz; 4 channels
5.745 to 5.825 GHz; 5 channels
Antenna Gain in dBi: 1.8 dBi @ 2.4 GHz 3.5 dBi @ 5 GHz
Transmitted Power: 802.11b @ 11 Mbps: 21 dBm
802.11g @ 54 Mbps: 20 dBm
802.11n @ HT20HT40, MCS7/15: 19 dBm
Receiver Sensitivity: 802.11b @ 11 Mbps: -85 dBm
802.11g @ 54 Mbps: -70 dBm
802.11n @ HT20 MCS7/15: -65 dBm
802.11n @ HT40 MCS7/15: -62 dBm
Physical Dimension (L x W x H): 243.08 x 236.98 x 43.69 mm
(9.57 x 9.33 x 1.72 in
Weight: 498.95 g (1.10 lb)
Maximum Power Consumption: 17W
Compliance: Class B, Wireless
Operating Temperature 0 to 40 C (32 to 104F)
Storage Temperature: -20 to 70C (-4 to 158F)
Operating Humidity: 10% to 85% (non-condensing)
Storage Humidity: 10% to 90% (non-condensing)
Regulatory Certification: FCC, CE, IC
Warranty Period: Limited Lifetime
VLAN Support: Yes, 802.1q-based VLAN
Number of VLANS: 17, 1 management VLAN plus 16 VLANs for SSID
SSID to VLAN Mapping: Yes
Workgroup Bridge: Yes
IPv6 Path MTU discovery (RFC1981)
Internet Protocol v6 -IPv6 (RFC2460)
IPv6 Neighbor Discovery (ND) (RFC2461)
IPv6 Stateless Address auto-configuration (RFC2462)
Dynamic Host Configuration Protocol for IPv6 (DHCPv6) (RFC 3315)
ICMPv6: Internet Control Message Protocol v6 ICMPv6 RFC2643
IPv6 Address architecture RFC3513
Default address selection RFC3484
Transmission of IPv6 Packets over Ethernet Networks (RFC 2464)
IPv6 Node - RFC4294
Dual IPv4/IPv6 stack
WEP, WPA, WPA2: Yes, Enterprise authentication is included
Access Control: Yes, MAC based ACL with local or remote RADIUS server authentication
Rogue AP Detection: Yes
802.1X Supplicant: Yes
Channel Isolation: Yes
WMM: Yes
Rate Limit: Yes, Bandwidth Management per SSID
Scheduler: Yes, Time-based profiles per SSID
Band Steering: Yes
Management Interface: Web Browser, SNMP
Event Notification: Local Log, Remote Syslog, and Email Alert
Network Diagnostics: Log, Ping, Packet Capture
Warranty and Support: Lifetime limited warranty
Package Contents: Linksys LAPN600
