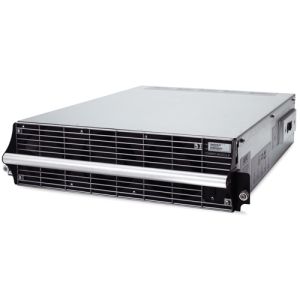

APC SYPM10K16H Symmetra PX Power Module - 10/16KW,400V, 3U Rackmount

IMG 1 of 1
Our Price:
$11,687.40
RRP:
$14,000.00
You Save:
$2,312.60
or quickly purchase this product
Backorder
Part Number:
366985
(?) Brand:
APC Web Site
Manuf No:
SYPM10K16H
Shipping Weight:
31.55 KG (Includes product packaging)
Estimate Shipping
Date Added:
30/7/2014
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
SYPM10K16H, 1022754, 731304252153

Symmetra Power Module


APC Symmetra PX Power Module, 10/16kW, 400V

SYPM10K16H

A 16kW high efficiency power module for the Symmetra PX160kW & PX48kW. This power module is backward compatible with the SYPM10KH module and will autodetect to deliver only 10kW of power protection if installed in a PX80kW, 40KW or 20kW all-in-one.

Product Overview

SYPM10K16H Features

Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Modular design
Increases adaptability with an open architecture configurable to any IT environment.

Specifications


Output

Output Power Capacity
16kW /16 kVA
Max Configurable Power
16kW /16 kVA
Nominal Output Voltage
230V, 400V 3PH
Output Voltage Note
Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Efficiency at Full Load
95.0%
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Crest Factor
Unlimited
Topology
Double Conversion Online
Output Connections
(1) Hard Wire 5-wire (3PH + N + G)
Output Voltage Tolerance
+/-1% static and +/- 5% at 100% load step
Output Voltage THD
< 2% for 0 to 100% linear load and < 6% for full non linear load
Overload Operation
10 minutes @ 125% and 60 seconds @ 150%
Efficiency at Half Load
95.0%

Input

Nominal Input Voltage
400V 3PH
Input Frequency
40 - 70 Hz
Input Connections
Hard Wire 5-wire (3PH + N + G)
Input voltage range for main operations
340 - 477V
Maximum Input Current
33A
Maximum Short Circuit Withstand (Icw)
30.0kA
Input Total Harmonic Distortion
Less than 5% for full load

Physical

Maximum Height
132.00mm
Maximum Width
483.00mm
Maximum Depth
700.00mm
Rack Height
3U
Net Weight
28.50KG
Shipping Weight
31.55KG
Shipping Height
225.00mm
Shipping Width
595.00mm
Shipping Depth
700.00mm
Units per Pallet
8.00

Environmental

Operating Environment
0 - 40C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-999.9meters
Storage Temperature
-15 - 40C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-4500meters
Audible noise at 1 meter from surface of unit
63.00dBA
Online Thermal Dissipation
2573.00BTU/hr
Protection Class
NEMA 1

Conformance

Regulatory Approvals
CE, EN 50091-1, EN 50091-3, FCC Part 15 Class A, VFI-SS-111
Standard Warranty
1 year repair or replace
