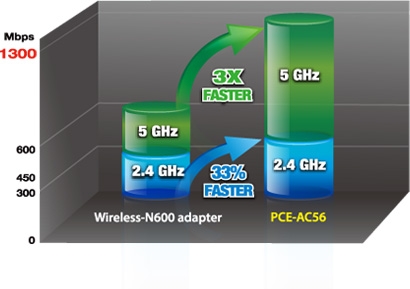

Fastest Wi-Fi standard: 802.11ac
The PCE-AC56 uses Broadcoms new 5th generation Wi-Fi 802.11ac chipset to reach speeds of up to 867 Mbps through the 5 GHz band, which is three times faster than 802.11n Wi-Fi. At the same time, it maintains full backward compatibility with all previous Wi-Fi protocols, providing high performance two-way transmission while ensuring a smooth transition to 802.11ac and seamless interconnection with existing devices.

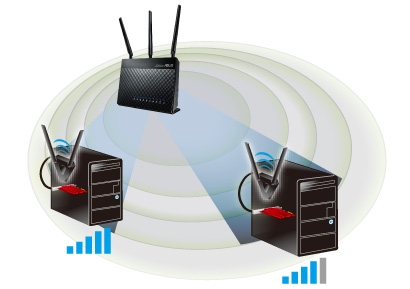

Extend and strengthen your wireless connection
ASUS AiRadar intelligently strengthens wireless connectivity using 802.11ac beamforming technology, high power amplification, and exclusive ASUS RF fine-tuning. This ensures extended coverage, dynamic data speed increases, and enhanced stability.
No more dead zones with 150% better coverage!
A powerful signal-boosting high-gain design gives the PCE-AC56 improved signal transmission that extends Wi-Fi range and coverage by up to 150% compared to generic client devices. This extended coverage minimizes the possibility of dead spots at any location, offering fast and uninterrupted HD streaming and smooth multiplayer gaming throughout the home or office.
Verified by ASUS internal test. Actual performance may vary as a result of network conditions and environmental factors.
Instant Wi-Fi upgrade for desktops
With its PCI Express interface, the PCE-AC56 plugs into any motherboard to give your desktop an instant 802.11ac Wi-Fi upgrade, with access to speeds of up to 1.3 Gbps. As it connects directly to the motherboard, there are no messy cables to clutter your computing environment, and no dedicated power supply is required.

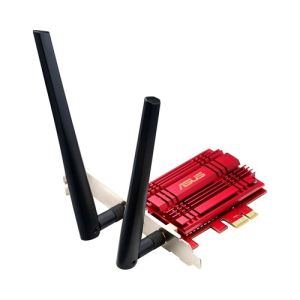

Stylish Aluminum heasink handles heat for extra stability
The added heatsink uses highly-conductive aluminum to remove heat from the chipset, ensuring greater reliability for non-stop operation. Lower temperatures translate into a more stable device in all climate conditions, even during hot summers, and greater stability means more consistent connectivity and longer product lifespan. Plus, the heatsink has been crafted for a stylish look, once more showing ASUS always goes beyond the spec.
Specifications
- Network Standard
IEEE 802.11a/b/g/n/ac
- Interface
PCI Express
- Antenna
2 x R SMA Antenna
- Operating Frequency
2.4GHz/5GHz
- Operation Channel
11 for N. America, 13 Europe (ETSI)
- Product Segment
AC1300 enhanced AC performance with TurboQAM; 400+867Mbps
- Data Rate
802.11a/b/g/n/ac : downlink up to 1300Mbps, uplink up to 1300Mbps (20/40/80MHz)
- Modulation
64QAM, 16QAM, CCK, DQPSK, DBPSK, OFDM
- Management
Wireless Configuration
- Utilities
Wireless setting
- Security
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPS support
- Certificates
CE, FCC, C-Tick, IC
- Dimensions
120.9 x 99.1 x 21.6 mm (LxWxH)
- Weight
105 g (Device Only)
- Environmental
Operating Temperature: 0 C to 40 C ( F to F)
Storage Temperature: -20 to 65 C ( F to F)
Operating Humidity: 10 % to 90 % (Non-condensing)
Storage Humidity: 10 % to 90 % (Non-condensing)
- OS Support
Windows 8.1 , 32bit/64bit
Windows 8 , 32bit/64bit
Windows 7 , 32bit/64bit
Windows Vista , 32bit/64bit
Windows XP , 32bit/64bit
- Package Content
Dipole Antenna x 2
External magnetic antenna base
Low Profile Bracket
Support CD
Warranty card
Wireless LAN Adapter
