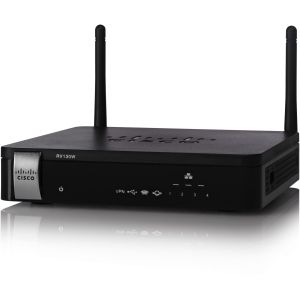

Cisco RV130W Wireless-N Multifunction VPN Router

High-Performance, Multifunction Connectivity

Product Overview

The Cisco RV130W Wireless-N Multifunction VPN Router is an easy-to-use, flexible, high-performance device well suited for small businesses. It delivers highly secure, broadband, wired and wireless connectivity to small offices and remote employees. It can also be used either as a standalone wireless router, access point, bridge or repeater for flexible deployments, offering investment protection as your business needs evolve.

Features and Benefits


 High-performance Gigabit Ethernet ports, enabling large file transfers and multiple users

 USB port for 3G/4G modem failover or alternative primary connectivity

 IP Security (IPsec) site-to-site VPN helps enables secure connectivity for remote employees and multiple offices

 Strong security: Proven stateful packet inspection (SPI) firewall and hardware encryption

 Easy to set up and use with wizard-based configuration



In a dynamic business environment, your network needs to be more powerful, flexible, and accessible than ever. Your employees need the ability to stay connected to the people and services they need - inside and outside the office. And your network needs the agility to meet constantly changing business needs.



The Cisco RV130W Multifunction VPN Router delivers highly secure broadband connectivity, high-speed wireless networking, and remote access for multiple offices and remote workers. Built for maximum flexibility, it delivers a comprehensive combination of business-class features and ease of use in a scalable solution that is priced for small businesses.



The Cisco RV130W features a built-in 4-port Gigabit Ethernet managed switch that lets you connect network devices and transfer files and data at high speed, providing the power and performance you need to keep multiple employees productive. Intelligent quality of service (QoS) features let you prioritize network traffic to keep critical network applications like voice and video running at their best.



To provide untethered connectivity to employees throughout the office, the Cisco RV130W also includes support for wireless-N technology. This multifunction device can serve either as a wireless router, wireless access point, wireless bridge, or repeater, providing investment protection and flexibility when business needs change. You can get started using the RV130W in the way that best meets your needs, then change modes, and repurpose the solution as your business and network grow, resulting in maximum return on your technology investment.



For employees who need to connect from home, on the road, or from remote offices, the Cisco RV130W features integrated enterprise-class encryption and authentication, including support for IPsec and Point-to-Point Tunneling Protocol (PPTP) VPN client connections and IPsec gateway-to-gateway VPN tunnels. Advanced virtual network support lets you set up wireless guest access hotspots to provide highly secure connectivity to clients and visitors.



Easy to set up and use right out of the box, both solutions feature simple wizard-based configuration to get you up and running in minutes.



Like the RV215W, the Cisco RV130W has a USB port to enable 3G and 4G WAN failover connectivity that is also perfect for remote regions or temporary connectivity. This multi-use router is a cost-effective way to provide business-class performance, security, and reliability your employees need today, with the flexibility to change as your business evolves.



Product Specifications



Table 1 lists the product specifications for the Cisco RV130W.



Table 1. Product Specifications



Specifications

Description

Standards

IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1D, 802.1p, 802.1w (Rapid Spanning Tree) 802.1X (security authentication), 802.1Q (VLAN), 802.11i (Wi-Fi Protected Access [WPA2] security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723)

Ports

LAN, WAN, USB

Switch

Power button (on/off)

Buttons

Reset

Cabling Type

Category 5e or better

LEDs

Power, VPN, USB, WAN, Wireless, LAN (ports 1-4)

Operating System

Linux

Network

Network Protocols

 Dynamic Host Configuration Protocol (DHCP) server
 Point-to-Point Protocol over Ethernet (PPPoE)
 Point-to-Point Tunneling Protocol (PPTP)
 Layer 2 Tunneling Protocol (L2TP)
 DNS proxy
 DHCP relay agent
 IGMP proxy and multicast forwarding
 Rapid Spanning Tree Protocol (RSTP)
 Dynamic Domain Name System (TZO, DynDNS, 3322.org, NOIP)
 Network Address Translation (NAT), Port Address Translation (PAT)
 One-to-One NAT
 Port management
 Port mirroring
 Software configurable DMZ to any LAN IP address
 Session Initiation Protocol (SIP) Application Layer Gateways (ALG)

LAN

 Four (4) 10/100/1000 Mbps Gigabit LAN ports with managed switch

WAN

 Single (1) 10/100/1000 Mbps Gigabit WAN port

WLAN

 Built-in high-speed 802.11n wireless access point

Routing Protocols

 Static routing
 Dynamic routing
 RIP v1 and v2
 Inter-VLAN routing

Network Address Translation (NAT)

Port Address Translation (PAT), Network Address Port Translation (NAPT) protocol

VLAN Support

Port-based and 802.1Q tag-based VLANs

Number of VLANs

5 active VLANs (3-4096 range)

IPv6

 Dual-stack IPv4 and IPv6
 6to4 tunneling
 Stateless address auto-configuration
 DHCPv6 Server for IPv6 Clients on LAN
 DHCP v6 client for WAN connectivity
 Internet Control Message Protocol (ICMP) v6
 Static IPv6 Routing
 Dynamic IPv6 Routing with RIPng

Network Edge (DMZ)

Software configurable to any LAN IP address

Layer 2

802.1Q-based VLANs, 5 active VLANs

Security

Firewall

Stateful packet inspection (SPI) firewall, port forwarding and triggering, denial-of-service (DoS) prevention, software-based DMZ

DoS Attacks Prevented:

 SYN Flood Detect Rate
 Echo Storm
 ICMP Flood
 UDP Flood
 TCP Flood

Block Java, Cookies, Active-X, HTTP Proxy

Access Control

IP access control lists; MAC-based wireless access control

Content Filtering

Static URL blocking or keyword blocking

Secure Management

HTTPS, username/password complexity

WPS

Wi-Fi Protected Setup

User Privileges

2 levels of access: admin and guest

VPN

Gateway-to-gateway IPsec VPN

10 gateway-to-gateway IPSec tunnels

Client-to-gateway IPsec VPN

10 client-to-gateway IPsec tunnels using TheGreenBow and ShrewSoft VPN client

PPTP VPN

10 PPTP tunnels for remote client access

Encryption

Triple Data Encryption Standard (3DES)

Authentication

MD5/SHA1

VPN Pass-through

IPsec/PPTP/Layer 2 Tunneling Protocol (L2TP) pass-through

Quality of Service

QoS

 802.1p port-based priority on LAN port, application-based priority on WAN port
 3 queues
 Differentiated Services Code Point support (DSCP)
 Class of Service (CoS)
 Bandwidth Management for service prioritization

Jumbo Frame

Supports Jumbo Frame on Gigabit ports - at least 1536B

Performance

NAT Throughput

800 Mbps

Concurrent Sessions

12,000

IPsec VPN Throughput
(3DES/AES)

50 Mbps

Configuration

Web User Interface

Simple, browser-based configuration (HTTP/HTTPS)

Management

Management Protocols

Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour, Universal Plug and Play (UPnP)

Event Logging

Local, syslog, email alerts

Network Diagnostics

Ping, Traceroute, and DNS Lookup

Upgradability

Firmware upgradable through web browser, imported/exported configuration file

System Time

Supports NTP, Day Light Savings, Manual entry

Languages

GUI supports English, French, Italian, German, and Spanish

Wireless

Radio and modulation type

802.11b: direct sequence spread spectrum (DSSS), 802.11g: orthogonal frequency division multiplexing (OFDM), 802.11n: OFDM

WLAN

2.4GHz IEEE 802.11n standard-based access point with 802.11b/g compatibility

Operating channels

11 North America, 13 most of Europe, auto channels selection

Wireless isolation

Wireless isolation between clients

External antennas

2 fixed antennas

Antenna gain in dBi

2 dBi

Transmit power

802.11b: 16.5 dBm +/- 1.5 dBm; 802.11g: 15 dBm +/- 1.5 dBm; 802.11n: 12.5 dBm +/- 1.5 dBm

Receiver sensitivity

-87 dBm at 11 Mbps, -71 dBm at 54 Mbps, -68 dBm at mcs15, HT20, -66 dBm at mcs15, HT40

Radio Frequency

Single-band, works on 2.4GHz

Wireless Domain Service (WDS)

Allows wireless signals to be repeated by up to 4 compatible devices

Operating Modes

Multifunction device-wireless router, access point mode with WDS, Point-to-Point Bridge mode with WDS, Point-Multi Point Bridge mode with WDS, Repeater mode with WDS

Active WLAN clients

Support up to 64 concurrent clients in wireless router mode and wireless Access Point mode

Multiple SSIDs

Supports multiple Service Set Identifiers (SSIDs), up to 4 separate virtual networks

Wireless VLAN map

Supports SSID to VLAN mapping with wireless client isolation

WLAN security

Wired Equivalent Privacy (WEP), WPA, WPA2-PSK, WPA2-ENT, 802.11i

Wi-Fi Multimedia (WMM)

WMM, WMM power save (WMM-PS)

Environmental

Power

12V 2A

Certifications

FCC class B, CE, IC, Wi-Fi

Operating temperature

0 to 40C (32 to 104F)

Storage temperature

-20 to 70C (-4 to 158F)

Operating humidity

10 to 85 percent noncondensing

Storage humidity


Warranty Information

This Cisco Small Business product comes with a limited lifetime hardware warranty. Product warranty terms and other information applicable to Cisco products are available at https://www.cisco.com/go/warranty.
Cisco Small Business Support Service

The Small Business Support Service is a device-level service agreement that expands and enhances the technical support exclusively for Cisco Small Business Products. Buying the service extends phone support to three years; adds next-business-day, advance product replacement; and expands Cisco phone support from eight hours, five days a week to 24-hours, seven days a week.

Ordering Information

To place an order, visit the Cisco Ordering Home Page.


Warranty Information

This Cisco Small Business product comes with a limited lifetime hardware warranty. Product warranty terms and other information applicable to Cisco products are available at https://www.cisco.com/go/warranty.

Cisco Small Business Support Service

The Small Business Support Service is a device-level service agreement that expands and enhances the technical support exclusively for Cisco Small Business Products. Buying the service extends phone support to three years; adds next-business-day, advance product replacement; and expands Cisco phone support from eight hours, five days a week to 24-hours, seven days a week.

Ordering Information

To place an order, visit the Cisco Ordering Home Page.

Table 2. Ordering Information

Part Number

Product Name

Countries

RV130W-A-K9-NA

Cisco RV130W Multifunction VPN Router

Unites States, Canada, Brazil, Mexico

RV130W-E-K9-G5

EU, Russia, India, Korea, Hong Kong, Indonesia, Malaysia, Philippines, Singapore, Thailand, Vietnam

RV130W-A-K9-AR

Argentina

RV130W-E-K9-CN

China

RV130W-A-K9-AU

Australia, New Zealand

Part Number

Product Name

Countries

RV130W-A-K9-NA

Cisco RV130W Multifunction VPN Router

Unites States, Canada, Brazil, Mexico

RV130W-E-K9-G5

EU, Russia, India, Korea, Hong Kong, Indonesia, Malaysia, Philippines, Singapore, Thailand, Vietnam

RV130W-A-K9-AR

Argentina

RV130W-E-K9-CN

China

RV130W-A-K9-AU

Australia, New Zealand
