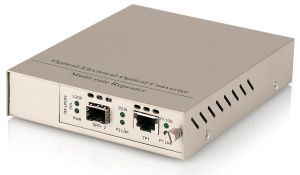

Serveredge MDC-10BT-10GSFP 10G SFP+ Media Converter

IMG 1 of 1
No Longer Available
Part Number:
380138
(?) Brand:
Serveredge
Manuf No:
MDC-10BT-10GSFP
MDC10BT10GSFP
Shipping Weight:
1.1 KG (Includes product packaging)
Estimate Shipping
Date Added:
28/11/2014
Details Files Finance Images & Video
All stock codes associated to this product
MDC10BT10GSFP, MDC-10BT-10GSFP

Serveredge 10G SFP+ Media Converter


MDC-10BT-10GSFP


This Serveredge media converter is used for connecting 10Gbps Ethernet equipments to 10Gbps Fibre channel. This allows long distance transmission and fibre to Copper Conversion as well. This media converter can be used in variety of network backbones such as SAN,LAN & MAN. Normally used in TeleCommunication room,R&D Laboratory, Data Center etc

Product Specifications


Performance Data

Technical Indexes

Transmission Speed

10Gb/s

Protocols

IEEE802.3an(10Gbase-T),IEEE802.3ae(10Gbase-SR/LR/ER/ZR)

Access Type

10G LAN

Interface Type

Type: RJ45 To/From SFP+

Transmission Distance

SFP+ module: Up to 80Km

10Gbase-T: 100meters Cat6a cable

Maximum Packet Forwarding Rate

14,880,950/S

Network management information

Card type information

SFP+ fiber module detection

SFP+ fiber module DMI function Temperature Voltage Optical power

Link status detector

Enable/Disabled Loopback test function

UTP cable length detection only RJ45 interface

Remote card's status monitor( only in pairs)

Power requirement

Rack-mountable : AC 85 220V OR DC -48V

Standalone: AC 220V OR DC -48V

Power consumption: 9W

Work Environment

Operating Temp: 0~ 50

Storage Temp: -10~ 70

Humidity: 5%~90% Non-condensing)

Dimension

Card 11.5mm W 78mm D

Standalone 156mm W 128mm D 32mm H


Product Features

  • Support Jumbo Frame
  • Transparent Transport and very low delay
  • Support ITUT prescribed  DWDM/CWDM wavelength
  • Support DMI function for SFP+ fiber module
  • Support Loopback test function
  • Economic In-band Management function powerful Network Management function(Web,SNMP,Console)
  • Support hot plugging
  • Support 2U Rack (16 channel) and standalone use
  • Full State Led display
  • Easy installation
  • UTP cable length detection(only RJ45 interface)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base
