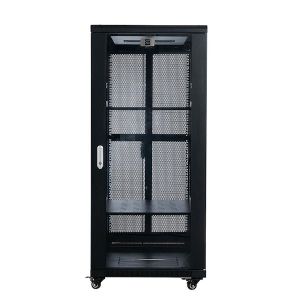

Serveredge CBN-27RU-66FSAV fully assembled rack enclosure is a perfect solution for securely storing your high-density server & standard rack mount equipments in data centres and standard computer room environments. This premium Serveredge Cabinet is packed with features designed to simplify rack equipment installations and rack equipment maintenance: top-panel cable routing ports, perforated doors to promote efficient airflow, adjustable mounting rails, vertical PDU mounting and more. The CBN-27RU-66FSAV fully ships fully assembled for quick installation and comes with a manufacturer 25-year warranty.

Product Specifications

Package Includes:

CBN-27RU-66FS Free Standing Server cabinet
40 X M6 Screws, Cage Nuts & Washers
2 X Keys
2 X Shelves
1 X 12 Way Vertical PDU
2 X Cable Trays
1 X 2 Way Fan Kit
4 x Castors
4 x Stabilising feet
1 x Earth bolt
Owner's Manual
Optional Mesh Door

Physical Specifications:

Installed whole system maximum rack depth (mm): 450.00
Rack Height: 27RU
Shipping Dimensions (WDH/mm): 665*665*1390
Shipping weight (kg): 85
Unit Dimensions (WDH/mm): 600*600*1355
Unit weight (kg): 87
Color: Black
Weight Capacity - Stationary (kg): 800
Grounding lug
Front and Back door frames

Product Features

Premium Server cabinet for rack equipment in IT and Audio Visual, Security etc environments, it provides 27RU of rack space; 1000Kg of stationary load capacity
Ships fully assembled for quick installation
Locking, reversible front door and locking, removable side panels
Fully assembled for quick installation
Confirm to Standard ANSI/EIA RS-310-D, IEC297-2, DIN4191; PART1, DIN4194;PAT7, GB/T3047M 2-92
25-year warranty
