All stock codes associated to this product
EGS5110P
EGS5110P
- 8 Gigabit ports with IEEE 802.3at/af PoE support
- 2 SFP slots
- 130w PoE Budget
- PoE Management
- Loopback Detection
- IGMP Snooping
- Bandwidth Control
Description
The EGS5110P is a Smart PoE+ Switch that offers 8 Gigabit ports with IEEE802.3at/af PoE Support on all its ports and 2 SFP slots for fiber uplinks. The switch delivers up to 30 watts per port over connected Ethernet cables to powered devices for a total PoE budget of 130 watts. It also supports VLAN, QoS and IGMP Snooping features for priority based application, such as IP surveillance or video/voice transitions. It also offers PoE Management on all its Gigabit ports and priority-base configuration.
EnGenius Smart PoE (Power-over-Ethernet) Gigabit Switches are specifically designed to meet the needs of start-up and small-to-medium sized businesses. For companies that need a way to connect and power VoIP phone systems, IP Cameras and Wireless Access Points throughout their facilities, these robust and fully-managed, yet cost-effective switches will help to keep their employees connected, safe and productive.
EnGenius switches also include embedded QoS intelligence to prioritize delay-sensitive services such as voice and video, simplify unified communications deployments, and help ensure consistent network performance for all services. For example, automated voice VLAN capabilities let you plug any IP phone into your IP telephony network and receive an immediate dial tone.
Feature
EnGenius Smart PoE Switch family is special tailored for Wireless Access Points and IP Surveillance applications
EGS5110P, one of the members from EnGenius Smart PoE Switch family, it offers 8-Gigabit ports and 2 SFP slot for fiber connection.
Simple but powerful
EGS5110P supports Power-over-Ethernet (PoE) on all ports, which compliant with IEEE802.3af/at standards, delivering up to 30 watts along with the connected Ethernet cables to powered devices.
Manageability
The EGS5110P support VLAN, QoS and IGMP Snooping features for priority based application, such as IP surveillance or video/voice transitions. Moreover, it offers PoE Management on ports or even priority-base configuration.
Application
Spec.
|
General Feature:
Switching Capacity: 20Gbps
Max. Forwarding Rate (64kBytes): 14.88Mpps
Forwarding Mode: Store and Forward
Packet Buffer memory: 512KB
Flash Memory: 4MB
Port Functions
8 10/100/1000Mbps Ports in the front panel
2 SFP ports in the front panel
PoE Capability
PoE standard: Port 1~8 Support IEEE 802.3af/at
PoE Capable Ports: Port 1~8 can output up to 30W
Power budget: 130Watts
LED Indicator
Device:
Power LED x1
Fault LED x1
PoE Max LED x1
LAN Mode LED x1
PoE Mode LED x1
Copper Ports: LAN/PoE Mode, Link/Act
SFP Ports: Link/Act
|
Physical & Environment
Dimension: 330mm x 230mm x 44mm (13)
Operating Temperature: 0 ~ 50C
Storage Temperature: -40~70C
Humidity: 5 ~ 95% non-condensing
L2 Features
Loopback Detection
IGMP Snooping v1/v2
Port Trunking
Port Mirroring: one to one and many to one
Static MAC Address
Dynamic MAC List
Bandwidth Control
IEEE802.1Q VLAN
Port-base VLAN
Storm Control
PoE management
Power on/off per port
Power class configuration
Power feeding with priority
User define power limit
BootP/DHCP Client
Firmware Burn-Proof
Cable Diagnostic
|

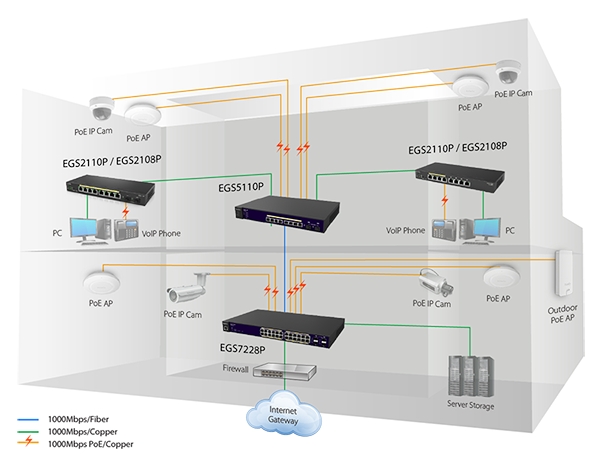

Networking
