All stock codes associated to this product
NP127, NP127 , 9317773016482, 9317773017106
The AC750 WiFi Extender is the perfect product to combat weak wireless signals in the home or office. The AC750 WiFi Extender features the latest 802.11ac WiFi technology that can put an end to unstable, inconsistent or non-existent wireless signals. Working as a wireless repeater for existing wireless networks, you can extend the reach of your WiFi into previously hard to reach areas. The unobtrusive device connects directly to the wall, features 5 signal strength LEDs that guide you into the best location, has a WPS button for easy pairing with wireless clients and advanced wireless security features.
Two devices in one
With its 2 in 1 functionality the AC750 WiFi Extender abolishes ineffective wireless signals on any wireless network.
1. Wireless repeater. Extend and strengthen your existing wireless signal by transforming it into a wireless network with the power to reach the far corners of the home or office.
2. Wireless access point. If you don't have wireless connectivity simply connect the AC750 WiFi Extender directly into your modem/router via an Ethernet cable to achieve a powerful wireless signal throughout the home or office.
AC Dual Band WiFi
You can extend the reach of your 2.4GHz and 5GHz WiFi network at the same time. The 2.4GHz WiFi will work with all legacy 802.11n WiFi clients, which make up the majority of devices. The 5GHz WiFi will work with all new and more recent wireless clients that feature the high speed 802.11ac technology. The NP127 will pick up existing weak WiFi signals and redistribute a strong WiFi signal for users to connect to. An ideal solution for non-existent, unstable or inconsistent WiFi signals in upstairs bedrooms, living rooms at the other end of the house or far corner offices.

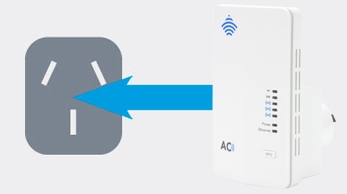

Connects directly to the wall
The compact AC WiFi Extender discreetly plugs into any wall in the house to eliminate wireless voids without consuming valuable space.
Technical Specifications
STANDARDS
Wireless
- 2.4GHz - IEEE 802.11n/g/b
- 5GHz - IEEE 802.11ac/a
Ethernet
- IEEE802.3 10/100, IEEE802.3u, IEEE802.3ab
NETWORK SUPPORT
- OFDM 1024/256/64/16/8 QAM, QPSK, BPSK and ROBO Modulation Scheme Wireless
- IEEE802.11n: BPSK, QPSK, QAM-16, QAM-64
- IEEE802.11g: BPSK, QPSK, QAM-16, QAM-64
- IEEE802.11b: CCK, QPSK, BPSK
SECURITY
- Wireless: 64/128-bit WEP, WPA, WPA2
HARDWARE
- Key Chipset: MT7620A + 7610E
- SPI FlashRom: 4MB
- SDRAM: 64MB
OPERATING SYSTEMS
- OS Independent with TCP/IP protocol installed
POWER REQUIREMENTS
- Supply voltage range: 220VAC - 240VAC (50/60Hz)
- Connects directly to wall
LED INDICATORS
- 1 x Power LED
- 1 x Ethernet LED
- 5 x Signal strength LEDs
EXTERNAL CONNECTORS
- 1 x RJ45 for 10/100 Base T-LAN
- 1 x Reset button
- 1 x On/Off Switch
- 1 x WPS Button
MEASUREMENTS
- 118( h) x 67(w) x 67(d)mm
- 165g / adapter
ENVIRONMENTAL TEMPERATURE
- Operating: 0C to 40C
- Non-Operating: -40C to 70C
HUMIDITY
- Operating: 10% to 90% relative humidity (non-condensing)
- Non-Operating: 5% to 95% relative humidity (non-condensing)
REGULATORY APPROVAL
Specifications are subject to change without notice
Available in selected regions.
