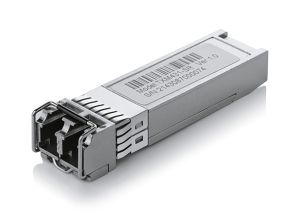

TP-Link TXM431-SR 10GBase-SR SFP+ LC Transceiver

IMG 1 of 1
No Longer Available
Part Number:
397108
(?) Brand:
TP-Link
Manuf No:
TXM431-SR
TXM431SR
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
5/8/2015
Details Files Images & Video
All stock codes associated to this product
TXM431SR, TXM431-SR, NWTLTXM431SR, NWTL-TXM431-SR, 6935364021870
10GBase-SR SFP+ LC Transceiver

TXM431-SR

  • Multi-mode SFP+ LC Transceiver
  • Hot-Pluggable with maximum flexibility
  • Compatible with multiple TP-LINK switch models/SFP+ modules

Features

  • 850nm multi-mode transceiver
  • 300m max distance
  • Supports full duplex
  • LC/UPC Connector
  • 10Gbps Ethernet connectivity
  • SFP+ form factor
  • Hot pluggable

Specifications

Transceiver
Standards and Protocols IEEE 802.3ae, CSMA/CD, TCP/IP
Wave Length 850nm
Power Supply 3.3V
Fiber Type 50/125um or 62.5/125um Multi-mode
Max. Cable Length 300m or 33m
Data Rate 10Gbps
Port Type LC/UPC
Transmission power -1.0dBm(Max)
-7.3dBm(Min)
Reception power -1.0dBm(Max)
-9.9dBm(Min)
Sensitivity -11.1dBm
Safety & Emission FCC, CE
Environment Operating Temperature: 0~70 (32~158)
Storage Temperature: -40~80 (-40~176)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
