iogear Wireless AC600 Dual-Band USB Mini Adapter
GWU635
Description
Wi-Fi USB Mini Adapter with Wireless 802.11ac
The capabilities of legacy WiFi are being surpassed because of the requirements of HD video streaming, large file downloads and intense online gaming. With IOGEARs Wireless AC600 Dual-Band USB Mini adapter you can now enjoy the power of next-generation Wi-Fi technology. Using the latest 802.11ac wireless standard, experience data rates of up to 433Mbps on 5GHz with compatible 802.11ac routers.
Dual-Band 5GHz / 2.4GHz
As more technology products entering the market with Wi-Fi capabilities, your Wi-Fi network is becoming more congested. With the Wireless AC600 Dual-Band USB Mini Adapter, you can enjoy greater bandwidth and less network interference.
- 5GHz band provides 433Mbps which means faster downloads, seamless HD streaming, and robust online gaming.
- 2.4GHz provides up to 150Mbps great for internet surfing, social networking and email.
Wi-Fi Protected Setup (WPS) Support
Enjoy the simplicity of connecting to your network with the push of a button. IOGEAR's Wireless Dual-Band Wi-Fi Adapter supports Wi-Fi Protected Setup (WPS), giving you the capability of conveniently connecting to your network with all your personal security presets.
Features
- 802.11ac Wireless Dual-Band USB Mini Adapter
- Supports speeds of up to 433Mbps on 5GHz and 150Mbps on 2.4GHz networks
- Supports WEP, WPA, WPA2, TKIP, and AES encryption
- Push-button Wi-Fi Protected Setup (WPS) simplifies secure connections to existing Wi-Fi networks
- Works with 802.11a/b/g/n routers and access points
- Convenient LED status indicator
Warranty: 1-YEAR

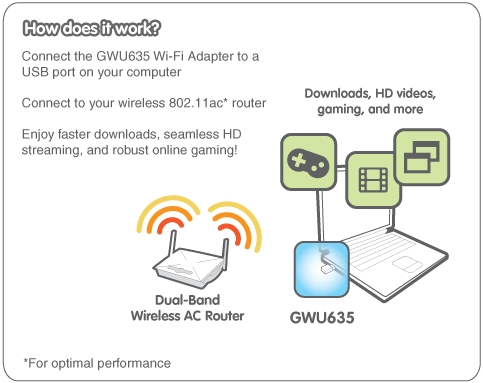

Function Diagram
Requirements
Operating System
- Windows 10,Windows8.1,Windows8, Windows 7, Windows Vista
Hardware
Package Content
- 1 x GWU635 Wireless AC600 Dual-Band USB Mini Adapter
- 1 x Driver Installation CD
- 1 x Quick Start Guide
- 1 x Warranty Card
Specifications
UPC: 881317512833
| Function |
GWU635 |
| Frequency Band |
2.412~2.484GHz 4915 ~ 5850MHz |
| Standards |
IEEE 802.11ac, IEEE802.11a/b/g/n |
| Data Rate |
5GHz: Up to 433Mbps(dynamic); 2.4GHz: Up to 150Mbps (dynamic) |
| Management |
Windows based Utility |
| Security |
64/128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x, WPA-PSK, WPA2-PSK, MAC, WDS |
| Interface |
USB 2.0+ |
| Antenna Type |
1T1R |
| Transmission Power |
<20dBm (EIRP) |
| Sensitivity |
Range: -90dBm ~ -65dBm |
| Modulation |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| LEDs |
| Link |
Green |
| Environment |
| Operation Temperature |
0~40 (32~104) |
| Storage Temperature |
-40~70 (-40~158) |
| Humidity |
Relative Humidity (Operational) 10%~90% non-condensing; Relative Humidity (Storage) 5%~90% non-condensing |
| Operating Range |
100-300m, depending on surrounding environment |
| USB Specification |
USB 2.0 |
| Dimensions |
GWU635 |
| Unit Dimensions |
| Height |
1.125" (2.86cm) |
| Depth |
0.375" (0.95cm) |
| Length |
0.625" (1.59cm) |
| Inner Pack |
| Width |
6.75" (17.15cm) |
| Height |
4.5" (11.43cm) |
| Depth |
7.375" (18.73cm) |
| Inner Pack Qty. |
6 |
| Unit Package Dimensions |
| Width |
3.75" (9.53cm) |
| Height |
6.75" (17.145cm) |
| Depth |
1" (2.54cm) |
| Master Carton |
| Width |
8.5" (21.59cm) |
| Height |
8" (20.32cm) |
| Depth |
10.375" (26.35cm) |
| Master Carton Qty. |
12 |
| Weight |
| Master Carton Wt. |
2.70 lb (1.22 kg) |
| Inner Pack Wt. |
1.00 lb (0.46 kg) |
| Unit Pack Wt. |
0.10 lb (0.06 kg) |
