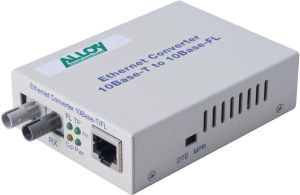

Alloy ECR10ST Ethernet Standalone/Rackmount Media Converter

Ethernet Standalone/Rackmount Media Converter 10Base-T (RJ-45) to 10Base-FL (ST), 2Km



The ECR10ST, an ECR10 Series Ethernet Media Converter, can be used 'Standalone' or installed in an Alloy DCR12 Series Media Converter Chassis. It has a 10Base-T and a 10Base-FL port with a ST connector. Fibre optic cable range is up to 2Km.



The ECR10ST is a dual purpose Fast Ethernet Media Converter. It can be used as a standalone device, or can be installed as a Media Converter Module into any Alloy 12-slot Media Converter Chassis. With a 10Base-T RJ-45 port and a 10Base-FL ST terminated port, the ECR10ST is designed for 10Mbps copper UTP to 10Mbps fibre optic cable segment media conversion applications in legacy Ethernet networks. The RJ-45 port supports Ethernet UTP/STP links at up to a 100 metres range, and the 10Base-FL port has a maximum multimode cable range of up to 2 kilometres.

The ECR10ST is a model from Alloy's ECR10 Series of Dual Purpose Media Converters. As mentioned above, these Converters can be used 'standalone' or installed in an Alloy DCR12 Series Media Converter chassis. In addition to the ECR10R, other models in the series support a 10Mbps RJ-45 copper to 10Base-FL multimode fibre media conversion with either an ST type fibre connectors, supporting a maximum fibre cable range of 2 kilometres, and 10Mbps copper UTP to 10Mbps copper RG-58 Thin coax ('Thinnet') cable. All models in the series are housed in a compact, highly durable all-metal case.

When used in 'standalone' mode as a discrete Media Converter device, all models in the ECR10 Series are powered by an external plugpack, which is supplied with the Converter. All ECR10 Series models have a comprehensive LED suite enabling status monitoring of the Converter. The RJ-45 and 10Base-FL ports on all models can operate in half or full duplex mode, and the RJ-45 port can be manually selected for DTE or MPR type links for connection to computer or switch type devices without utilising crossover UTP cable.



ECR10ST model: 10Base-T copper to 10Base-FL multimode fibre media conversion - 2Km range
Dual Purpose ECR10 Series - use 'standalone' or install in a DCR12 Series Media Converter Chassis
ECR10 Series - media conversion applications for legacy Ethernet networks
SC and ST fibre and BNC Thinnet Coax connector supported on individual ECR10 Series models
Easy 'Slide-in, Hot Swap' installation into DCR12 Media Converter Chassis systems
Compact, rugged all-metal case



ECR10 SERIES CONVERTER SPECIFICATIONS
Implementation and Installation
Dual Purpose Implementation
	Use as a 'Standalone' discrete Media Converter device or
	Install as a Media Converter Module in to any DCR12 Series Media Convert Chassis
Installation in to DCR12 Chassis
	Converters installed in slots 1 to 12 of any DCR12 Series Media Converter Chassis
	Any mix of ECR10 Series Converters can be used as Converter Modules plus
	GCR2000, FCR200, ACR and SCR Converters can also be used as Converter Modules in DCR12 Chassis
	All Converter Series types are 'slide-in, Hot Swap' field/user upgradable devices
Converter Module Speed/Interfaces/Protocol Support/Maximum Range
This model
	ECR10ST: 10Mbps; 10Base-T RJ-45 (100m max) to 100Base-FL with ST connector, 2Km max range
Other models in the ECR10 Series
	ECR10R: 10Mbps; 10Base-T RJ-45 (100m max) to 100Base-2 with BNC connector, 185m per segment
	ECR10SC: 10Mbps; 10Base-T RJ-45 (100m max) to 100Base-FL with SC connector, 2Km max range
Data Transfer Rate
	10Mbps: 14,880pps
Network Interfaces
10Base-2 Ports
	Transmission: Half-Duplex
10Base-T Ports
	Transmission: Full or Half-Duplex
	DTE/DCE manual configuration via selector switch ("DTE/MPR")
10Base-FL (Multimode)
	Transmission: Full or Half-Duplex
	Wavelength: 850nm
Cable Types Supported
	RG-58 coaxial cable ('Thinnet')
	UTP or STP copper: CAT3 or higher
	Multimode fibre: 62.5/125m, 50/125m recommended (other grades may be used)
Mechanical
	Case: compact all-metal enclosure
	Dimensions : 26.2(H) x 94(L) x 70.3(W) mm
LED Indicators
	ECR10SC/ST models: TP Link/Activity, FL Link/Activity, Power, Collision
	ECR10R model: BNC ACT, Power, TP Link/Activity, Collision
Environmental
	Power Requirement : 1A@+5VDC (from Plugpack)
	Ambient Temperature : 0 to 50C
	Humidity : 5% to 90%
Emission and Safety Regulations
	Complies with FCC Part 15 Class A, CE Mark Approval, C-Tick
Standards Compliance
	IEEE 802.3 10Base-T specification
	IEEE 10Base-FL specification
