All stock codes associated to this product
ARCHERT1U, ARCHER-T1U
TP-Link ARCHERT1U AC450 Wireless Nano USB
Adapter
Overview
-
Small,
unobtrusive design allows you to plug it in and forget it is even there
-
Blazing
fast wireless data transmission rates of up to 433Mbps
-
Transmits
on the uncluttered 5GHz band to avoid wireless signal interference
-
Utilizes
802.11ac standard and is backward compatible with 802.11a/n
-
Supports
64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption
standards
What Does This Product Do?
TP-LINK's AC450 Wireless Nano USB Adapter, the Archer T1U allows you to
connect a desktop or laptop computer to a wireless network and achieve speeds of
up to 433Mbps. This miniature adapter is designed to be as convenient and
unobtrusive as possible, while also including attractive features such as
advanced wireless encryption, easy installation, and Soft AP Mode.
Miniature Design - Plug in and forget
The adaptor's size and sleek design allow it to be inserted into any USB port
and left there for extended periods of time. Theres no need to worry about
blocking adjacent USB ports and, because the tiny device sits flush against the
USB port, there is almost no chance that the adapter will fall out when you are
moving or storing your device.

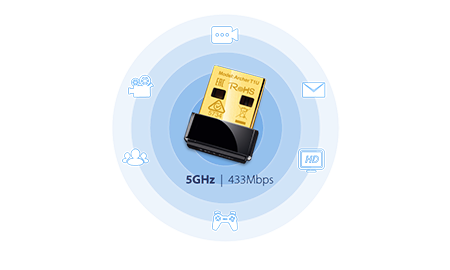

Fast, Stable Wi-Fi
The Archer T1U provides Wi-Fi data transmission rates of up to 433Mbps on the
5GHz band, making it ideal for streaming video and making audio calls over the
Internet. By utilizing the uncluttered 5GHz band, the Archer T1U efficiently
avoids wireless signal interference and ensures a stable Wi-Fi connection.
Soft AP
Mode |
By switching the Archer T1U to Soft AP mode, you will be able to turn any PC
or laptop with a wired connection into a Wi-Fi Hotspot. This allows you to
provide a Wi-Fi connection for all of your other mobile devices.
Specifications
|
HARDWARE
FEATURES |
|
Interfaces |
USB
2.0 |
|
Dimensions (W X D X
H) |
0.73 x 0.59 x 0.28 in.
(18.6 x 15 x 7.1mm) |
|
Antenna |
Internal |
|
LED |
Status |
|
|
|
|
WIRELESS
FEATURES |
|
Wireless
Standards |
IEEE 802.11ac, IEEE
802.11a, IEEE 802.11n |
|
Frequency |
5GHz |
|
Signal
Rate |
5GHz |
|
11ac: Up to
433Mbps(dynamic) |
|
11n: Up to
150Mbps(dynamic) |
|
11a: Up to
54Mbps(dynamic) |
|
|
|
|
Reception
Sensitivity |
5GHz: |
|
11a:
-68dBm |
|
11n HT20:
-64dBm |
|
11n HT40:
-61dBm |
|
11ac HT20:
-59dBm |
|
11ac HT40:
-54dBm |
|
11ac HT80:
-51dBm |
|
Transmit
Power |
5GHz:<21dBm
(EIRP) |
|
Wireless
Modes |
Ad-Hoc / Infrastructure
mode |
|
Wireless
Security |
Support 64/128 bit WEP,
WPA-PSK/WPA2-PSK, 802.1x |
|
Modulation
Technology |
DBPSK, DQPSK, OFDM,
16-QAM, 64-QAM, 256-QAM |
|
|
|
|
OTHERS |
|
Certification |
CE, FCC,
RoHS |
|
Package
Contents |
AC450 Wireless Nano USB
Adapter Archer T1U |
|
Resource
CD |
|
Quick Installation
Guide |
|
System
Requirements |
Windows 8.1/8/7/XP
32/64bits, Mac OS X 10.7~10.10, Linux |
|
Environment |
Operating Temperature:
0~40(32~104) |
|
Storage Temperature:
-40~70 (-40~158) |
|
Operating Humidity:
10%~90% non-condensing |
|
Storage Humidity:
5%~90% non-condensing |
