ARDWARE
FEATURES |
|
Processor |
Qualcomm Atheros
Enterprise AR9350B 560MHz CPU, MIPS 74Kc |
|
Memory |
64MB DDR2 RAM, 8MB
Flash |
|
Interfaces |
1 10/100Mbps Shielded
Ethernet Port |
|
1 10/100Mbps Shielded
Ethernet Port (LAN1) |
|
2
RP-SMA |
|
1 Grounding
Terminal |
|
1 Reset
Button |
|
Power
Supply |
Passive Power over
Ethernet via LAN0 (+4,5pins; -7,8pins) |
|
Voltage range:
16-27VDC |
|
Dimensions (W X D X
H) |
1987540
mm |
|
Protection |
15KV ESD
Protection |
|
6KV Lightning
Protection |
|
Enclosure |
Outdoor ASA stabilized
plastic material |
|
IP65 water and dust
proof Certification |
|
|
|
|
WIRELESS
FEATURES |
|
Wireless
Standards |
IEEE
802.11a/n |
|
Proprietary
Protocol |
TDMA Mode (with Pharos
MAXtream enabled) |
|
Wireless
Speeds |
Up to 300Mbps
(40MHz,Dynamic) |
|
Up to 144.4Mbps
(20MHz,Dynamic) |
|
Up to 72.2Mbps
(10MHz,Dynamic) |
|
Up to 36.1Mbps
(5MHz,Dynamic) |
|
Frequency |
5.15~5.85GHz |
|
Note: Available
operation frequency may vary depending on the limitaion of the countries
or regions in which the device is used. |
|
Transmission
Power |
27dBm/500mW (Adjustable
power by 1dBm) |
|
Note: Maximum
transmission power may vary across different channels depending on the
limitations of the countries or regions in which the device is
used. |
|
|
|
|
SOFTWARE
FEATURES |
|
Operating
Modes |
AP / Client / Bridge
/Repeater |
|
AP Router Mode / AP
Client Router(WISP Client) Mode |
|
Network
Configuration |
WAN:
Static/Dynamic/PPPoE/L2TP/PPTP |
|
LAN:
Static/Dynamic/Dynamic/DHCP |
|
Forwarding:
DMZ/ALG/UPnP/Virtual Server/Port Trigger |
|
Security: SPI
Firewall/Ping Forbidden/VPN/DOS Protection |
|
Access
Control |
|
Static
Routing |
|
Bandwidth
Control |
|
IP &AC
Binding |
|
Wireless
Configurations |
Pharos MAXtream TDMA
Technology |
|
802.11a/n
Modes |
|
Selectable Channel
Width: 5/10/20/40MHz |
|
Automatic Channel
Selection |
|
Transmission Power
Control |
|
Dynamic Frequency
Selection (DFS) |
|
WDS
Enable/Disable |
|
Security: WPA/WPA2,
WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP
Encryption |
|
SSID Broadcast
Enable/Disable |
|
Multi-SSID with VLAN
Tagging (AP mode only) |
|
Distance/ACK Timeout
Setting |
|
Wireless MAC Address
Filter |
|
Wireless
Advanced: |
|
> Beacon
Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP
Isolation/Short GI/Wi-Fi Multimedia |
|
Management |
Discovery and Remote
Management via Pharos Control application |
|
HTTP/HTTPS Web-based
management |
|
System
Log |
|
SNMP
Agent(v2c) |
|
Ping Watch
Dog |
|
Dynamic
DDNS |
|
SSH
Server |
|
System
Tools |
Wireless Signal Quality
Indicators: |
|
Signal
Strength/Noise/Transmit CCQ/CPU/Memory |
|
Monitors:
Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP |
|
Spectrum
Analyzer |
|
Speed
Test |
|
Ping |
|
Traceroute |
|
System-level
Optimizations |
802.11a/n Tx
beamforming technology |
|
Optimized IGMP
Snooping/Proxy for multicast applications |
|
Hardware watch
dog |
|
|
|
|
OTHERS |
|
Certification |
CE, FCC, RoHS,
IP65 |
|
Package
Contents |

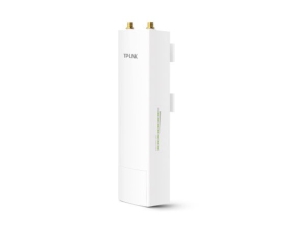

Outdoor Wireless Base
Station |
|
24V 1A Passive PoE
Adapter |
|
Pole Mounting
Kit |
|
AC Power
Cord |
|
Quick Installation
Guide |
|
System
Requirements |
Microsoft Windows 98SE,
NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare,
UNIX or Linux. |
|
Note: We recommend you
to use one of following Web browsers for an improved user experience:
Google Chrome, Safari, and Firefox. IE browsers are not
recommended. |
|
Environment |
Operating Temperature:
-30C~70C (-22~158) |
|
Storage Temperature:
-40~70
(-40~158) |
|
Operating Humidity:
10%~90% non-condensing |
|
Storage Humidity: 5%~95% non-condensing |
