Ubiquiti ERLITE-3 EdgeMAX EdgeRouter Lite 3 Port Gigabit Router

IMG 1 of 1
No Longer Available
Part Number:
410910
(?) Brand:
Ubiquiti
Manuf No:
ERLite-3
ERLite3
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
25/8/2016
Details Files Images & Video
All stock codes associated to this product
ERLite3, ERLite-3, NHUERLITE3, NHU-ERLITE-3, 810354020612, 817882023313

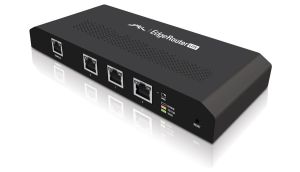

EdgeRouter Lite 3 Port Gigabit Router (ERLite-3)

The ERLite-3 EdgeRouter Lite 3-Port Router from Ubiquiti Networks is housed in a compact, fanless form factor. It operates quietly and delivers powerful routing, security, and management features you require to efficiently run a network. This EdgeRouter Lite provides a graphical user interface designed for convenient setup and control. Each of its Gigabit port functions as an independent interface. You can configure Virtual Local Area Network (VLAN) interfaces to meet network segmentation requirements. You can also configure static routes and dynamic routing protocols, to effectively manage the routes used by the EdgeRouter.

Powerful Routing Performance

The EdgeRouter Lite routes up to 1 million packets per second to meet the needs of carrier-class networks.







Carrier-Class Reliability

The EdgeRouter Lite delivers uptime performance equal to leading carrier or enterprise technology solutions.





Versatile Functionality

Use the EdgeRouter Lite’s advanced feature set to run applications on the customizable open platform.

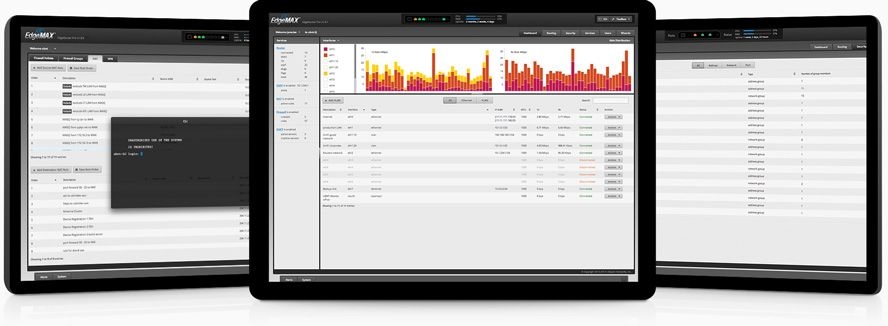

EdgeOS - Advanced UI

The intuitive, graphical user interface is easy to learn and makes routing features simple to configure and monitor. It includes an integrated Command-Line Interface (CLI) for convenient access to advanced functions.





Specifications

EdgeRouter Lite

Dimensions

197.52 x 91 x 28 mm

Weight

289.2 g

Power Input

12VDC, 1A Power Adapter (Included)

9 to 24V (Supported Voltage Range)

Button

Reset

Processor

Dual-Core 500 MHz, MIPS64

with Hardware Acceleration

for Packet Processing

System Memory

512 MB DDR2 RAM

Onboard Flash Storage

2 GB

Certifications

CE, FCC, IC

Wall-Mount

Yes

Operating Temperatures

-10 to 45°C (14 to 113°F)

Operating Humidity

0% Non-Condensing

Layer 3 Forwarding Performance

Packet Size: 64 Bytes

1,000,000 pps

Packet Size: 512 Bytes or Larger

3 Gbps (Line Rate)

LEDs Per Port

Serial Console Port

Power

Data Ports

Speed / Link / Activity

Networking Interfaces

Serial Console Port

(1) RJ45 Serial Port

Data Ports

(3) 10 / 100 / 1000 Ethernet Ports



No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 months*

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
