All stock codes associated to this product
EW7833UAC, EW-7833UAC, NWEEW7833UAC, NWE-EW-7833UAC, 4717964701060
Features
- 11ac Super Fast Wi-Fi Speed: Next generation AC1750 Wi-Fi
for HD streaming and gaming with transfer speeds up to 450Mbps (2.4GHz) or
1300Mbps (5GHz).
- USB 3.0 Interface: Enables the USB adapter to achieve the
super fast speeds which 802.11ac can provide.
- Faster Wi-Fi with Beamforming Technology: With
beamforming directional signals support, Wi-Fi performance is dramatically
improved with better reliability, range and coverage and less wasted signals.
- High Performance with 3T3R MIMO Technology: Three
transmitter antennas and three receiver antennas MIMO Technology for optimized
performance.
- Flexible Foldaway Antenna: Embedded 180 degree adjustable
foldaway antenna for optimum Wi-Fi performance.
- Secure Wi-Fi: Features 64/128-bit WEP, WPA & WPA2
encryption for high level of security.
- Easy One-Click Wireless Connections: Features a hardware
WPS (Wi-Fi Protected Setup) button for easy wireless connections.
- Supports Windows 7/8/8.1/10, MAC OS 10.7 above and Linux.
Super-speed 802.11ac dual-band routers are on the market but wireless devices
are still stuck with 802.11n technology. Upgrade your wireless device to
dual-band 802.11ac with the fastest possible USB 3.0 connectivity for blistering
Wi-Fi speeds on the interference free 5Ghz frequency band. The EW-7833UACs high
performance 3T3R MIMO technology provides super-high speeds up to 1300Mbps and
is backwards compatible with 802.11a/b/g/n wireless devices.

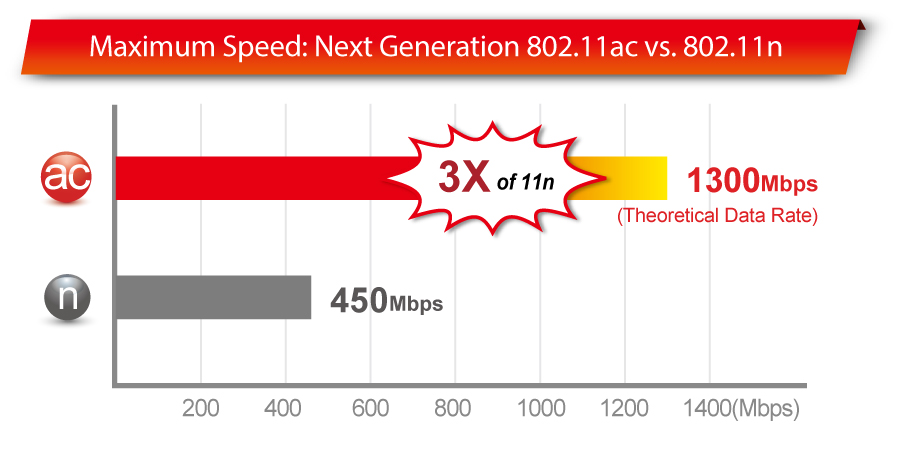

Easily Upgrade to Fastest 11ac Wi-Fi
Compatible with the 802.11ac standard and delivering speeds of up to 1300Mbps
at 5GHz - almost three times as fast as 802.11n together with USB 3.0
connectivity. Upgrade PCs and notebooks to super high speed 802.11ac Wi-Fi and
enjoy streaming video and data at lightning speeds.

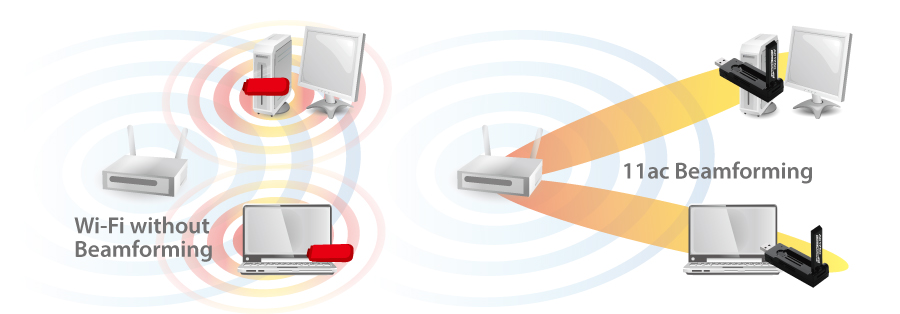

Faster Wi-Fi with Beamforming Technology
Beamforming technology involves signal processing algorithms that generate
directional signals, focused towards each client. Signals dont radiate out into
the atmosphere, but are concentrated from your router or access point to the
target device. With beamforming reception support in your adapter, Wi-Fi
performance is dramatically improved with better reliability, range and coverage
and less wasted signals.

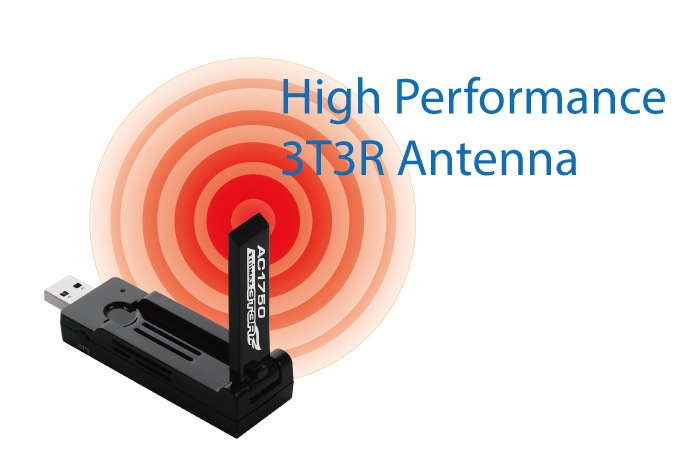

High Performance 3T3R MIMO Technology
The EW-7833UAC features multiple input, multiple output (MIMO) antenna
technology with 3 transmitter antennas and 3 receiver antennas to optimize data
speeds for the best wireless performance.

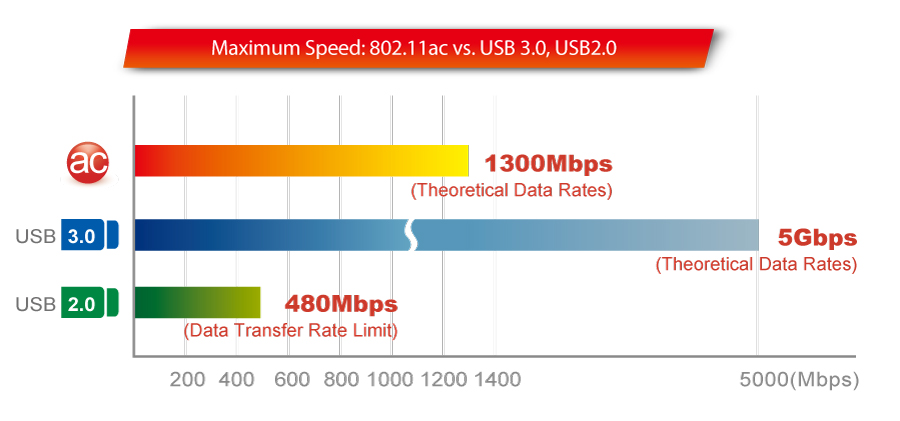

802.11ac Truly Realized with USB 3.0
USB 3.0 is up to 10 times faster than USB 2.0 and specifies a maximum
transmission speed of up to 5Gbps. Providing quicker data transmission times,
and backwards compatibility with USB 2.0 (which specifies a maximum speed of
480Mbps), USB 3.0 is the new standard in connectivity enabling devices to
achieve the superfast speeds which 802.11ac can provide.

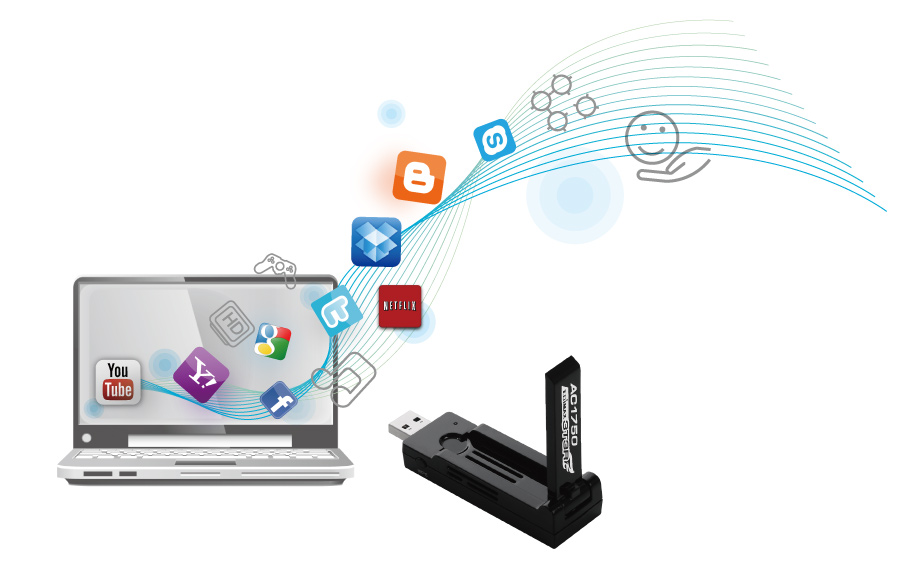

Download and Stream Media
Use the EW-7833UAC to download and stream media from YouTube, Netflix or
other services without waiting for buffering, or stream media across your
network from a NAS (network-attached storage) at super speeds. Streaming HD
movies or downloading is faster and more reliable than ever with 802.11ac
Wi-Fi.

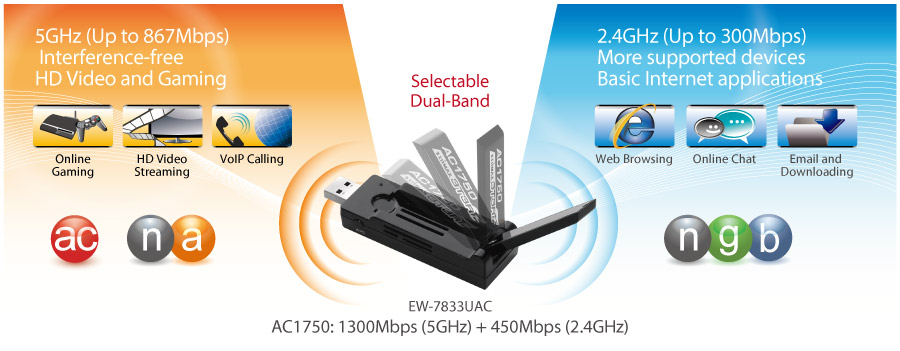

Dual-Band Connectivity
Enjoy better performance and greater flexibility for your desktop with
dual-band connectivity. The EW-7833UAC provides connectivity for the 2.4GHz band
at speeds of 450Mbps or 5GHz band at speeds of 1300Mbps. You can surf the
internet and check your email on the 2.4GHz band, or select the 5GHz band for
online gaming and video streaming.

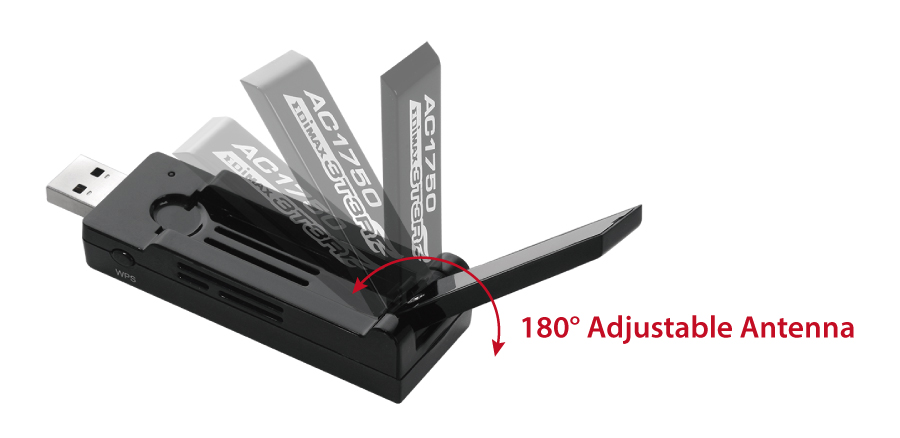

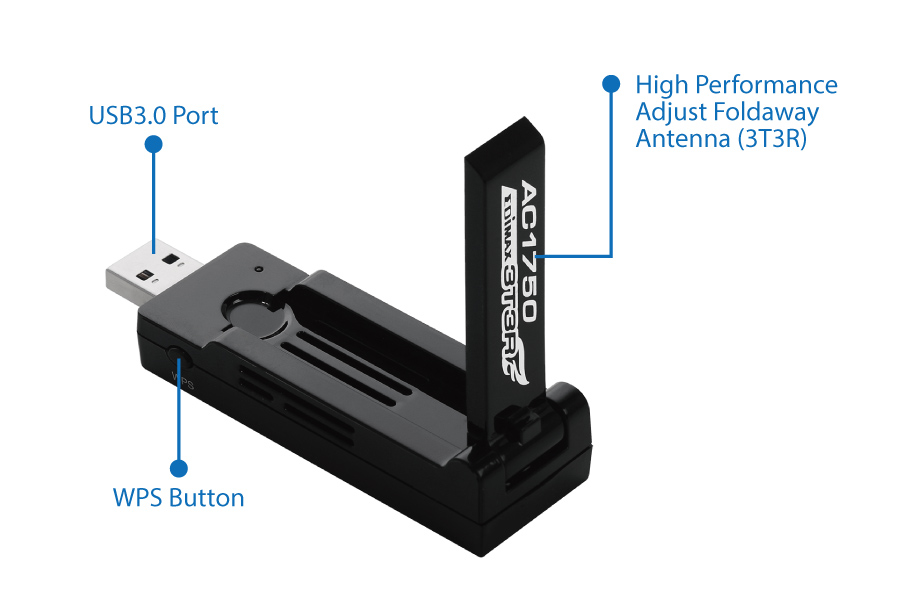

180° Adjustable Foldaway Antenna
The EW-7833UACs sleek design features an adjustable foldaway antenna,
allowing users to adjust the antennas angle for optimum Wi-Fi performance and
fold back the antenna to minimize size when its not in use.

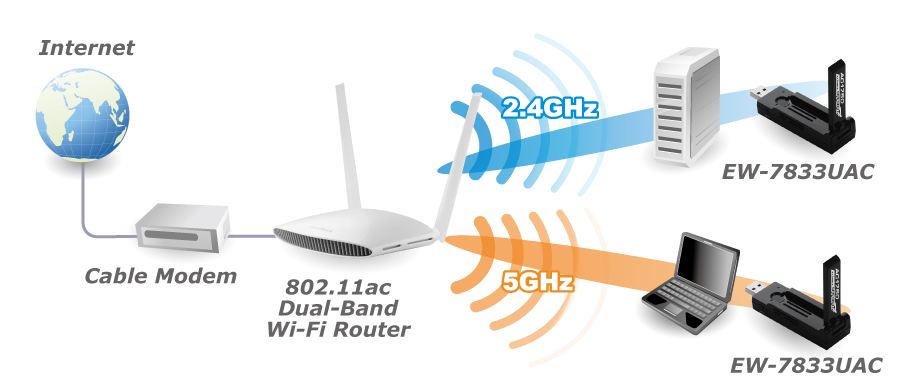

APPLICATION DIAGRAM
Specifications
|
HARDWARE |
STANDARDS |
FREQUENC
BAND |
|
1 x USB 3.0 Type
A |
2.4GHz: IEEE 802.11b,
802.11g, 802.11n |
2.4000 - 2.4835GHz
(subject to local regulations) |
|
1 x Hardware WPS
Button |
5GHz: IEEE 802.11ac,
802.11a, 802.11n |
5.150 - 5.825GHz
(subject to local regulations) |
|
1 x Link/Activity
LED |
|
FCC: Band 1:
5.150~5.250(GHz) |
|
3 x Antennas (3T3R
MIMO) |
|
Band 4: 5.745~5.850(GHz) |
|
|
|
CE: Band 1:
5.150~5.250(GHz) |
|
|
|
*Subject to local
regulations |
|
OUTPUT
POWER |
INSTALLATION |
OPERATING
RANGE |
|
2.4GHz |
Multi-language easy
setup wizard |
11a:
6/9/12/24/36/48/54Mbps |
|
11b (11Mbps):
16dBm1.5dBm |
Hardware WPS button for
easy wireless connections |
11b:
1/2/5.5/11Mbps |
|
11g (54Mbps):
14dBm1.5dBm |
|
11g:
6/9/12/24/36/48/54Mbps |
|
11n (20MHz, MCS7):
14dBm1.5dBm |
|
11n (20MHz): MCS0-15
(up to 223Mbps) |
|
11n (40MHz, MCS7):
12dBm1.5dBm |
|
11n (40MHz): MCS0-15
(up to 450Mbps) |
|
5GHz |
|
11ac (80MHz): MCS0-9
(up to 1300Mbps) |
|
11a (54Mbps):
12dBm1.5dBm |
|
|
|
11n (20MHz, MCS7):
10dBm1.5dBm |
|
|
|
11n (40MHz, MCS7):
10dBm1.5dBm |
|
|
|
11ac (80MHz, MCS7):
9.5dBm1.5dBm |
|
|
|
LED |
SECURITY |
TEMPERATURE &
HUMIDITY |
|
Link/Activity |
WEP 64/128-bit, WPA,
WPA2, 802.1x |
Max. 95%
(non-condensing) |
|
Hardware & Software
WPS Configuration |
32 - 104F (0 -
40C) |
|
WEIGHT |
DIMENSIONS |
CERTIFICATIONS |
|
23g |
87.1(L) x 27 (W) x
18 (H) mm |
CE/FCC |
Package Contents
- Wi-Fi USB Adapter (EW-7833UAC)
- Quick Installation Guide
- CD with theMulti-language QIG and Setup Wizard
