All stock codes associated to this product
ARCHERD50, ARCHER-D50, 6935364093563
Overview
- Supports the 802.11ac standard, the next generation of Wi-Fi
- Simultaneous 2.4GHz and 5GHz bands provide a premium wireless experience
with speeds of up to 300Mbps and 867Mbps, respectively
- Share a printer locally and files & media with networked devices or
remotely via FTP server
- Ethernet WAN (EWAN) port accepts connections from cable and fiber
modems
- New web UI and Tether app provide quick, hassle-free installation and easy
management

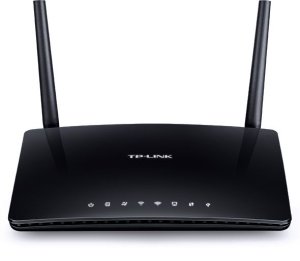

Wireless Dual Band ADSL2+ Modem Router
Superfast Wireless Speed with the 802.11ac Standard
Next generation AC Wi-Fi is three times faster than the wireless N standard.
The Archer D50 delivers combined wireless data transfer speeds of up to
1200Mbps, including 867Mbps on the 5GHz band and 300Mbps on the 2.4GHz band.
With its increased efficiency and robust security, the 802.11ac standard offers
a dramatically accelerated multimedia experience and easily serves multiple
devices at the same time.
Premium Wireless Experience
Simultaneous dual band Wi-Fi offers increased flexibility by creating two
dedicated networks that can support all of your basic online tasks and
bandwidth-intensive applications. The two dual band external antennas expand the
routers range and enhance its performance.
Easy USB Storage and Sharing
The Archer D50's multi-functional USB 2.0 port allows you to share a printer
with multiple computers and devices on your local network. It also lets you
share files and media at home or from anywhere in the world via FTP.
Dual Connectivity
The Archer D50 supports ADSL and Ethernet WAN inputs, providing you with the
flexibility you need to get the most from your Internet connection. The ADSL
port supports ADSL connections via any standard phone cable and the LAN/WAN port
allows the Archer D50 to accept connections from fiber/cable modems using an
Ethernet cable.
Guest Network
Provide a separate, secure Wi-Fi network for guests to share your home or
office network
Parental Control
Establish appropriate access policies for children and staff members
Easy of Use
Enjoy the optimized configuration utility and the intelligent auto-detection
function, which automatically identifies your connection type to get you online
in a flash
IPv6 Supported
Future-proof your network with the next generation Internet protocol
Easy Setup and Use
Set up the Archer D50 in minutes thanks to its intuitive web interface and
the powerful Tether App. Tether also lets you manage its network settings from
any Android or iOS device, including parental controls and media sharing.
TP-LINK | Wireless ADSL2+ Modem Routers
|
Products |
AC1900 Wireless Dual
Band Gigabit ADSL2+ Modem Router |
AC1750 Wireless Dual
Band Gigabit ADSL2+ Modem Router |
AC1200 Wireless Dual
Band Gigabit ADSL2+ Modem Router |
AC1200 Wireless Dual
Band ADSL2+ Modem Router |
|
|
|
|
|
|
Standards |
IEEE
802.11ac/n/g/b/a |
IEEE
802.11ac/n/g/b/a |
IEEE
802.11ac/n/g/b/a |
IEEE
802.11ac/n/g/b/a |
|
|
|
|
|
|
Wireless
Speed |
1300Mbps |
1300Mbps |
867Mbps |
867Mbps |
|
|
600Mbps |
450Mbps |
300Mbps |
300Mbps |
|
|
|
|
|
|
Wireless
Range |
|
|
|
|
|
|
|
|
|
|
EWAN |
Y |
Y |
Y |
Y |
|
|
|
|
|
|
Gigabit
Ports |
Y |
Y |
Y |
- |
|
|
|
|
|
|
USB 2.0
Ports |
1 |
2 |
2 |
1 |
|
|
|
|
|
|
USB 3.0
Ports |
1 |
- |
- |
- |
Specifications
|
HARDWARE
FEATURES |
|
|
Interface |
1 10/100Mbps RJ45
WAN/LAN Port |
|
3 10/100Mbps RJ45 LAN
Ports |
|
1 RJ11
Port |
|
1 USB 2.0
Ports |
|
Button |
1 Power On/Off
Button |
|
1 Wi-Fi On/Off
Button |
|
1 WPS
Button |
|
1 RESET
Button |
|
Power
Supply |
12VDC/1.5A |
|
IEEE
Standards |
IEEE 802.3, 802.3u,
802.3ab |
|
ADSL
Standards |
Full-rate ANSI T1.413
Issue 2 |
|
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite) |
|
ITU-T G.994.1 (G.hs),
ITU-T G.995.1 |
|
ADSL2
Standards |
ITU-T G.992.3
(G.DMT.bis), |
|
ITU-T G.992.4
(G.lite.bis) |
|
ADSL2+
Standards |
ITU-T
G.992.5 |
|
Dimensions ( W x D x
H ) |
8.0 x 5.6 x 1.3 in.
(202mm x 141mm x 33.6mm) |
|
Antenna
Type |
Undetachable dual band
external antennas |
|
Antenna
Gain |
2dBi for 2.4GHz and
3dBi for 5GHz |
|
WIRELESS
FEATURES |
|
|
Wireless
Standards |
IEEE 802.11ac/n/a
5GHz |
|
IEEE 802.11n/g/b
2.4GHz |
|
Wireless
Speeds |
5GHz: Up to
867Mbps |
|
2.4GHz: Up to
300Mbps |
|
Frequency |
2.4GHz and
5GHz |
|
Transmit
Power |
<20dBm(EIRP) |
|
Wireless
Functions |
Enable/Disable Wireless
Radio, WDS Bridge, WMM, |
|
Wireless
Statistics |
|
Wireless
Security |
64/128-bit WEP,
WPA/WPA2, WPA-PSK/WPA2-PSK encryption, |
|
Wireless MAC
Filtering |
|
Wireless
Schedule |
Support 2.4GHz and 5GHz
Wireless Schedule |
|
SOFTWARE
FEATURES |
|
|
Quality of
Service |
ATM QoS, Bandwidth
Control |
|
Security |
NAT Firewall, Access
Control, MAC / IP / URL Filtering, |
|
Denial of Service
(DoS), SYN Flooding, Ping of Death |
|
IP and MAC Address
Binding |
|
IPv6 |
IPv6 and IPv4 dual
stack |
|
Operating
Modes |
ADSL Modem Router,
Wireless Router |
|
Management |
Web Based
Configuration(HTTP), Remote management, |
|
Command Line
Interface, |
|
SSL for TR-069, SNMP
v1/2c, Web Based Firmware Upgrade, |
|
Diagnostic
Tools |
|
DHCP |
Server, Client, DHCP
Client List, |
|
Address Reservation,
DHCP relay |
|
Port
Forwarding |
Virtual server, Port
Triggering, DMZ, ALG, UPnP |
|
Dynamic
DNS |
DynDns,
NO-IP |
|
VPN |
PPTP, L2TP, IPSec
Passthrough |
|
ATM
Features |
ATM Forum
UNI3.1/4.0, |
|
PPP over ATM (RFC
2364), |
|
PPP over Ethernet
(RFC2516), |
|
IPoA
(RFC1577/2225), |
|
Bridge (RFC1483
Bridge) |
|
PVC Up to 8
PVCs |
|
Advanced
Functions |
Parental
Control |
|
Network Address
Translation (NAT); |
|
Port Mapping
(Grouping), Static Routing, RIP v1/v2 (optional); |
|
DNS Relay, DDNS, IGMP
V1/V2/V3 |
|
USB
Sharing |
Support
Samba(Storage)/FTP Server/Media Server/ |
|
Printer
Server |
|
Guest
Network |
2.4GHz guest network
1 |
|
5GHz guest network
1 |
|
IPSec
VPN |
Supports up to 10 IPSec
VPN tunnels |
|
OTHERS |
|
|
Certification |
CE, FCC,
RoHS |
|
Package
Contents |
AC1200 Wireless Dual
Band ADSL2+ Modem Router |
|
External
Splitter |
|
RJ-11 Telephone
Cable |
|
RJ-45 Ethernet
Cable |
|
Quick Installation
Guide |
|
Power
Adapter |
|
System
Requirements |
Windows 10/8/7/Vista/XP
or Mac OS or Linux-based |
|
operating
system |
|
Environment |
Operating Temperature:
0~40
(32~104) |
|
Storage Temperature:
-40~70
(-40~158) |
|
Operating Humidity:
10%~90% non-condensing |
|
Storage Humidity:
5%~90% non-condensing |
