Breakthrough Hardware Performance

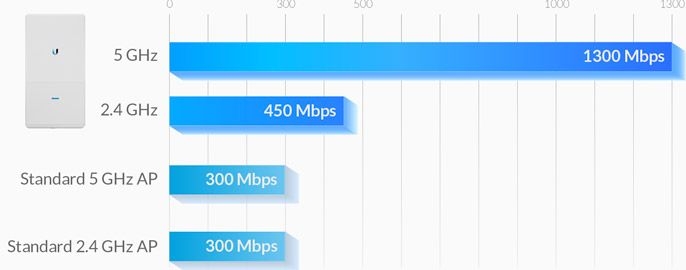

The UniFi AP-AC Outdoor supports up to 1300 Mbps in the 5 GHz band and up to 450 Mbps in the 2.4 GHz band.

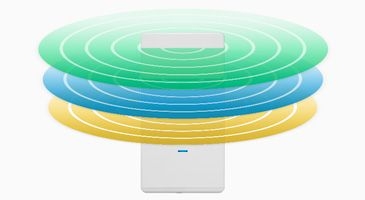

Powerful 3x3 MIMO
The UniFi AP-AC Outdoor supports 3x3 MIMO technology in the 5 and 2.4 GHz radio bands.
Built to Last Outdoors
The durable, weatherproof case withstands outdoor conditions, including wind, rain and snow.
Simultaneous Dual-Band Wi-Fi
The UniFi AP-AC Outdoor supports simultaneous operation in the 5 and 2.4 GHz radio bands.
Gigabit Ethernet & PoE+
Capable of gigabit speeds, the UniFi AP-AC Outdoor can be powered by a PoE+, 802.3at compliant switch or the included 48V PoE Adapter.

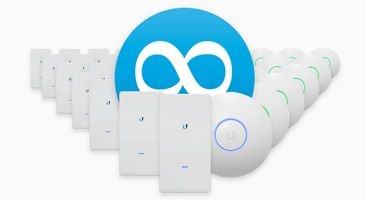

Scalability for Thousands
With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller.
No Software Fees
The UniFi Controller software is bundled with the UniFi AP hardware at no extra charge - no separate software, licensing or support fee.
Scalable Enterprise Wi-Fi Management
The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
Indoor AC Model Comparison Chart
Specifications
|
UniFi AP AC Outdoor
|
|
Dimensions
|
340 x 180 x 65 mm (13.39 x 7.09 x 2.56")
|
|
Weight
With Wall Mount
With Pole Mount
|
1.55 kg (3.42 lb)
2 kg (4.41 lb
|
|
Networking Interface
|
Dual-Band Wi-Fi / Gigabit
Ethernet
|
|
Ports
|
Ports (2) 10/100/1000
Ethernet Ports
|
|
Buttons
|
Reset
|
|
Power Method
|
48V Passive POE or UniFi Switch
|
|
Power Supply
|
48V, 0.5A PoE Gigabit Adapter (Included)
|
|
Power Save
|
Supported
|
|
Maximum Power Consumption
|
22W
|
|
Maximum TX Power
2.4 GHz
5GHz
|
28 dBm
28 dBm
|
|
Antennas
2.4 GHz
5 GHz
|
Integrated 5 dBi Omni (Supports 3x3 MIMO with
Spatial Diversity)
Integrated 5 dBi Omni
(Supports 3x3 MIMO with Spatial Diversity)
|
|
Wi-Fi Standards
|
802.11 a/b/g/n/ac
|
|
Wireless Security
|
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
|
|
BSSID
|
Up to Four Per Radio
|
|
Mounting
|
Wall and Pole (Kits Included)
|
|
Operating Temperature
|
-30 to 60 °C (-22 to 140 °F)
|
|
Operating Humidity
|
5 to 80% Noncondensing
|
|
Certifications
|
CE, FCC, IC
|
|
Advanced Traffic Management
|
|
VLAN
|
802.1Q
|
|
Advanced QoS
|
Per-User Rate Limiting
|
|
Guest Traffic Isolation
|
Supported
|
|
WMM
|
Voice, Video, Best Effort,
and Background
|
|
Concurrent Clients
|
200+
|
|
Supported Data Rates (Mbps)
|
|
Standard
|
Data Rates
|
|
802.11a
|
6, 9, 12, 18, 24, 36, 48, 54 Mbps
|
|
802.11n
|
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
|
|
802.11ac
|
6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
|
|
802.11b
|
1, 2, 5.5, 11 Mbps
|
|
802.11g
|
6, 9, 12, 18, 24,
36, 48, 54 Mbps
|
