Overview
    The UniFi Cloud Key is an integrated computer and software controller minus the bulk.
	It features a quad-core processor with 1 GB RAM, operating the latest version of the UniFi Controller with built-in hybrid cloud technology.
	The UniFi Cloud Key securely runs a local instance of the UniFi Controller software and features cloud Single Sign-On for remote access.

Features
    Hybrid Cloud Technology
The Ubiquiti hybrid cloud configuration provides a secure, private SSO (Single Sign-On) to access all of your UniFi deployments from anywhere in the world.
With the Ubiquiti hybrid cloud, a third-party hosted cloud service is not required, so all of your personal data and network information remains local and secure - the way it should be.

    Breakthrough Efficiency
      The UniFi Cloud Key is fully capable of configuring and managing dozens of UniFi devices in your deployment.
	  Replacing a dedicated server or computer, the UniFi Cloud Key is an ultra-low energy solution with virtually no footprint.
	Incredible, Agile Scalability
      Add, provision, configure, monitor, and manage all of your UniFi devices, whether in one or thousands of private networks - all from a central control plane.
Easily accessible through any standard web browser, the UniFi Cloud Key is a powerful solution for managing your UniFi networks across the campus or across the globe.

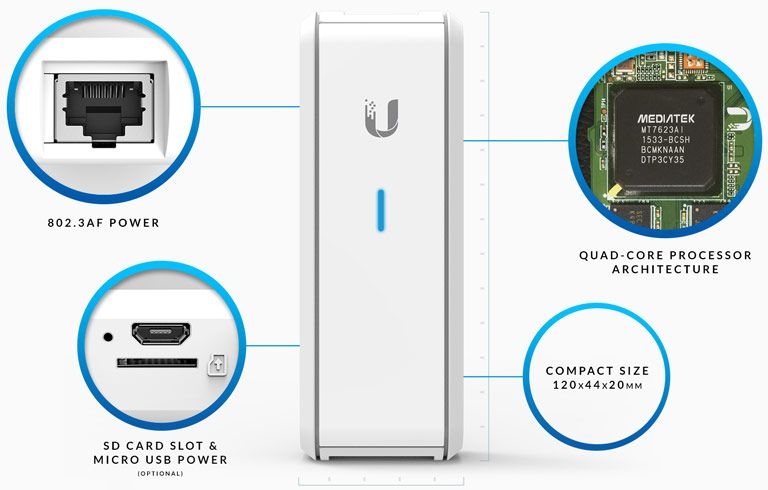

    Powerful Quad-Core Architecture
      The UniFi Cloud Key provides top processing power for centralized device management.

    Plug and Play Installation
      Instant setup: connect the UniFi Cloud Key to 802.3af PoE and run the UniFi Controller setup wizard.

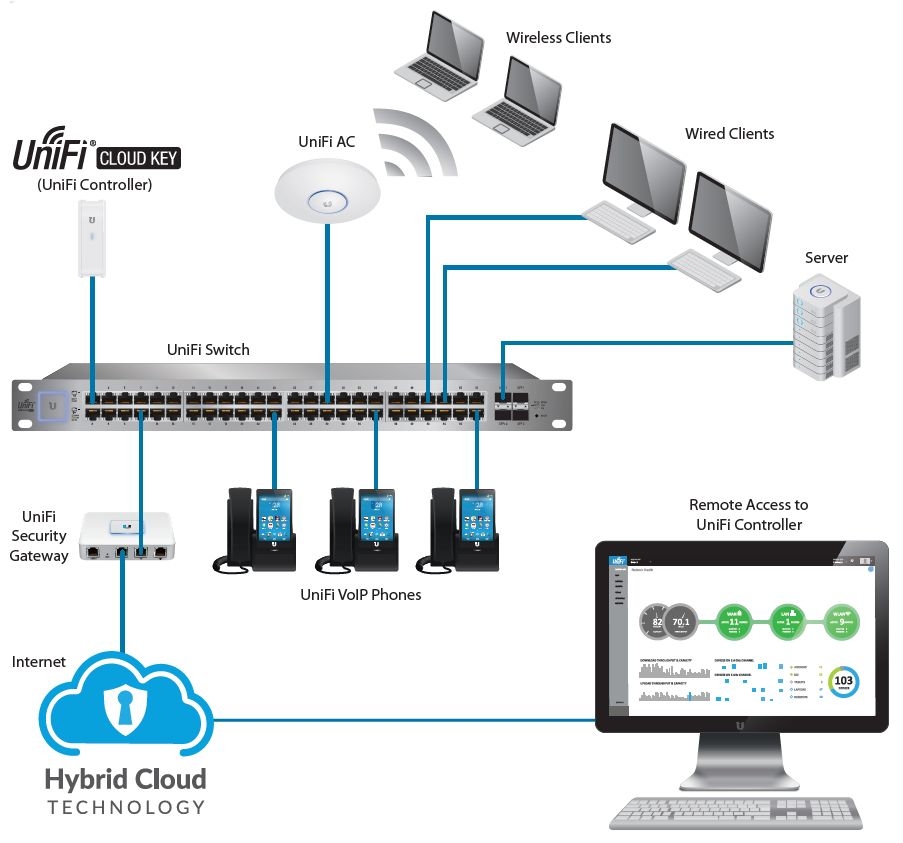

System Example




Specifications



          | UniFi Cloud Key |


          | Dimensions |
          21.7 x 43.4 x 121.9 mm
(0.85 x 1.71 x 4.80") |


          | Weight |
          110 g (3.88 oz) |


          | Processor |
          Quad-Core SoC |


          | Memory |
          1 GB DDR |


          | Networking Interface |
          (1) 10/100/1000 Ethernet Port |


          | Buttons |
          (1) Reset to Defaults |


          Power Method  PoE  Micro-USB |
           48V 802.3af or Passive PoE (Pairs 4, 5+; 7, 8 Return) 5v |


          | Power Supply |
          802.3af PoE or Micro-USB 5V, Minimum 1A |


          | Maximum Power Consumption |
          5W |


          | Certifications |
          CE, FCC, IC |


          | Operating Temperature |
          -10 to 70° C (14 to 158° F) |


          | Operating Humitidy |
          5 to 95% Non-Condensing |
