Overview

Build and expand your network with Ubiquiti Networks UniFi Switch, part of the UniFi line of products.
Available with 24 or 48 RJ45 Gigabit ports, the UniFi Switch is a fully managed Gigabit switch, delivering robust performance and intelligent switching for your growing networks.
The US-48 switch offers:

  • (48) Gigabit RJ45 Ports
  • (2) SFP+ Ports
  • (2) SFP Ports
  • (1) Serial Console Port
  • Non-Blocking Throughput: 70 Gbps
  • Switching Capacity: 140 Gbps
  • Forwarding Rate: 104.16 Mpps
  • Maximum Power Consumption: 56W
  • Rack-Mountable

Features

Switching Performance
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non-blocking throughput, the 24-port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.

Fibre Connectivity
Each model includes two SFP ports for uplinks of up to 1 Gbps.
The 48-port model adds two SFP+ ports for high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.

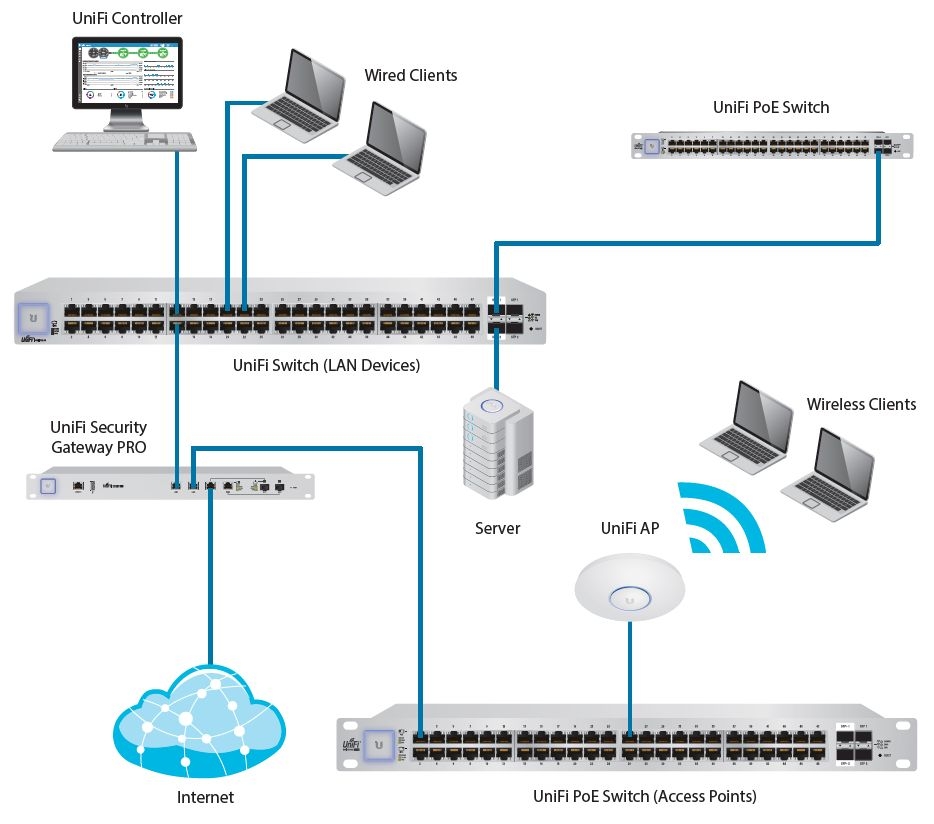

System Example

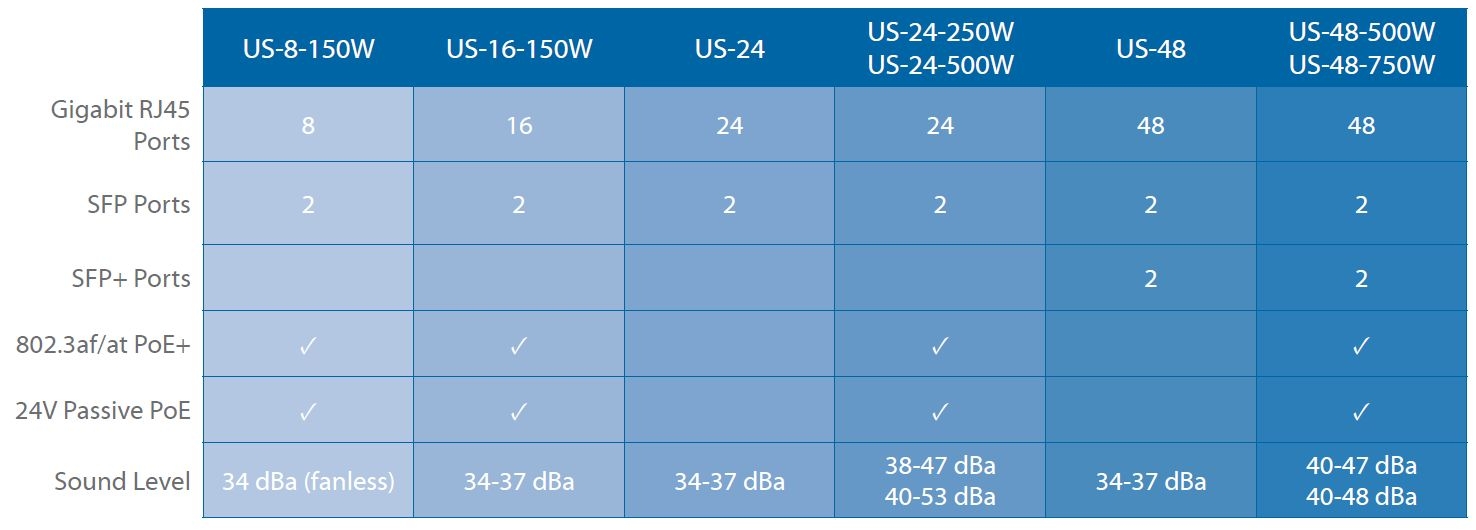

Switch Model Comparison Chart


Specifications

UniFi US-48
Dimensions 443 x 43 x 286 mm (17.44 x 1.69 x 11.26")
Weight
Rack-Mount Brackets Excluded
Rack-Mount Brackets Included

3.56 kg (7.85 lb)
3.65 kg (8.06 lb)
Networking Interfaces


(48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Total Non-Blocking Throughput 70 Gbps
Switching Capacity 140 Gbps
Forwarding Rate 104.16 Mpps
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 56W DC
Maximum Power Consumption 56W
LEDs Per Port Speed/Link/Activity
Sound Level
 Fan Level 0
 Fan Level 1

34 dBa
37 dBa
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humitidy 5 to 95% Non-Condensing
Certifications CE, FCC, IC
