All stock codes associated to this product
D7800100AUS, D7800-100AUS, 10606449109440, 606449109443
Overview
Enjoy Faster Speeds and Simultaneous Streaming
Nighthawk X4S AC2600 WiFi VDSL/ADSL Modem Router with MU-MIMO and Quad Stream
technology delivers WiFi to multiple devices simultaneously for faster speeds.
Get ultimate WiFi speeds of up to 2.53Gbps, with a powerful 1.4GHz dual core
processor. Enjoy smoother streaming and gaming by prioritizing application and
device with Dynamic QoS. Includes auto detection for universal DSL support,
compatible with VDSL, VDSL2, ADSL, ASDSL2, and ADSL2+. Features such as NETGEAR
genie remote access, ReadyCLOUD , OpenVPN, and Kwilt app support help you
manage your network, have access to a secure personal cloud, access home network
remotely, and share photos stored on the storage from anywhere.
The Ultimate DSL Connections
Nighthawk X4S VDSL/ADSL modem router delivers up to 2.53Gbps with MU-MIMO and
Dynamic QoS for the ultimate in WiFi.
Features
Quad Stream
AC2600 WiFi for speeds up to 2.53Gbps (800+1733Mbps) |
Next
generation Wave2 WiFi |
Dual Core
1.4GHz processor boosts performance for gaming and streaming |
Built in high
speed modem compatible with VDSL, VDSL2, ADSL, ADSL2, ADSL2+ |
Auto
Detection for Universal DSL Support |
Gigabit
Ethernet WAN port for universal Internet service compatibility |
Twin USB 3.0
and eSATA ports for external storage |
Dynamic QoS
bandwidth prioritization by application and device |
Manage your
home network with NETGEAR genie |
NEW &
IMPROVED FEATURES: Your Nighthawk X4S modem router now includes ReadyCLOUD,
Open VPN access on mobile devices, and Kwilt integration. |

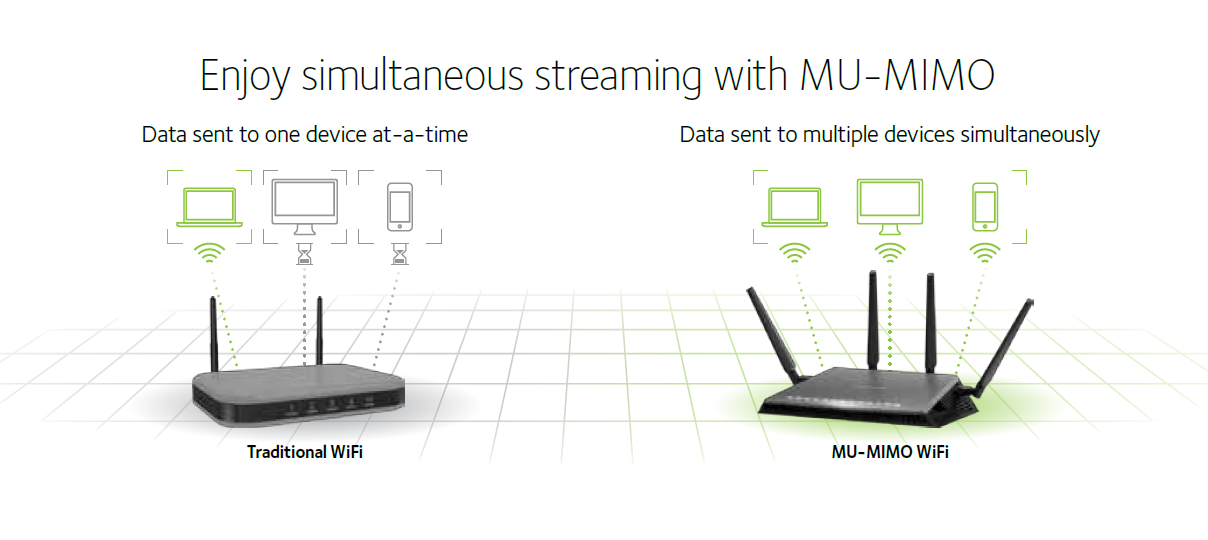

Wave 2 MU-MIMO Technology
When multiple devices are connected to the router, each device needs to take
it's turn and then wait before receiving more data. This leads to slower network
and Internet speeds. MU-MIMO technology delivers high-speed data streams to up
to three devices simultaneously, so there's less waiting, boosting overall
network speeds for all WiFi devices.
Dynamic QoS
Reduce buffering and lag while gaming or streaming. Based on an advanced
application and device aware prioritization technology, Dynamic QoS
intelligently allocates bandwidth to the most important activities in your
home.
Powerful Processors
Make sure you have enough processing power to run all the network-heavy
applications throughout your connected home. With an unmatched 1.4GHz dual core
processor, you'll have unparalleled performance for gaming, streaming and mobile
connectivity.
Built for Gaming, Streaming and Mobility
Take gaming and streaming to the next level. Multi-user MIMO (MU-MIMO) and
Quad Stream technology delivers WiFi to multiple devices simultaneously for
faster speeds while Dynamic QoS prioritizes Internet traffic by application and
device for lag-free connections. Roam freely on your mobile devices with
increased range from Quad Stream Wave 2 WiFi. Beamforming+ and four high powered
antennas and amplifiers increase coverage, dependability and performance.
Storage
The twin USB 3.0 ports and eSATA port provide speed and flexibility when you
connect your external storage to your Nighthawk X4S. Enjoy fast, wireless access
to your high-capacity hard drives from anywhere. Then keep it safe with free
ReadyShare Vault PC software and schedule automatic hassle-free backups to
safeguard precious photos and files from any PC directly to the connected USB
storage.
Share and Access Your Photos
Access and share your files stored on a USB Drive through NETGEAR ReadyCLOUD
USB Access. Simply plug your USB hard drive into your NETGEAR Nighthawk WiFi
Router to create secure personal cloud storage for anytime, anywhere access to
your USB drive at home. And now with the latest Kwilt integration you can not
only access all your photos stored on social media, but you can now add your
external USB storage device connected to Nighthawk as a source of pictures, so
you can search, index and share all of your photos from your iOS Kwilt app.
Speed
Get the fastest WiFi currently available and enjoy a blazing-fast, lag-free
WiFi experience for gaming, video streaming or surfing.
- World's
fastest WiFi Up to 2.53 Gbps
- Gigabit
WiFiNext-generation WiFi now at Gigabit speeds
- Gigabit
wiredIdeal for HD gaming and video
- Dual
core processorDual-core 1.4GHz processor boosts wireless, wired &
WAN-to-LAN performance
- Cable
or FiberAlso connects to cable modem via Gigabit
- VDSL
MODEMCompatible with VDSL, VDSL2, ADSL, ADSL2, & ADSL2+
Wifi Range
Got range? Homes come in all shapes and sizes and the Nighthawk X4S AC2600
WiFi VDSL/ADSL Modem Router provides WiFi coverage no matter where you connect
in your home.
- Ultimate
rangeWiFi coverage throughout very large homes
- AntennasHigh-powered
amplifiers with 4 external antennas
Reliability
Theres nothing more frustrating than lost connections! With NETGEARs advanced
features & best-in-class technology, youll reduce interference & enjoy
more reliable WiFi connectivity.
- Quad
StreamQuad Stream Wave 2 WiFi increases WiFi range for mobile devices
- Dynamic
QoSDelivers bandwidth prioritization by application & device
- Beamforming+
Focuses WiFi signals for stronger more reliable connections. on 2.4 and 5GHz
bands
Sharing
With NETGEAR, sharing across your network is fun and easy, anything from
accessing stored photos and music to wireless printing. And make sure you keep
it safe by using the included ReadySHARE Vault application for backing up
Windows-based PCs.
- DLNA-Find
and play your media on DLNA TVs, game consoles & media players
- ReadySHARE
USB access-Wirelessly access and share USB hard drive and printer via two
high-speed USB 3.0 ports
- eSATAOne
(1) eSATA port for storing and streaming
- Two
super speed USB 3.0 portsUp to 10x faster than USB 2.0
- MU-MIMOMulti-user
MIMO enables simultaneous streaming to mobile devices
- ReadyCLOUD
USB Access- Enjoy personal and secure cloud access to USB storage anytime,
anywhere.
- ReadySHARE
PrinterWirelessly access & share a USB printer
- ReadySHARE
VaultFree software for automatic PC backup to a USB hard drive connected to
the router
- iTunes
compatible-Play your USB-stored music using AirPlay or Apple Remote
Ease of Use
Start enjoying your new device faster than ever. NETGEAR wants to make sure
installation and management is simple & easy, so you can connect quickly
& make sure you stay that way!
- Easy
install-Easy setup for iPad, tablets, smartphones and computers
- NETGEAR
genie App-Personal dashboard to monitor, control and repair your home network
- Push
N ConnectEasy push button WiFi connections (WPS)
- WiFi
and power on/offConvenient power savings
Security
Maintain high security across your network to help ensure your privacy &
family is safe while online. Whether its preventing phishing or just limiting
access for kids & guests, NETGEAR has you covered.
- VPN
supportNow with OpenVPN Connect app on iOS and Android, securely access your
home network and Internet connection from your mobile device remotely.
- Parental
controlsWeb filtering for all your connected devices
- Guest
network accessSeparate and secure access for guests
- Secure
WiFi connectionsHigh level wireless security with WPA/WPA2
- Personal
FTP serverCustomized free URL to create FTP server
Specifications
Product Thumbnail
Speed And Range
WiFi
Technology |
802.11ac |
Modem |
DSL ModemCompatible
with VDSL, VDSL2, ADSL, ADSL2, & ADSL2+ |
WiFi
Performance |
AC2600 (800 Mbps + 1733
Mbps) |
WiFi
Range |
Very large
homes |
WiFi
Band |
Simultaneous dual band
2.4 GHz & 5 GHz |
Number of Ethernet
Ports |
Five (5) 10/100/1000
Gigabit Ethernet Ports with auto-sensing technology |
Number of ADSL
Ports |
One (1) DSL port,
supports ADSL/ADSL2/ADSL2+ and VDSL/VDSL2 |
Number of USB
Ports |
Two (2) USB 3.0
ports |
Key
Features |
Extreme combined WiFi
speedup to 2.53 Gbps |
|
Dual Core 1.4GHz
processor boosts performance for gaming and streaming |
|
Two-in-OneDSL Modem +
AC2600 WiFi Router |
|
Auto Detection for
Universal DSL Support |
|
Open Source support on
www.myopenrouter.com |
|
Gigabit Ethernet WAN
port provides universal compatibility with any Internet
service |
|
Compatible with VDSL,
VDSL2, ADSL, ADSL2, & ADSL2+ |
|
IPv6 support (Internet
Protocol Version 6) |
|
ReadyCLOUD USB
Access allows you to enjoy personal and secure cloud access to USB storage
anytime, anywhere |
|
Using Kwilt, view and
share all your photos from social media and now from your Nighthawk Router
attached USB storage |
|
Now with OpenVPN
Connect app on iOS and Android, securely access your home network from
your mobile device |
|
Manage home network and
provide guest access remotely using NETGEAR genie |
Security |
Customized free URL to
set up personal FTP server |
|
VPN supportsecure
remote access |
|
Guest network
accessseparate & secure |
|
WiFi Protected
Access (WPA/WPA2PSK) |
|
Double firewall
protection (SPI and NAT) |
|
Denial-of-service (DoS)
attack prevention |

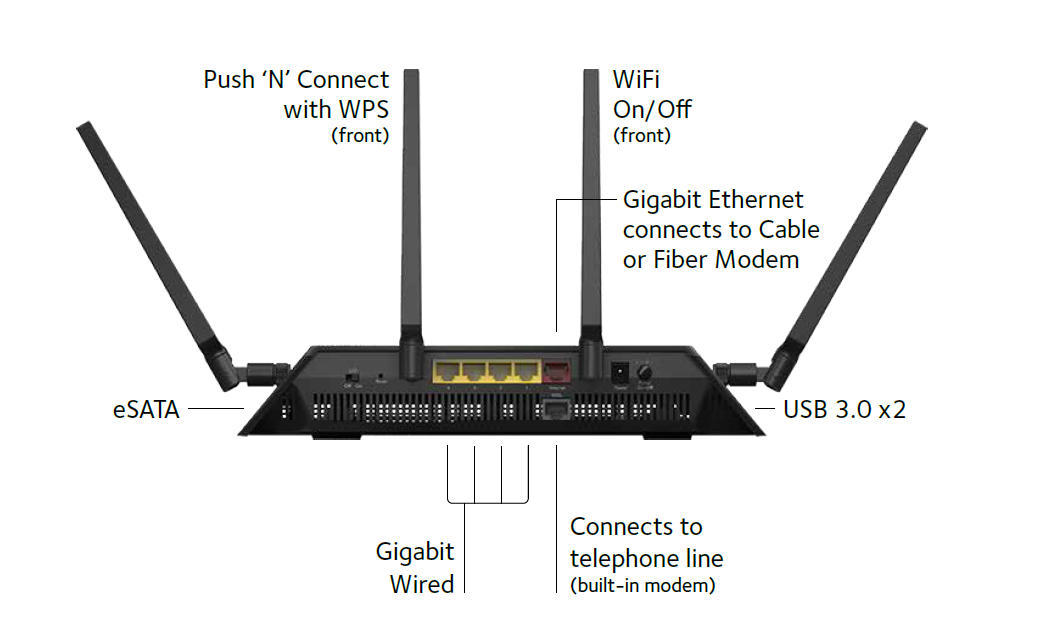

Product Diagram
Physical
Specifications |
Dimensions: 285 x 185 x
50 mm (11.22 x 7.26 x 1.97 in) |
|
Weight: 840 g (1.85
lb) |
|
|
Package
Contents |
Nighthawk X4S AC2600
WiFi VDSL/ADSL Modem Router (D7800) |
|
Ethernet
cable |
|
Phone
cable |
|
DSL
filter |
|
Quick start
guide |
|
Power adapter,
localized to country of sale |
|
|
Standards |
One (1) eSATA
port |
|
Two (2) USB 3.0
ports |
|
One (1) VDSL/ADSL
port |
|
IEEE 802.11 b/g/n
2.4GHz + 256 QAM support |
|
IEEE 802.11 a/n/ac
5.0GHz |
|
Five (5) 10/100/1000
Mbps(1 WAN & 4 LAN) Gigabit Ethernet ports |
|
|
System
Requirements |
ADSL broadband Internet
service |
|
Microsoft Windows 7,
8, Vista, XP, 2000, Mac OS, UNIX, or Linux |
|
Microsoft IE 9
& 10, Firefox 4.0, Safari 6.2.6, or Google Chrome 11.0
browsers or higher |
†Maximum wireless signal rate derived from IEEE standard 802.11
specifications. Actual data throughput and wireless coverage will vary. Network
conditions and environmental factors, including volume of network traffic,
building materials and construction, and network overhead, lower actual data
throughput rate and wireless coverage. NETGEAR makes no express or implied
representations or warranties about this product's compatibility with any future
standards. 802.11ac 1733 Mbps is approximately 3x faster than 802.11n 600 Mbps.
2.4GHz Performance Mode requires 256 QAM support on WiFi client. Up to 1733 Mbps
wireless speeds achieved when connecting to other 802.11ac
devices.
