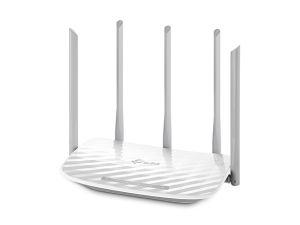

IMG 1 of 2
No Longer Available

Part Number:
420897
(?) Brand:
Manuf No:
ARCHER C60
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
All stock codes associated to this product
ARCHERC60, ARCHER C60, NWTLARCHERC60, NWTL-ARCHERC60, 6935364096755

Overview

  • Get faster Wi-Fi at both the 2.4GHz band (450Mbps) and the 5GHz band (867Mbps).
  • The advanced AC Wi-Fi unlocks the performance of all your wireless devices.
  • Three 2.4GHz antennas and two 5GHz antennas create superior Wi-Fi coverage.
  • Advanced software functions like Parental Control and Guest Network.
  • Tether app provides easy router management in your palm.

Raise the Bar for Wi-Fi Speed and Coverage

The New Wi-Fi Standard for an Advanced Online Experience

The Archer C60 comes with the latest wireless standard - 802.11ac. This advanced Wi-Fi is designed for high-traffic online activities and can help to run applications at triple the speed of the previous 802.11n standard. The result: faster, stronger and more capable Wi-Fi to unleash all your wireless devices.

Fast, Concurrent Dual Band Wi-Fi

The Archer C60 provides you with simultaneous dual band Wi-Fi connections. 2.4GHz band: 3×3 MIMO creates fast and stable Wi-Fi at speeds of 450Mbps, making it perfect for daily applications like sending emails, browsing the web or listening to music. 5GHz band: Provides up to 867Mbps Wi-Fi for latency-sensitive entertainment so you can stream HD video, play online games and hold video chats all at the same time, without delay.

Arranged Coverage, Enhanced Stability

Archer C60’s innovative design includes five antennas, three at 2.4GHz and two at 5GHz. These have been arranged alternately to optimize the dual band 802.11ac Wi-Fi, creating a transmission with maximized coverage, minimized interference.

  • Disorganized Antenna Layout Antennas transmitting at the same frequency are placed too closely, causing interference and signal instability.
  • Antennas transmitting at the same frequency are placed in alternate order, reducing interference for a more pure, stable dual band connection.

Easy Parental Control

Supervise children and staff with responsible access, controlled by parents or administrators. Use URL blocking to easily set up a black or white list and limit the level of web access.

Guest Network Access

Allow guests to join your Wi-Fi network, while protecting your privacy. Make sharing easy, maintain security.

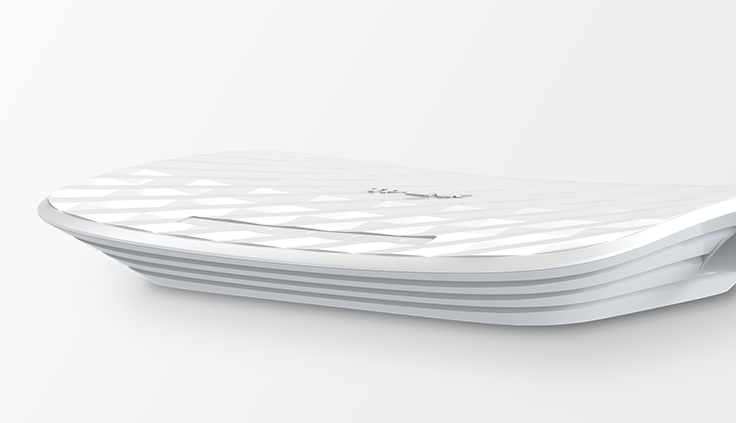

Impeccable Design

To match its advanced features, the Archer C60 introduces an elegant texture and color to fit the stylish décor of your home.

Easy Setup and Management

Set up the Archer C60 in minutes thanks to its intuitive web interface. Configuration is also in the palm of your hands with TP-LINK’s powerful app, Tether, the easiest way to access and manage your router through your smartphone.

Specifications

HARDWARE FEATURES

Interface

4 10/100Mbps LAN Ports

1 10/100Mbps WAN Port

Button

WPS/Reset Button

Wireless On/Off Switch

Power On/Off Button

Antenna

3 2.4GHz Antennas

2 5GHz Antennas

External Power Supply

12VDC/1A

Dimensions ( W x D x H )

9.15.71.5in. (23014437mm)

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ac/n/a 5GHz

IEEE 802.11b/g/n 2.4GHz

Wireless Speeds

450Mbps(2.4GHz)

867Mbps(5GHz)

Frequency

2.4-2.5GHz

5.15-5.25GHz

Transmit Power

CE:

<=20dBm 2.4G

<=23dBm 5G

Wireless Modes

Wireless Router

WDS(Four Address)

WDS(AP+APC)

Wireless Security

WEP

WPA\WPA2

WPA-PSK\WPA2-PSK

SOFTWARE FEATURES

Quality of Service

WMM, Bandwidth Control

WAN Type

Dynamic IP/Static IP/PPPoE/

BigPond/ /L2TP(Dual Access) /PPTP(Dual Access)

Management

Access Control

Local Management

Remote Management

DHCP

Server, Client, DHCP Client List, Address Reservation

VPN Pass-Through

PPTP

L2TP

IPSec

Access Control

Parental Control

Local Management Control

Host List

Access Schedule

Rule Management

Protocols

IPv4

IPv6

Guest Network

2.4GHz guest network

5GHz guest network

OTHERS

Certification

CE, RoHS

Package Contents

AC1350 Wireless Dual Band Router Archer C60

Power supply unit

Ethernet Cable

Quick Installation Guide

Environment

Operating Temperature: 0~40 (32 ~104)

Storage Temperature: -40~70 (-40 ~158)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Operating System

Microsoft Windows XP/Vista/7/8/8.1/10

MAC OS, NetWare, UNIX or Linux
