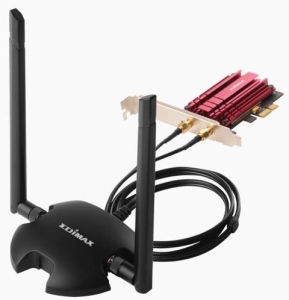

Edimax EW-7822PIC AC1200 Dual-Band Wi-Fi PCI-E Adapter



  • Super High-Speed AC1200 Dual-Band Wi-Fi: Next generation AC1200 Wi-Fi for HD streaming and gaming with transfer speeds up to 300Mbps (2.4GHz) or 867Mbps (5GHz).
  • Long Range: High-output power design with high-gain antennas to penetrate walls for better Wi-Fi performance.
  • Ideal for Gaming PCs: Instant Wi-Fi upgrade for your desktop. High-speed AC1200 Wi-Fi without inconvenient cables.
  • Flexible Installation & Placement: Low profile bracket included and magnetic antenna stand for flexible antenna positioning.

The next generation 802.11ac wireless standard is revolutionizing Wi-Fi. Super-speed 802.11ac dual-band routers are already available but wireless devices are still stuck with 802.11n technology. Upgrade your desktop computer to dual-band 802.11ac with a PCI-E adapter for blistering Wi-Fi speeds on the interference free 5GHz frequency band. The EW-7822PIC features two detachable high gain antennas providing high-performance Wi-Fi coverage. Including an additional magnetic stand to find the best antenna location to optimize wireless operation range and backwards compatible with 802.11a/b/g/n wireless devices.

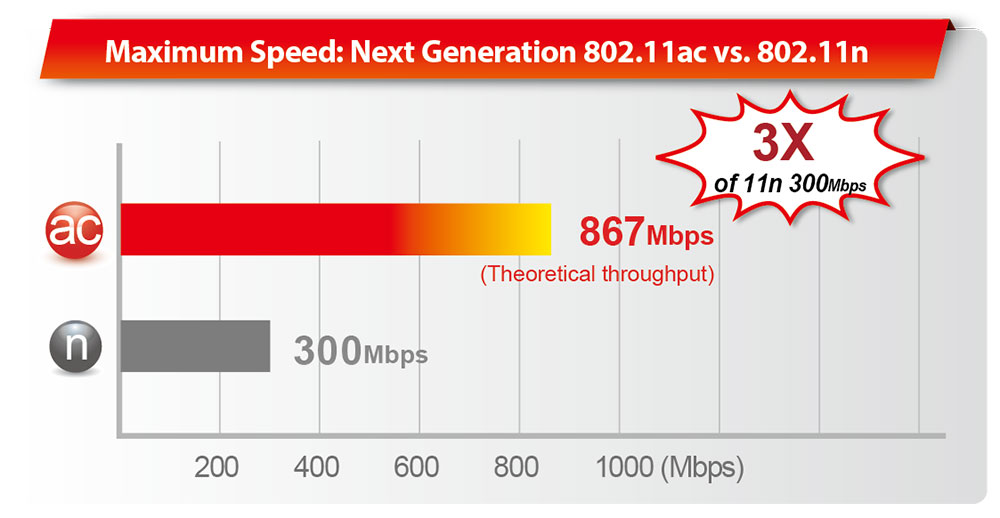

Super High-Speed AC1200 Wi-Fi

Compatible with the IEEE 802.11ac standard and delivering speeds of up to 867Mbps at 5GHz, almost three times as fast as 802.11n. Upgrade PCs to super high speed 802.11ac Wi-Fi and enjoy streaming video and data.

Edimax EW-7822PIC AC1200 Dual-Band Wi-Fi PCI-E Adapter, Super High-Speed AC1200 Wi-Fi

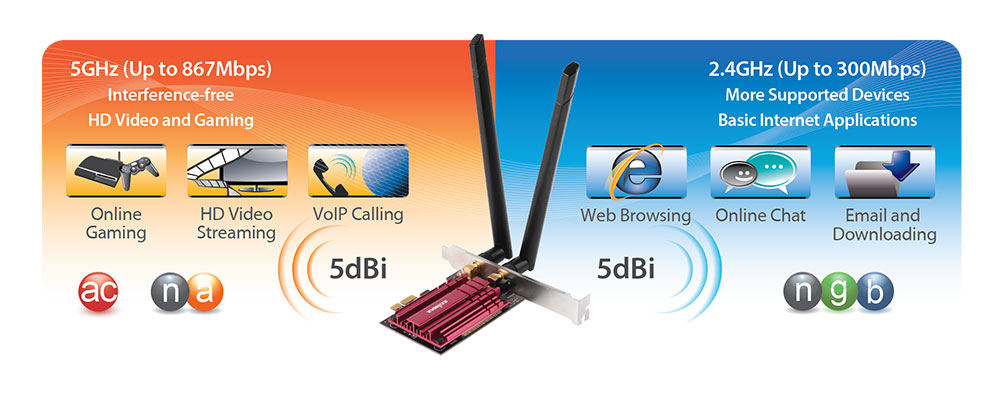

Dual-Band Connectivity

Enjoy better performance and greater flexibility for your desktop with dual-band connectivity. The EW-7822PIC provides connectivity for the 2.4GHz band at speeds of 300Mbps or 5GHz band at speeds of 867Mbps. You can surf the internet and check your email on the 2.4GHz band, or select the 5GHz band for online gaming and video streaming.

Edimax EW-7822PIC AC1200 Dual-Band Wi-Fi PCI-E Adapter, Dual-Band Super High-Speed AC1200 Wi-Fi

Ideal for Gaming PCs

The EW-7822PIC is a perfect upgrade for desktop gaming PCs. Quickly add high performance, long range Wi-Fi ideal for online gaming where connection speeds are critical. Enjoy ultra-fast Wi-Fi connection speeds with a simple PCI-E upgrade.

Edimax EW-7822PIC AC1200 Dual-Band Wi-Fi PCI-E Adapter, Dual-Band Super High-Speed AC1200 Wi-Fi

5dBi High Gain Antenna

High gain antennas provide a high performance long-range connection to your wireless network.

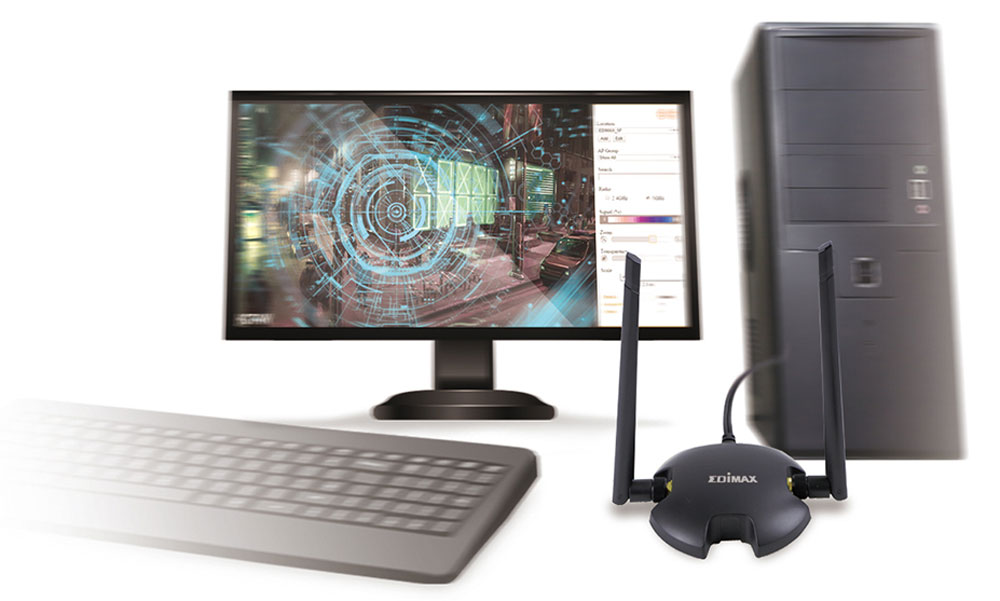

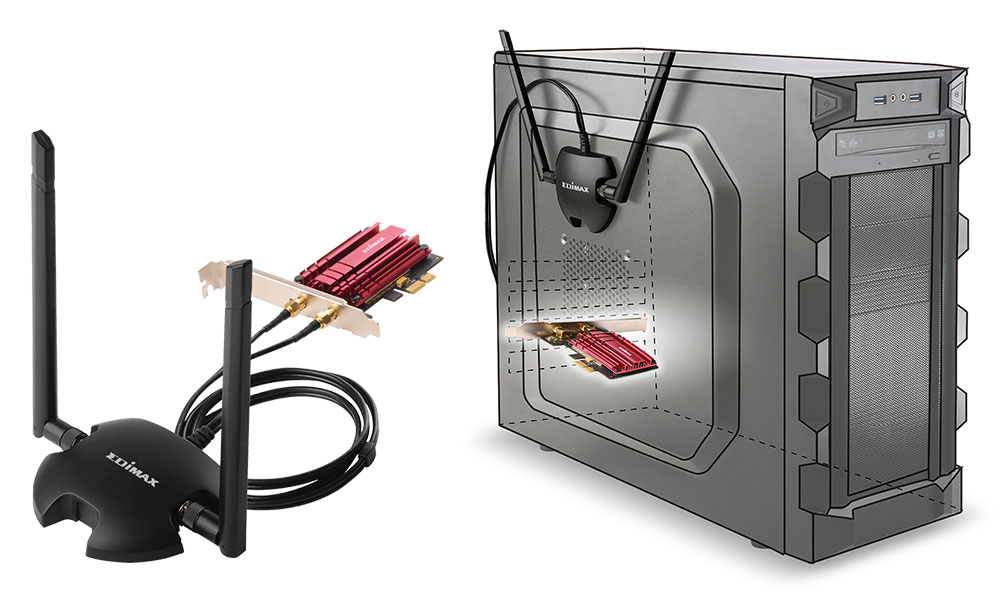

Magnetic Stand for Enhanced Wireless Signal

The EW-7822PIC comes with a free magnetic stand which features two antenna connectors to screw in the detachable antennas and a 1 meter cable for flexible placement. Fine-tune the antenna position for peak performance at no extra cost.

Edimax EW-7822PIC AC1200 Dual-Band Wi-Fi PCI-E Adapter, Dual-Band Super High-Speed AC1200 Wi-Fi

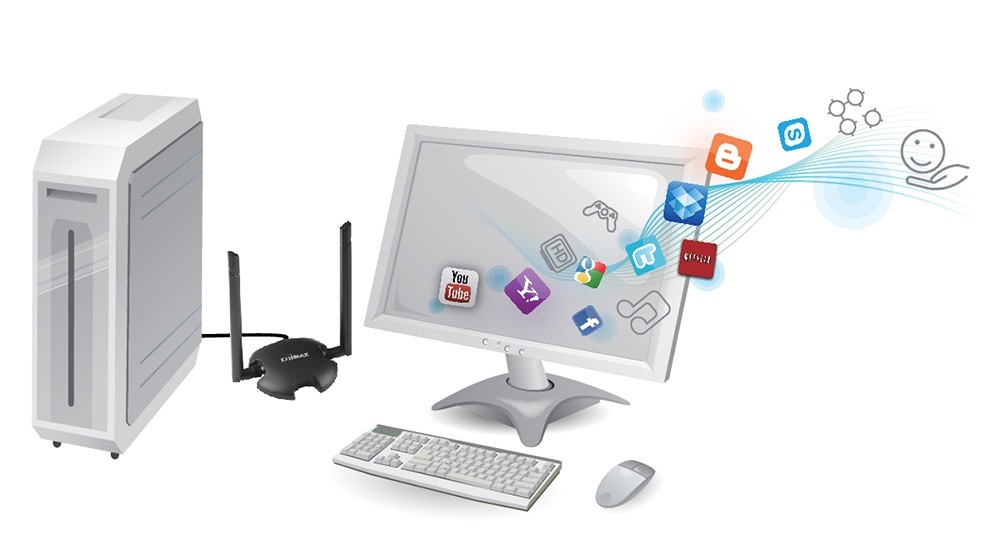

Download and Stream Wirelessly

Use the EW-7822PIC to download and stream media from YouTube, Netflix or other services without waiting for buffering, or stream media across your network from a NAS (network-attached storage) at lightning speeds. Streaming HD movies or downloading is faster and more reliable than ever with 802.11ac Wi-Fi

Edimax EW-7822PIC AC1200 Dual-Band Wi-Fi PCI-E Adapter, Dual-Band Super High-Speed AC1200 Wi-Fi

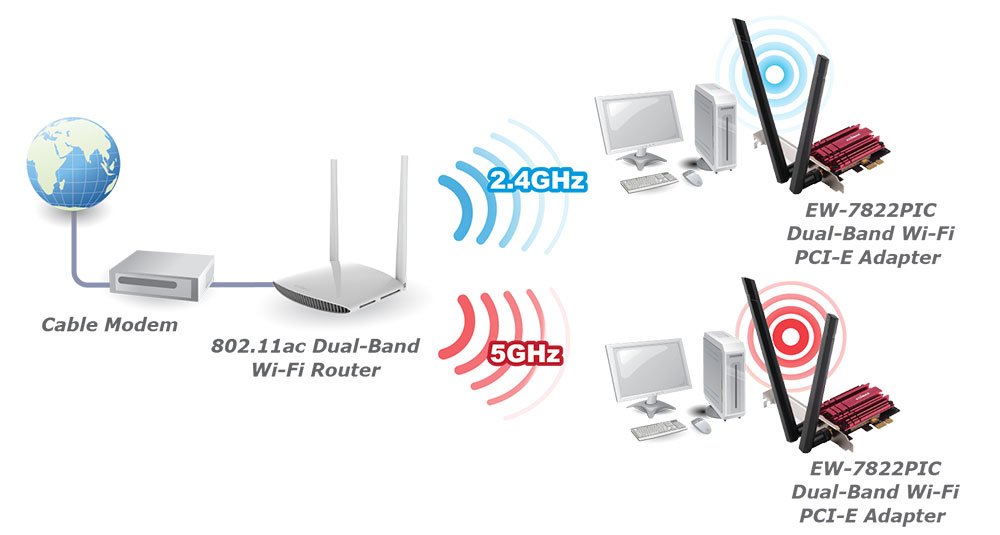

Application Diagram

Edimax EW-7822PIC AC1200 Dual-Band Wi-Fi PCI-E Adapter, application diagram



1 x 1 x PCI-E adapter

1 x Link/Activity LED

2 x Detachable high gain antennas

Output Power


11b (11Mbps): 18dBm1dBm

11g (54Mbps): 15dBm1dBm

11n (20MHz, MCS7): 14dBm1dBm

11n (40MHz, MCS7): 14dBm1dBm


11a (54Mbps): 17dBm1dBm

11n (20MHz, MCS7): 15dBm1dBm

11n (40MHz, MCS7): 15dBm1dBm

11ac (80MHz, MCS9): 13dBm1dBm




120(L) x 93(W) x 18(H) mm

80g (without antennas)

120g (with antennas)


2.4GHz: IEEE 802.11b, 802.11g, 802.11n

5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n

Recieve Sensitivity


11b (1Mbps): -91dBm1dBm

11g (6Mbps): -87dBm1dBm

11n (MCS0): -85dBm1.5dBm


11a (6Mbps): -90dBm1.5dBm

11n (MCS0): -90dBm1.5dBm

11ac (MCS0): -75dBm1.5dBm


WEP 64/128-bit, WPA and WPA2



Frequency Band

2.4000 - 2.4835GHz

5.745 - 5.825GHz (FCC)

5.150 - 5.250GHz (R&TTE)

Operating Data Rate

11a: 6/9/12/24/36/48/54Mbps;

11b: 1/2/5.5/11Mbps;

11g: 6/9/12/24/36/48/54Mbps

11n (20MHz): MCS0-15 (up to 144Mbps)

11n (40MHz): MCS0-15 (up to 300Mbps)

11ac (80MHz): MCS0-9 (up to 867Mbps)

Temperature & Humidity

Max 95% (non-condensing)

32 - 104F (0 - 40C)


1 x Magnetic Stand with 1 meter cable

1 x Low Profile Bracket
