Overview

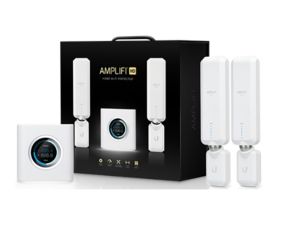

The AmpliFi HD (High Density) Mesh Router can be used as a stand-alone router
or with other AmpliFi Mesh Routers for multi-hop, self-healing wireless coverage
and enhanced range.
For a typical home, the Router alone delivers maximum throughput to meet your
streaming and gaming demands with lag-free performance.
The Router features an innovative and simple design with an intuitive
touchscreen display.
A mobile app is available for iOS and Android platforms for instant setup and
easy management.
Home Wi-Fi Mesh Technology
AmpliFis multi-radio Wi-Fi system eliminates dead spots utilizing mesh point
technology to provide premium, ubiquitous Wi-Fi coverage throughout your
home.
- Powerful Antennas - Super Antenna Technology drives
superior range and speed.
- Smart LCD Screen - Sleek, sophisticated industrial
design includes a smart LCD touchscreen on the base.
- Significant Signal - Latest 802.11AC Wi-Fi
technology, integrated.
Plug and Play Setup
AmpliFis app directly links AmpliFi devices to your smartphone via
Bluetooth LE. With a simple, intuitive setup, you can manage your new network,
monitor ISP speeds, invite guests, and oversee network security.
Specifications
|
AmpliFi
|
|
|
Max TX Power |
26 dBm |
|
Radios |
6 |
|
MIMO Chains |
6 |
|
Speed |
1,750 Mbps |
|
|
|
Common |
|
|
Networking Interface |
Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN |
|
Maximum Power Consumption |
11W |
|
Buttons |
Reset |
|
Antennas |
(1) Dual-Band Antenna, Tri-Polarity |
|
Display |
1.6" (40.6 mm) Diagonal, 240 x 240, 212 ppi, G+F Touch, Full
Color |
|
Wi-Fi Standards |
802.11b/g/a/n/ac |
|
Power Save |
Supported |
|
Wireless Security |
WPA2-PSK AES/TKIP |
|
Operating Temperature |
14 to 131 F (-10 to 55 C) |
|
Operating Humidity |
95% Noncondensing |
|
Certifications |
FCC / CE / IC |
|
|
|
Supported Data Rates |
|
|
802.11ac |
13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80) |
|
802.11n |
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11b |
1, 2, 5.5, 11 Mbps |
|
802.11g |
6, 9, 12, 18, 24, 36, 48, 54
Mbps |
