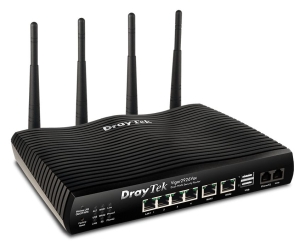

DrayTek Vigor2926Vac Dual-WAN Gigabit Broadband Router w. Security
Firewall
- Dual Gigabit Ethernet WAN ports for failover and load-balancing
- Two USB 2.0 ports for connection to Two 3G/4G LTE USB modems, FTP server
and network printer
- 50 x VPN tunnels with comprehensive secure protocols
- Advanced VPN load-balancing and site-to-site backup functions
- Integrated IEEE 802.11ac (AC2000) wireless Access Point
- Supports VigorACS 2 (Central Management system) for multi-site deployment
- VoIP (2 x FXS and 1 x FXO Line Port) for Vigor2926Vac
- Object-based SPI Firewall and CSM (Content Security Management) for
network security
- Multiple VLANs provide secure and efficient workgroup management
- 4 x Gigabit LAN ports with multiple subnets
- Embedded Central VPN Management for 8 remote Vigor routers
- Embedded Central AP Management for Vigor wireless Access Points
- Free Smart Monitor Network Traffic Analyzer for 50-nodes
- 2 years back to base warranty
Vigor2926 Series is a Dual WANs
broadband security firewall router.
Vigor2926 Series provides reliable broadband connectivity with the multi-WAN
accesses. The two Gigabit Ethernet WAN ports can be operated in failover or load
balancing mode to ensure a steady Internet connection. The two USB ports can
work with 3G/4G/LTE USB modem to add additional wireless Internet access.
Vigor2926 Series also covers comprehensive functions, including VLAN,
Bandwidth Management, Quality of Service, DNS Control, SPI Firewall, Web Content
Filtering, and Central Management solutions to provide a reliable and secure
business network.
WAN Load Balancing & Failover
Vigor2926 Series has two Gigabit Ethernet WAN ports that can be used for any
types of connection, 3G/4G/LTE USB modem can also be attached to the USB ports
of the router, and offer wireless Internet connectivity in case the fixed lines
are not available. All of the WAN interfaces can be configured to be operated in
either Load Balancing mode, which will be active all the time, or in Failover
mode, which will be active only when detecting connection loss or heavy load on
the primary connection.
On Vigor2926 Series, Load Balancing can be either IP-based mode, which will
distribute the packets destined to different IP address across different WANs,
or Session-based mode, which allows the packets of different sessions to take
different paths, which means a multiple-session connection can be established
across multiple WANs, and use multiple WAN’s bandwidth at the same time.
Policy-based Load Balancing is also supported so that you may specify the path
for some certain packets.
To increase network accessibility, Vigor2926 Series also supports High
Availability feature and allows one or more redundant Vigor2926 Series to be
added to the network and operated in standby mode.
Flexible LAN Management
The 4-port Gigabit Ethernet switch on the LAN side provides high-speed
connectivity for the servers and PCs on the local network, and the Virtual LAN
(VLAN) feature allows you to separate the LAN clients into different logical
domains thus to increase the security and network efficiency. Vigor2926 Series
support 802.1Q standard and can build a Tag-based VLAN system with an
802.1Q-support switch, Port-based VLAN is also supported that each LAN port can
be configured as a member of different VLAN and be isolated from each other
without the use of VLAN tag.
Firewall & Security
Vigor2926 Series supports Stateful Packet Inspection (SPI) Firewall and
flexible filtering rules, it can accept or deny packets based on the information
in the packet header (such as source IP, destination IP, protocol, and port
number) or the packet’s application. IP-based restrictions can be set to filter
certain HTTP traffic as well as various application software and help you to
prevent time and network resource wasting on inappropriate network
activities.
With an annual subscription to Cyren Web Content Filtering service, you may
also filter the websites by their categories, and set up restrictions to block
the whole categories of websites (such as Social Networking, Gambling.. etc.)
without the need to specify every site you would like to block. The Cyren
service is constantly updating the categorization, and a free 30-day trial is
included in each new router.
The Vigor2926 Series firewall also includes DoS (Denial of Service) Defense
to protect the network against variants of attacks.
Comprehensive VPN
Vigor2926 Series supports both LAN-to-LAN VPN and Remote Dial-in VPN, up to
50 VPN tunnels can be set up simultaneously. All the industry standard tunneling
protocols are supported, including PPTP, L2TP, IPsec, and GRE, and it’s
compatible with 3rd party VPN devices.
Vigor2926 Series also support SSL VPN – a type of VPN based on the very
common encryption method which is used by all the HTTPS websites. While the
traditional VPN protocols might be filtered by the firewall and NAT of public
networks, SSL VPN will be passed as long as the HTTPS is allowed. DrayTek also
offers free official client App for Windows, iOS, and Android.
VPN Trunking is also supported by Vigor2926 Series, this allows you to
establish two VPN tunnels to the same remote site but through different WAN
interfaces. The two trunking tunnels can be set up in load balancing or failover
mode.
Centralized Management
Vigor2926 Series can be the central management portal for all the Vigor
devices on the same network, including VigorAPs and VigorSwitches, which allows
the administrator to manage all the devices through a single portal. Vigor2926
Series also embeds CVM (Central VPN Management), an easier way for Network
administrator to establish and manage VPN connections between several CPEs (VPN
Client). The router itself supports TR-069 protocol and can be remotely managed
and monitored through the TR-069-based VigorACS system, thus to reduce the need
for on-site technicians.
Specifications
- Hardware Interface
- 2 x 10/100/1000Base-TX, RJ-45 (WAN1/WAN2)
- 4 x 10/100/1000Base-TX LAN, RJ-45 (Configurable Physical DMZ on Port4)
- 2 x Detachable Antennas (n model)
- 4 x Detachable Antennas (ac,Vac Model)
- 2 x USB Host 2.0
- 1 x Factory Reset Button
- 1 x Wireless On/Off/ WPS Button (n/ac/Vac model)
- 2 x FXS and 1 x Life Line Port, RJ11 (Vac Model)
- Temperature
- Operating: 0C~45C
- Storage: -25C~70C
- Humidity: 10%~90% (non-condensing)
- Power Adapter: DC 12V @ 1.5A~2A
- Power Consumption: 19~24 Watt
- Dimension: L241*W165*H44 (mm)
- WAN Protocol
- Ethernet WAN:
- DHCP Client
- Static IP
- PPPoE
- PPTP / L2TP (WAN-2 only)
- 802.1q Multi-VLAN Tagging
- IPv6 Connection Type:
- Dual Stack: PPP, DHCPv6 Client, Static IPv6
- Tunnel Mode: TSPC, AICCU, 6rd, 6in4 Static Tunnel
- USB WAN:
- PPP (3G) / CDC driver (3G)
- Support IPv6 protocol: TSPC/AICCU
- Dual WAN
- Load-Balance / Route Policy
- Outbound policy-based load-balance
- WAN Connection Failover
- Multiple-VLAN
- LAN
- Support IPv6 LAN
- Port-based / Tag-based VLAN
- Bind IP to MAC Address:
- Disable / Enable / Strict Bind
- IP Bind list: 1024 entries
- LAN Port Mirror
- Wired 802.1x
- Web Portal
- Support IP Pool Count more than 253 (up to 1022) for LAN1~3 subnet
- 8 x Multiple Subnet LAN
- Firewall
- DMZ Host: Port-redirection, Open Port, Port Triggering
- User-based / Rule-based Firewall
- Object-based FirewallSPI (Stateful Packet Inspection) (Flow Track)
- DoS Prevention
- Time Schedule Control
- DNS Filter Enhancement
- User Management
- Firewall Wizard Mode and Advanced Mode
- VPN
- Up to 50 VPN Tunnels (including 25 SSL VPN tunnels)
- VPN Wizard
- VPN Trunk with Backup / Load Balance
- Protocol: PPTP, IPsec, L2TP, L2TP over IPsec, GRE over IPSec
- Encryption: MPPE and hardware-based AES/DES/3DES
- Authentication: MD5, SHA-1
- IKE Authentication: Pre-shared Key and Digital Signature (X.509)
- LAN-to-LAN, Teleworker-to-LAN (remote user dial-in)
- DHCP over IPsec
- IPsec NAT-traversal (NAT-T)
- Dead Peer Detection (DPD)
- VPN Pass-through
- mOTP
- Bandwidth Management
- QoS
- Guarantee bandwidth for VoIP
- Class-based bandwidth guarantee by user-defined traffic categories
- DiffServ Code Point classifying
- 4-level priority for each direction (Inbound/Outbound)
- Bandwidth borrowed
- Bndwidth/Session limitation
- Smart Bandwidth Limit
- config by ip range
- Layer-3 (TOS/DSCP) QoS
- Layer-2 (802.1p) QoS
- WAN budget
- Network Feature
- Hotspot Web Portal
- Packet Forwarding Acceleration
- DHCP client/relay/server
- DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125
- IGMP v2/v3
- LAN DNS/DNS Forwarding
- Dynamic DNS
- NTP Client
- Call Scheduling
- RADIUS/TACACS+ Client
- Internal RADIUS Server
- Active Directory/LDAP compatible (client)
- DNS Cache/Proxy and LAN DNS
- UPnP 50 sessions
- Wake on LAN
- Bonjour service
- Routing Protocol:
- Static Routing
- RIP v1/v2
- BGP
- Triple-Play Application
- 6 x Multiple Subnet LAN
- Support Smart Monitor (Up to 30 PCs)
- Central Device Management
- AP Management
- VPN Management
- Switch Management
- External Devices
- CSM (Content Security Management)
- APP Enforcement
- Support APPE Signature Upgrade by license
- URL Content Filter
- Access Control : URL Keyword Blocking (White/Black List)
- Web Feature : Java Applet, Cookies, Active X, Compressed, Executable,
Multimedia File Blocking
- Web Content Filter (support Cyren and BPjM)
- DNS Filter
- USB
- Printer Sharing
- File System
- Support FAT32 File System
- Support FTP Function for File Sharing
- 3.5G (HSDPA) and 4G (LTE) as WAN3/WAN4 by using USB dongle (can support
Dual USB WAN)
- USB Device Status (disk/modem/printer/sensor)
- Support USB Temperature Sensor
- Support file sharing (DrayTeks own SMB protocol stack)
- Network Management
- Web-based User Interface (HTTP/HTTPS)
- CLI (Command Line Interface, Telnet/SSH)
- Administration Access Control
- Configuration Backup/Restore
- Built-in Diagnostic Function
- Firmware Upgrade via TFTP/HTTP/TR-069
- Logging via Syslog
- SNMP v2/v3
- Support SMS/E-mail Alert
- Management Session Time Out
- Two-level Management (Admin/User Mode)
- External device detection (master mode)
- TR-069/TR-104
- Support Multiple-Firmware Upgrade Utility (MFUU)
- Dashboard
- Wireless AP (for n/ac/Vac model)
- 2.4 GHz (for n model)
- 2.4 + 5 GHz (for ac/Vac model)
- Wireless Client List
- Wireless LAN Isolation
- 64/128-bit WEP
- WPA/WPA2
- Hidden SSID
- WPS
- MAC Address Access Control
- Access Point Discovery
- WDS (Wireless Distribution System)
- 802.1x Authentication
- Multiple SSID
- Wireless Rate-control
- WMM
- SSID VLAN Grouping with LAN Port (Port-based VLAN)
- VoIP (for Vac model)
- Protocol: SIP, RTP/RTCP
- 12 SIP Registrars
- Automatic Gain control
- Jitter buffer (180ms)
- Jitter Buffer
- Voice codec: G.711 A/u law, G.723.1, G.726, G.729 A/B, VAD/CNG
- Tone generation and detection: DTMF, dial, busy, ring back, call
progress
- DTMF Tone: Inband, Out band (RFC-2833), SIP Info
- FAX/Modem Support: Tone detection, G.711 Pass-through, T.38 for FAX
- Supplemental Services:
- Call Hold/Retrieve/Waiting
- Call Waiting with Caller ID
- Call Transfer
- Call Forwarding (Always, Busy, No Answer, Busy or No Answer)
- Call Barring (Incoming/Outgoing)
- DND (Do Not Disturb)
- MWI (Message Waiting Indicator) (RFC-3842)
- Hotline
- ZRTP
- PSTN Loop-through When Power Failure
- Dial Plan:
- Phone Book
- Digit Map
- Call Barring
- Regional
