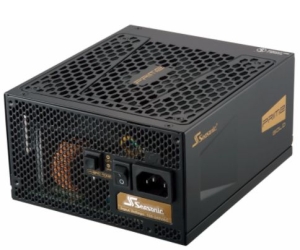

SSR-1000GD | Seasonic 1000W Prime Ultra Gold Power Supply - ATX12V, 80PLUS Gold

Seasonic 1000W Prime Ultra Gold Power Supply - ATX12V, 80PLUS Gold

Features

• High Efficiency, 80 PLUS Gold Certified
• Fully Modular
• Compact ATX Size [140 mm deep] *
• Top-Quality 135 mm Fluid Dynamic Bearing Fan
• Premium Hybrid Fan Control
• Micro Tolerance Load Regulation (MTLR) [0.5 %]
• Super Low Ripple Noise [under 20 mV]
• Cable-free Connection Design
• Gold Plated High Current Terminal (MB, CPU and PCIe)
• Multi-GPU Technology Support

Overview

NEW IN PRIME ULTRA

Seasonic has included a PSU tester in the box that will let consumers perform a quick and easy jump start on the power supply. Each PRIME Ultra Series power supply will also ship with a SATA 3.3 adapter to support the “Power Disable� (PWDIS) feature of the newer, high-capacity hard drives. The inline capacitors on the cables were removed, which takes away the bulkiness inside the system. To maximize flexibility, the 180-degree SATA connectors ensuring more flexibility and easier installation.

80 PLUS® GOLD

The PRIME Gold Series achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.

MICRO TOLERANCE LOAD REGULATION

Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

PREMIUM HYBRID FAN CONTROL

Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.

FLUID DYNAMIC FAN BEARING

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

HOW IT WORKS

When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

CABLE-FREE CONNECTION DESIGN

Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.
