All stock codes associated to this product
DIS100G5PSW, DIS-100G-5PSW, 16DIS100G5PSW, DL15621, 4132660, DLDIS100G5PSW, 790069437885

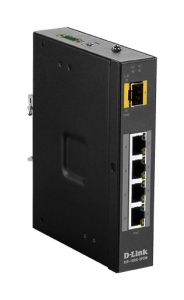

D-Link DIS-100G-5PSW 5-Port Industrial Gigabit Unmanaged PoE Switch
w. SFP Slot
Features
- 4 x 100/1000BaseT PoE ports, 1 x 100/1000BaseSFP slots
- 120 W PoE Budget
- Unmanaged plug-and-play simplicity
- Withstands extreme temperatures
- Certified for vibration, shock, free-fall, EMC
Unmanaged Plug and Play with SFP and PoE
Plug in and go. The DIS-100G-5PSW reliably forwards Ethernet frames.
Gigabit Connectivity with PoE and SFP slots
Designed with 4 x 100/1000Base-T PoE ports and 1 x 100/1000Base SFP slot to
suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic
compatibility to maximise network uptime in a variety of deployment
environments, including smart city surveillance, factory automation, and outdoor
wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in
temperatures from -40C to +75C, and can cold start from -40C.
Strong Build
The tough housing has been created to keep your network protected and
reliably rugged. Thats why every DIS-switch comes with a 5-year D-Link warranty.
PoE Support
With its 120 W PoE power budget, its been designed to supply data and PoE
power to compliant devices, which removes the need for unnecessary plugs and
cables and reduces deployment time and effort.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also
supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the
rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x
107 mm.
Specifications
|
Ethernet |
|
|
Ethernet
Interfaces |
|
|
|
4
x 100/1000BaseT PoE ports |
|
|
1
x 100/1000BaseSFP slots |
|
Operating
Mode |
Store
and forward, L2 wire speed/non blocking switching
engine |
|
MAC
Addresses |
2K |
|
Jumbo
Frames |
9K
Bytes |
|
Flow
Control |
IEEE
802.3x (Full Duplex) and Back Pressure (Half Duplex) |
|
QoS |
IEEE
802.1p, 4 queues per port |
|
Traffic
Shaper |
Port based
Port shaping |
|
Storm
Control |
Multicast/Broadcast/Flooding
Storm Control per system basis enable/disable |
|
|
|
|
Copper
RJ45 Ports |
|
|
Speed |
10/100/1000
Mbps |
|
MDI/MDIX
Auto Crossover |
Support
straight or cross wired cables |
|
Auto Negotiating |
10/100/1000
Mbps speed auto negotitation; Full and half duplex |
|
|
|
|
PoE |
|
|
PoE
Standard |
802.3af |
|
|
802.3at |
|
PoE
Power Budget |
120W |
|
|
|
|
SFP/SFP+
(pluggable) Ports |
|
|
Port
Types Supported |
SFP
(pluggable) Ports 100/1000BaseSFP slot |
|
|
Support
100FX SFP transceiver |
|
|
Support
100/1000BaseT SFP transceiver |
|
Fibre
Port Connector |
LC
typically for fibre |
|
|
|
|
Power |
|
|
Power
Input |
Redundant
Input Terminals |
|
|
Reverse
power protection |
|
Input
Voltage Range |
12 58
VDC |
|
|
54
to 58V for PoE+ |
|
|
48
to 58V for PoE |
|
Power
Consumption |
Maximum
120.2W |
|
Compatible
Power Supplies |
DIS N240 48 |
|
|
DIS N480 48 |
|
|
|
|
Idicators |
|
|
Power
Status |
Indication
of power input status |
|
Ethernet
Port |
Link
& Speed |
|
PoE
Status |
PoE
power status indication |
|
|
|
|
Environmental
and Compliances |
|
|
Operating
Temperature Range |
40
to +75°C |
|
Storage
Temperature Range |
40
to +85°C |
|
Humidity
(Non Condensing) |
5
to 95% RH |
|
Vibration,
Shock, & Free Fall |
Vibration:
IEC60068 2 6 |
|
|
Shock:
IEC60068 2 27 |
|
|
Free
Fall: IEC60068 2 32 |
|
Certification
Compliance |
UL61010 1
compliance |
|
|
UL
C1D2 |
|
|
CE |
|
|
FCC |
|
EMC |
FCC
Part 15, EN 61000 6 2, EN 61000 6 4, EN 61000 4 2, 3, 4, 5, 6 (Level
3) |
|
RoHS
and WEEE |
RoHS
(Pb free) and WEEE compliant |
|
MTBF |
>25
Years |
|
|
|
|
Mechanical |
|
|
Ingress
Protection |
IP30 |
|
Installation
Options |
DIN Rail
mounting |
|
|
Wall
mounting |
|
Dimensions |
|
|
|
139
x 29 x 107 mm |
|
Weight |
0.375
kg |
