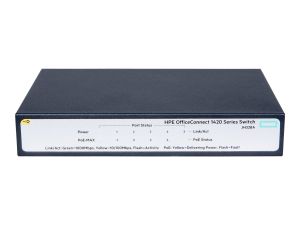

HPE JH328A OfficeConnect 1420 5G PoE+ Gigabit Switch - 5-Port 10/100/1000 (Only 4 Ports are POE), Unmanaged

GENERAL
Device TypeSwitch - 5 ports - unmanaged
Enclosure TypeDesktop
SubtypeGigabit Ethernet
Ports5 x 10/100/1000
Power Over Ethernet (PoE)PoE+
PoE Budget32 W
PerformanceSwitching capacity: 10 Gbps Throughput (64-byte packet size): 7.4 Mpps Latency (100 Mbps): 3 s Latency (1000Base-T): 2.6 s
MAC Address Table Size2048 entries
Jumbo Frame Support9216 bytes
FeaturesFlow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, Quality of Service (QoS), fanless, DiffServ Code Point (DSCP) support
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
Flash Memory1 MB
EXPANSION / CONNECTIVITY
Interfaces5 x 1000Base-T RJ-45
POWER
Power DeviceExternal power adapter
Voltage RequiredAC 120/230 V (50/60 Hz)
Electric Current Required300 mA
Power Consumption Operational40 Watt
MISCELLANEOUS
Compliant StandardsPlug and Play, CISPR 24, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN55024, UL 60950, CISPR 22, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A, CAN/CSA C22.2 No. 60950-1-03
DIMENSIONS &WEIGHT
Width10.49 cm
Depth15.77 cm
Height2.69 cm
Weight0.5 kg
MANUFACTURER WARRANTY
Service &SupportLimited warranty - 3 years
ENVIRONMENTAL PARAMETERS
Min Operating Temperature0 C
Max Operating Temperature40 C
Humidity Range Operating15 - 95% (non-condensing)
Min Storage Temperature-40 C
Max Storage Temperature70 C
Humidity Range Storage15 - 95% (non-condensing)
