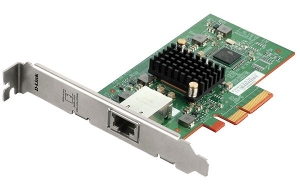

D-Link DXE-810T 1-Port 10 Gigabit 10GBASE-T PCIe Ethernet Adapter - PCIex4

D-Link DXE-810T 1-Port 10 Gigabit 10GBASE-T PCIe Ethernet Adapter - PCIex4

Features

• 10-Gigabit Ethernet over Copper 10GBASE-T RJ45
• 802.1Q VLAN Tagging
• 802.3x Flow Control
• Jumbo Frame Support (up to 16K bytes)
• TCP/UDP/IP Checksum Offloading
• Low profile bracket included

10 Gigabit 10GBASE-T PCIe Ethernet Adapter

Add 10 Gigabit connectivity to your server or high-powered workstation with the D-Link DXE-810T 10 Gigabit Ethernet PCIe Adapter. It is a high performance network adapter which combines 10GBASE-T with high-speed PCI Express 2.0 x8 interface.

Advanced Features and Security

The adapter features onboard screening of 802.1Q VLAN tagged Ethernet frames, allowing you to assign multiple subnets to each server and isolate devices within each VLAN from the rest of the network for better traffic control and security. With support for advanced features such as 802.3x flow control, jumbo frames, and SNMP for network management, the DXE-810T can easily interoperate with your current networking equipment.

Performance and Reliability

The DXE-810T increases network throughout by utilising PCI Express bus architecture. With Smart Load Balancing multiple DXE-810T adapters can be configured to work as a team, sharing traffic and ensuring data reliability.

Checksum Offloading

The DXE-810T features TCP, UDP, and IP checksum offloading functionality, which transfers the checksum processing tasks from the computers CPU to the network card.

Specifications

• Single Port 10GBASE-T RJ-45 PCI Express Adapter

• IEEE 802.1Q VLAN tagging
• IEEE 802.3x flow control
• PCI Express x4 2.0, 5 GT/s compliant
• IEEE 802.3an 10GBASE-T
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3u 100BASE-TX

• 10GBASE-T
• 100M with Cat 6A or higher UTP
• 50M with Cat 6 UTP
• 100/1000BASE-T
• 100M with Cat 5 or higher UTP

• Maximum Power Consumption: 8.04 W
• Input Voltage: 3.3 V

• Auto mode (support 100 Mbps)
• 1 Gbps Full Duplex
• 10 Gbps Full Duplex

• Full Duplex (20 Gbps)

• PCI Express x4/x8/x16 slot

• 16 KB Jumbo Frame
• 802.1Q VLAN tagging
• Simple Network Management Protocol Agent

• Windows 8.1, 8, 7
• Windows Server 2008R2, 2012, and 2012R2
• Windows Hyper-V
• Linux kernel 2.6.x - 3.x.x
• VMWare ESXi 4.x - 5.x

• Speed/Link
• Activity

• 133.3 mm x 121.9 mm x 21.6 mm (5.25 x 4.8 x 0.85

• Storage: -20 to 70 C (-4 to 158 F)

• Operating: 10% to 90% non-condensing
• Storage: 10% to 90% non-condensing

• CE
• FCC
• C-Tick
• BSMI (DXE-810S only)
