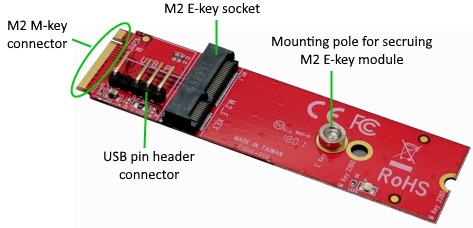

With this M2 E-key adapter, any M2 E key and A-E key module such as WiFi/Bluetooth module can now be easily added to a computer via an M2 M key socket. Comes with USB pin header to connect an M.2 E-key module that requires USB host connection, This adapter is a perfect and economical solution to add WiFi/Bluetooth capability or any M.2 E-Key device to any system equipped with the M2 M key socket.

Example of an M.2 E-key WIFI/Bluetooth module ( for illustration only and is not included in the PCIe M2 E-key adapter)


  • Add WiFi, Bluetooth capability to any Desktop
  • Support 1620, 2230 and 3030 M2 E key and A-E key WiFi, Bluetooth and Dual band WiFi / Bluetooth* modules
  • M2 2230-D3-E E-key socketonboard
  • USB Pin header connector for host connection (required by most Bluetooth modules)
  • Install into system equipped with the M2 M key socket
  • OS independent, supportsall versions of Windows, Mac, Linux

Note: *The WiFi / Bluetooth module requires antenna connection to function properly. This adapter does not include any antenna. Most Bluetooth module requires the USB connection

  • M2 2230-D3-E E-key socket
  • Connect to USB host via onboard USB pin header connector
  • Dimension (L x W x H): ~ 80 x 22 x 5 mm (3.15 x 0.87 x 0.2 in.)
  • Weight: ~ 6g (0.2 oz)
  • Operating temperature range: -40 C to +80 C
  • Operating humidity range: 5% to 90%
  • Storage temperature range: -40 C to +85 C
  • Storage humidity range: 5% - 95% (non condensing)
  • 1 year warranty
  • RoHS Compliant





No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.
