All stock codes associated to this product
DSLAC55U, DSL-AC55U, 4712900818116, 4718017304696

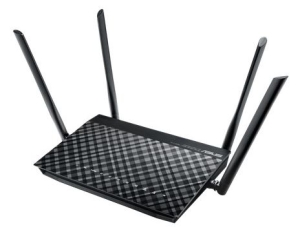

Asus DSL-AC55U AC1200 Dual Band WiFi ADSL/VDSL Modem Router
Features
- Concurrent Dual Band: 867Mbps on 5GHz and 300Mbps on 2.4GHz
- Two WAN ports for DSL and Ethernet offer double the choice – wireless
router or DSL modem
- Compatible with VDSL2, ADSL2/2+, ADSL, fiber and cable services for
complete future-proofing
- Gigabit Ethernet ports for fast and reliable internet performance
- Multi-purpose USB port supports file sharing, printer sharing, media
streaming and 3G/4G support
- VDSL/ADSL WAN multi service for IPTV support
- PPTP/Open VPN server and VPN client support
- Download Master and enhanced media server let you download and stream
anywhere
- ASUS AiCloud lets you access, sync, share and stream data anywhere
AC1200 Dual Band WiFi ADSL/VDSL Modem Router, supporting AiProtection
network security powered by Trend Micro and Parental Controls
Future-proofed versatility with 802.11ac wireless speeds
The ASUS DSL-AC55U is a ADSL/VDSL 802.11ac Wi-Fi modem router, with combined
dual-band data rates of up to 1167Mbps. On the 5GHz band, 802.11ac gives 867Mbps
wireless data rates, while 2.4 GHz 802.11n performance supports 300Mbps.
Compatible with ADSL2/2+, ADSL, VDSL2, fiber and cable services, the top
specification completes future-proofing.
ASUS AiRadar enhances the Wi-Fi stability and improves coverage up to 150%*.
Most importantly, the universal beamforming not only works on 802.11ac clients,
but also 802.11a/b/g/n clients. Equipped with powerful hardware NAT acceleration
and built-in Gigabit Ethernet, the DSL-AC55U gives you full Gigabit internet
performance, with a WAN-to-LAN throughput performance of over 900 Mbps.
USB 2.0 port allows the DSL-AC55U to share printer and scanner over a
network, and it can also operate as high-speed NAS (Network Attached Storage)
device when external storage is connected.
The easy-to-use ASUSWRT graphical user interface unlocks the power of
DSL-AC55U giving robust control to optimize your network for you. 30-second
setup and easy traffic management means even network newbies can enjoy its
sophisticated features, while power users will love its IPv6 support, multiple
wireless SSIDs and encrypted VPN access.
AiProtection Pro
Commercial-Grade Security for Family
All your family members, young or old, are exposed to the dangers of internet
every single moment they're online. Disguised cyber threats can sneak in to
steal your private data, or your kids may accidentally encounter inappropriate
content during their ever-growing screen time. DSL-AC55U includes Advanced
Parental Controls to give you total peace of mind, with AiProtection Pro -
commercial grade security for your home network and comprehensive, easy control
of the online experience for each family member and each device, all via the
mobile app.
No Subscription Fee
Some routers only offer 3 years of protection, ASUS AiProtection has you
covered for the life of your product
Block Access to Malicious Websites
AiProtection uses Trend Micro's official database to identify and block known
malicious sites, preventing infection even before you click.
Protection Against Attacks
Intrusion Prevention System (IPS) blocks all common internet-based attacks.
Infection Detection and Blocking
Even if an already-infected device is connected to DSL-AC55U, AiProtection
prevents any personal data on the device from being compromised.
Parental Controls
Keep your kids safe when they explore the internet. The state-of-the-art
parental controls in AiProtection integrate all the management functions you
need in one place and the intuitive interface makes it super easy to view and
apply security settings to all the devices owned by individual family members.
Check the box when editing a device and profile, and the preset automatically
applies filters for inappropriate content to all their devices.
Reserve valuable family time or help your children develop responsible
behavior by selecting scheduled time periods to block internet access on
specific devices.
Block specific categories of mobile apps and websites, and apply these
settings to all devices belonging to individual family members. The advanced
filtering integrates Trend Micros Deep Packet Inspection (DPI) engine to filter
not only by website URL, but also by the internet packets themselves, which
means it filters content viewed not only in a web browser, but also within
mobile apps on your devices.
Enhanced signal range and stability
ASUS AiRadar intelligently improves wireless connections by using exclusive
ASUS RF fine-tuning. This ensures extended coverage, increases dynamic data
speed, and enhances stability.
Total flexibility with DSL, Ethernet or 3G/4G LTE Internet
connections
DSL-AC55U has multiple ways to connect to the Internet, with a choice of DSL,
Ethernet or 3G/4G LTE*. You can use DSL-AC55U as a DSL modem Wi-Fi router or a
standalone Wi-Fi router according to your needs. And with the ability to switch
instantly between connections if one fails (and switch back again when it’s
fixed) or combine multiple connections for more bandwidth, it’s perfect for
reliable, always-on internet connectivity. *Requires compatible USB dongle
Gigabit Internet browsing with hardware NAT
Equipped with a powerful hardware NAT acceleration engine and built-in
Gigabit Ethernet, the DSL-AC55U gives you full Gigabit performance. Its
WAN-to-LAN throughput performance is over 900 Mbps, which is more than 4.5 times
that of traditional software-based NAT Gigabit routers. This reduces the
possibility of bottlenecks on fast internet connections.
Add external storage, printers, and other devices to your network
Make DSL-AC55U your media and device center. With built-in two USB ports,
connect external storage drives, printers, scanners and many other USB-enabled
devices to share with your networked PCs. Having your devices networked, lets
you access them easier than ever before.
Robust control and optimization with DSL ASUSWRT
With the DSL-ASUSWRT dashboard UI, setup, monitor, and control network
applications all in one intuitive area. The whole-new dashboard interface lets
you manage all clients and settings via a single graphical interface, and
provides 1-click updates.
ASUS AiCloud – Your world on demand
ASUS AiCloud keeps you connected to your data wherever and whenever you have
an internet connection. It links your home network and online web storage
service and lets you access it through the AiCloud mobile app on your iOS or
Android smartphone or through a personalized URL in a web browser.
Download and stream anywhere
Download Master and enhanced media server let you download and play
multimedia files stored on router-attached USB storage on a wide range of
compatible devices such as PC, pad, PS4, Xbox, and smart TV. Download Master can
also download files while your PC is turned off, and allows you to manage and
monitor download status remotely.
Better online multitasking at up to 300,000 sessions
Massive online multitasking at up 300,000 concurrent data sessions gives you
20 times the capacity of mainstream routers, allowing for great performance with
no slowdown even during heavy traffic sessions. Multiple downloads occur at the
same time to create a smoother user experience. More data sessions translate
into quicker and buffer-less HD streaming plus lag-free online gaming even while
you download content, so you can do more without compromising your online
lifestyle.
VPN server and client for encrypted remote connection
With the virtual private network (VPN) server and VPN client, you can access
your home network remotely or surf the internet with encryption, no need for
paid VPN services or a dedicated VPN server.
Specifications
Network Standard |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac,
IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4,
IPv6 |
Product Segment |
AC1200 enhanced AC performance : 300+867 Mbps |
Wi-Fi Data Rate |
802.11a : 6,9,12,18,24,36,48,54 Mbps |
|
802.11b : 1, 2, 5.5, 11 Mbps |
|
802.11g : 6,9,12,18,24,36,48,54 Mbps |
|
802.11n : up to 300 Mbps |
|
802.11ac : up to 867 Mbps |
xDSL Data Rate |
VDSL2/ADSL2+/ADSL2/ADSL multimode |
|
Support Annex A/B/I/J/L/M |
|
Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and
30a |
|
VDSL2 interface compliance with ITU-T G.993.2 |
|
ITU-T G.992.1 (G.dmt), Annex A, and B Compliant |
|
ITU-T G.992.2 (G.lite), Annex A, and B Compliant |
|
ANSI T1.413 Compliant |
|
ITU-T G.992.3 (ADSL2) Compliant, Annex A, B, L, and
M |
|
ITU-T G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and
M |
|
ITU-T G.993.2 Compliant, Annex A, B |
|
ITU-T G.993.5 (Vectoring) |
|
ITU-T G.998.4 (G.inp) Improved impulse noise
protection |
|
ATM and PTM (dual-priority) |
|
VDSL2 Upstream: 150Mbps, Downstream: 200Mbps |
|
ADSL2+ Upstream: 3.3Mbps, Downstream: 24Mbps |
|
ADSL2 Upstream: 3.5Mbps, Downstream: 12Mbps |
Features |
DHCP server, firewall/NAT, DynDNS |
|
VPN server(PPTP/OpenVPN) |
|
VPN client(PPTP/L2TP/OpenVPN) |
|
Dual WAN Fail over/Fail back/Load balance |
|
Traffic monitor/Quality of Service (QoS) |
|
DSL spectrum |
|
IPTV(VDSL/ADSL WAN) |
|
DSL feedback mechanism |
|
Save/Restore configuration file |
|
WiFi Bandwidth Limiter |
Antenna |
External antenna x 4 |
LED Indicator |
Power, Internet, LAN x 4, xDSL, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, USB x
1 |
Button |
WPS Button, Reset Button, Power Button, Wireless on/off
Button |
Ports |
1 x RJ11 for xDSL |
|
4 x RJ45 10/100/1000 BaseT for LAN |
|
1 x RJ45 10/100/1000 BaseT for WAN |
USB Ports |
USB 2.0 x 1 |
USB Applications |
Printer Server |
|
FTP Server |
|
Download Master |
|
3G/4G sharing |
Operating Frequency |
2.4GHz |
|
5GHz |
Operation Channel |
13 Europe (ETSI) |
Memory |
128MB NAND flash/128MB DDR3 |
|
|
Output Power |
|
ac mode |
17 dBm |
b mode |
20.5 dBm |
g mode |
18.5 dBm |
n mode |
17 dBm |
a/n mode |
19 dBm |
|
|
Security |
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK |
Management |
Web-based GUI configuration |
|
Firmware upgraded, configuration data uploaded and downloaded via
Web-based GUI |
|
UPnP IGD 1.0 |
|
Auto VPI/VCI detection |
|
Configuration backup and restore |
|
Diagnostics |
|
Log & Trace function |
Utilities |
- Download master: |
|
Support BT, NZB, HTTP, ED2K |
|
Support encryption, DHT, PEX and magnet link |
|
Upload and download bandwidth control |
|
Download scheduling |
|
- Media server: |
|
Image: JPEG |
|
Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg |
|
Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv,
mov |
|
- Printer Server: |
|
Multifunctional printer support(Windows only) |
|
LPR protocol support |
VPN Support |
IPSec Pass-Through |
|
PPTP Pass-Through |
|
L2TP Pass-Through |
|
PPTP server |
|
OpenVPN server |
|
PPTP client |
|
L2TP client |
|
OpenVPN client |
|
|
Power Adapter |
|
AC Input |
110 ~240 V(50~60HZ) |
DC Output |
12 V/1.5 A |
Power Consumption |
18 W Max. |
|
|
Certificates |
CE, Telepermit, RCM |
Dimensions |
20.7 x 14.9 x 3.6 ~ cm (WxDxH) (Without Bezel) |
Weight |
360 g (Device Only) |
OS Support |
Windows® 10 |
|
Windows® 8.1 |
|
Windows® 8 |
|
Windows® 7 |
|
Windows® Vista |
|
Windows® 2000 |
|
Windows® XP |
|
Mac OS X 10.1 |
|
Mac OS X 10.4 |
|
Mac OS X 10.5 |
|
Mac OS X 10.6 |
|
Mac OS X 10.7 |
|
Mac OS X 10.8 |
Package Content |
DSL-AC55U Dual-band 802.11ac VDSL/ADSL Modem
Router |
|
RJ-45 cable |
|
RJ-11 cable |
|
Support CD(User manual and utility) |
|
Power adapter |
|
Warranty card |
|
Quick start guide |
|
Splitter (varies with
regions) |
